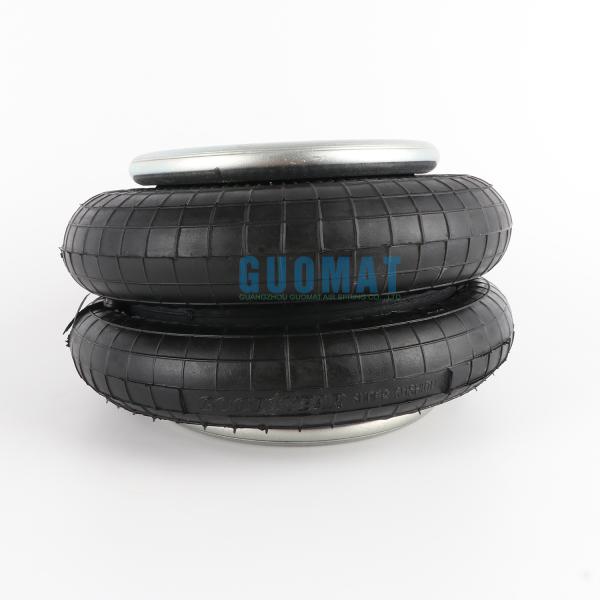

Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absor
Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absor
Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absor
Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absor
Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absor
Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absor
Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absor
Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absor
Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absor
Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absor
Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absor
Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absor
Specifications
Brand Name :
Goodyear
Model Number :
2B9-200
Certification :
ISO/TS16949:2009
Place of Origin :
Mexico
MOQ :
5pcs
Price :
USD99.9-199.9/PC
Payment Terms :
L/C, T/T, Western Union Or Others
Supply Ability :
1000PCS/Week
Delivery Time :
3-7 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Car Make :
All
Brand :
Goodyear
N.W. :
3.5 Kg
Pressure Ability :
0.2-0.8 M PA
Maximum Diameter :
251 mm
Transport Package :
Cartons
Specification :
24*24*24 cm
Trademark :
Goodyear
Warranty :
One Year
Type :
Gas-Filled
Description
Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absorbers

Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 7.48 kilograms
Package size: 20.25 x 12.33 x 7.26 cm
Model: 2B9-200


2B9-200 Goodyear Technical parameters

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm

Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 44.5 mm

Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm

Rubber Bellows
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter : 224 mm
The Working Stroke : MIN 75 mm to MAX 260 mm
Maximum Height : 274 mm
Minimum Height :95mm
Stroke Height : 179mm

Bumper block / Buffer block
Without Bumper Block

Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop


2B9-200 Cross others OEM
OEM Reference OEM Reference
Granning: 1371 Taurus: AS218-6910
Triangle Spring: 4320 Dallas Spring: AS6910
Fire stone air spring: 6910 Sirco: AS-6910
Conti Tech: 64267 Midland/Haldex: CS209200
R & S Truck: 1027405 Euclid/Meritor Aftermarket: E-FS6910
Ridewell: 1003586910C Conti Tech: FD200-19320
Batco: 10-96910 Euclid/Meritor Aftermarket: FS6910
Reyco: 23704-01 BWP: M-3501
Hendrickson: 45843-3 HD America: PMABG-6910B
Navistar/IHC: 554783C1 Ridewell: S4512C
UCF/Impex: AB-2B9-200 Leland: SC201
Automann: ABSP2B12R-6910 Leland: SC2011
Watson & Chalin: AS0001


Goodyear #: 2B9-200
Bellows type: double
Ultraman Bellows #: SP2B12R
Flint Bellow #: 20F is 20
Goodyear Bellows #: 578-92-3-202
Contitech bellows #: FD 200-19
Triangle bellows #: 6325
Base plate / neutron type:
Number of top plate holes / studs: 3
Top plate diameter: 6.4 inch 162.56 mm
Top plate C to C diameter: 3.5 inch 88.9 mm
Base plate hole bolt Qyt:
Base plate diameter: 6.4 inch 162.56 mm
Base plate C to C diameter: 3.5 inch 88.9 mm
Base plate part number:
Base plate alignment: parallel
Bumper: no
bracket:
Minimum height: 3.2 3.2 inch 81.28 mm
Maximum height: 10.8 10.8 inch 274.32 mm


Bulk product pictures of Goodyear Air Spring Original 2b9-200 :

Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absor
Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absor


Details pictures of Goodyear Air Spring Original 2b9-200:

Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absor
Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absor
Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absor Goodyear Air Spring Original 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155, 2b9-200, 2b9-202 Shock Absor
