Specifications
Brand Name :
Goodyear
Model Number :
2B6-535
Certification :
ISO/TS16949:2009
Place of Origin :
Mexico
MOQ :
5pcs
Price :
USD99.9-199.9/PC
Payment Terms :
L/C, T/T, Or Others
Supply Ability :
1000PCS/Week
Delivery Time :
3-7 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Type :
Suspension Spring
N.W. :
4.5 Kg
Pressure Ability :
0.2-0.8 M PA
Screw Center Distance :
70 mm
Specification :
24*24*22 cm
Trademark :
Goodyear
Origin :
Mexico
Material :
Rubber and Aluminum
Description

2B6-535 Goodyear Air Spring Original Imported from USA Rubber Suspension Air Spring Bellows Number 579-92-3-515

Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 3.5 kilograms
Package size: 24*24*24 CM
Roof hole / stud: 3
Floor hole / stud: 2
Top plate diameter: 4.15
Base plate diameter: 4.15
Folding height: 2.8
Flexible members: 579-92-3-515
piston:
Piston type:-
Goodyear Trim: 2B6535

Refer to CONTITECH FD110-15766 / FD110-15 766

2B6-535 Goodyear Technical parameters

Nut / Blind Nut

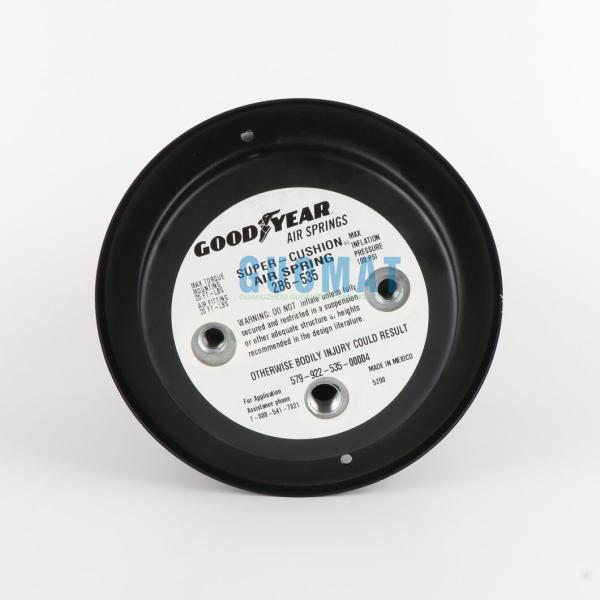

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 70 mm /2.75 inch

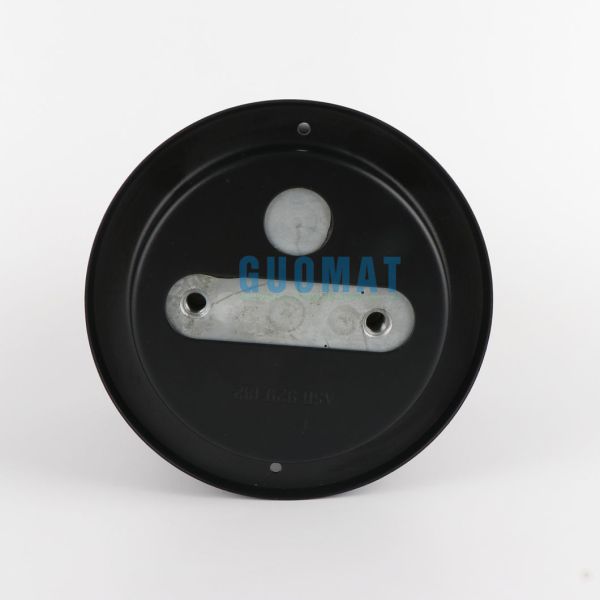

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 70 mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 35 mm

Cover Plate

Top Cover Plate Diameter: 105 mm

Bottom Cover Plate Diameter: 105 mm

Rubber Bellows

Rubber Bellows MAX Diameter: 178 mm

Rubber Bellows Natural Diameter :150 mm

The Working Stroke : MIN 71 mm to MAX 231 mm

Maximum Height : 231 mm

Minimum Height :71mm

Stroke Height : 160mm

Max OD @ 100 psi (Inches):178mm


Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

  • Bolt or Stud 1/2-12 or 1/2-20
  • Air Fitting-1/4 NPTF
  • Stud-3/4-10
  • Tapped hole on top retainers 3/8-16,on pistons-1/2-13
  • Air Fitting-1/2 NPTF or 3/8 NPTF
  • Combination strud air fitting-stud-3/4-16,air fitting-1/4 NPTF

  • Long, trouble-free service, continuously level hauling, and a quiet, cushioned ride
  • Long-lasting use on nearly all truck and trailer air suspensions
  • Absorbs road shock, helping tractors and drills last longer
  • Reduces vibration and driver fatigue
