Industrial Air Spring Firestone W01-358-7808 S13157 For Electronic Equipment
Industrial Air Spring Firestone W01-358-7808 S13157 For Electronic Equipment
Industrial Air Spring Firestone W01-358-7808 S13157 For Electronic Equipment
Industrial Air Spring Firestone W01-358-7808 S13157 For Electronic Equipment
Industrial Air Spring Firestone W01-358-7808 S13157 For Electronic Equipment
Industrial Air Spring Firestone W01-358-7808 S13157 For Electronic Equipment
Industrial Air Spring Firestone W01-358-7808 S13157 For Electronic Equipment
Industrial Air Spring Firestone W01-358-7808 S13157 For Electronic Equipment
Industrial Air Spring Firestone W01-358-7808 S13157 For Electronic Equipment
Industrial Air Spring Firestone W01-358-7808 S13157 For Electronic Equipment
Specifications
Brand Name :
GUOMAT
Model Number :
3B7808
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
MOQ :
5
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Bellow Structure :
Triple Convoluted
Quality :
100% Tested
Max Diameter :
356mm
Manufacturer :
GUOMAT
OEM Number :
Contitech FD 330-22
Air Hole :
1/4N[T
Working Temperature :
-40℃+70℃
Description

Industrial Air Spring Firestone W01-358-7808 S13157 For Electronic Equipment

Product Overview

Air springs are used to resiliently attach machines and devices that generate shocks and vibrations transmitted through the foundation to the environment (eg textile looms, conveyors, impact hammers, forging presses, etc.). They are perfect for isolating laboratory instruments against vibrations. They can also be used to suspend truck trailers and caravans. They are used in pneumatic lifts, e.g. in car repair shops. Operation as a single linear air motor is also a common application.

Air Spring Technical Data

♦Cover Plate

Top Cover Plate Diameter:289mm

Bottom Cover Plate Diameter: 289 mm

♦Gas Hole/Air Inlet/Air Fitting

Gas Hole/Air Inlet:1/4NPT

♦Nut/Blind Nut

Top Cover Plate Screw (Nut) Tooth :4X3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth :4X3/8-16UNC

Screw Center Distance of Top Cover Plate : 158.8 mm

Screw Center Distance of Bottom Cover Plate : 158.8 mm

♦Rubber Bellows

Rubber Bellows MAX Diameter: 356 mm

The Working Stroke : 282mm

Cross References

Fire-stone

W01-358-7808, W01 358 7808, W013587808

WO1-358-7808, WO1 358 7808, WO13587808

W01-358-7313, W01 358 7313, W013587313

WO1-358-7313, WO1 358 7313, WO13587313
Contitech

FD 330-22 364, FD 33022 364, FD 330 22 364

FD330-22 364, FD33022 364, FD330 22 364
Goodyear

2B12-313, 2B12313, 2B12 313

2B12-459, 2B12459, 2B12 459, 578933350
Triangle 6319, 4336
Airkraft 11506, 3B-356, 3B356, 3B 356
Brake & Wheel M3533
EI Ride 8030170
Dayton 3547808
Leland Sc2031
Navistar 554801C1
Hendrickson S13157
Ridewell 1003587808C
SAF Holland 57007808
Truck stell 63640
Peerless 55000030

Product Applications

  • Scissor lift
  • Hopper vibration and damping
  • Mechanical handling stop
  • Quick lock device
  • Reel tensioning
  • Machine isolation
  • Direct force
  • Impact absorbtion
  • Roller tensioning
  • Platform lift
  • Short stroke mechanical linkage
  • Hot foll stamping press

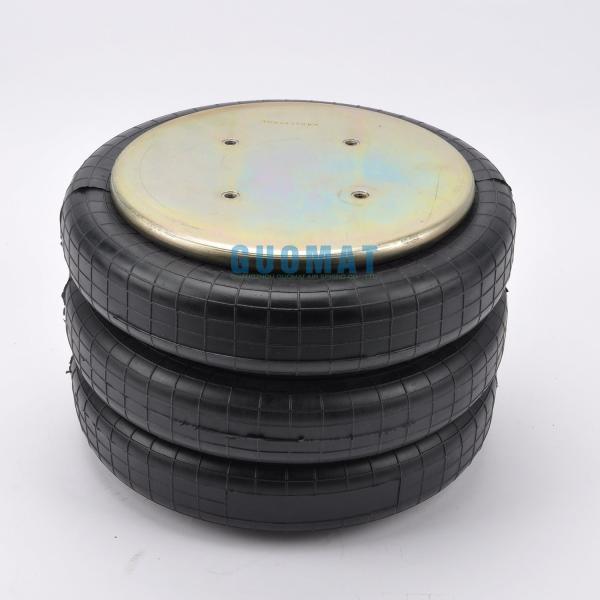

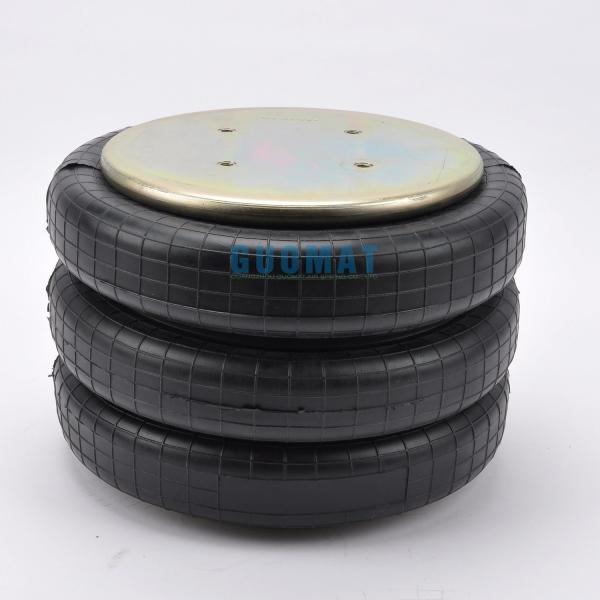

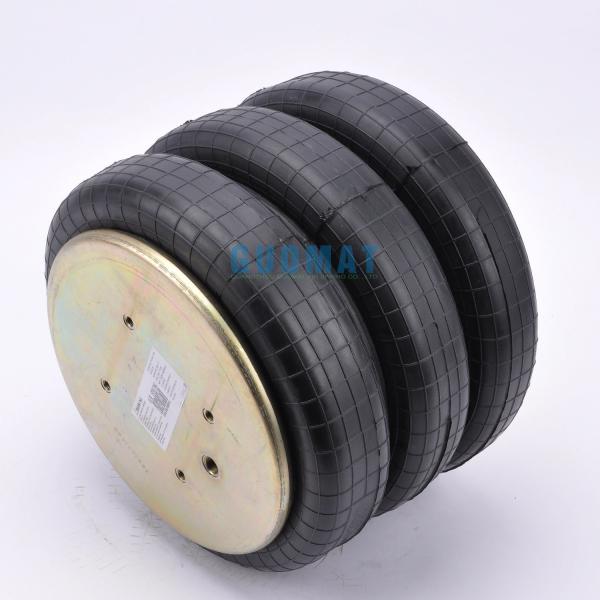

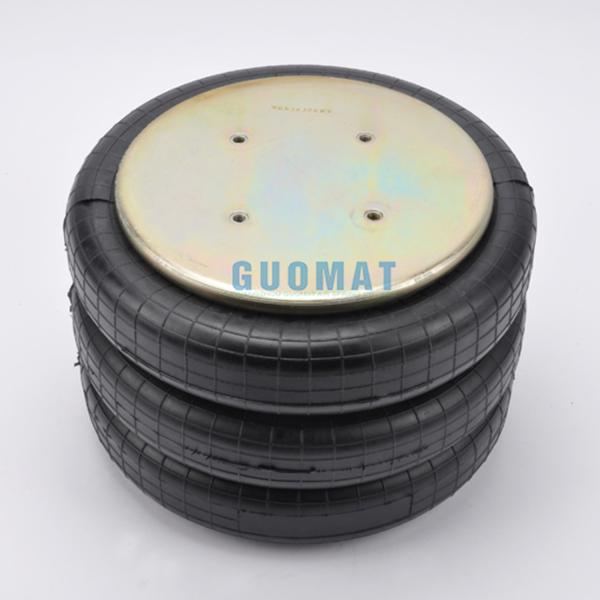

Product Pictures

Industrial Air Spring Firestone W01-358-7808 S13157 For Electronic Equipment


Industrial Air Spring Firestone W01-358-7808 S13157 For Electronic EquipmentIndustrial Air Spring Firestone W01-358-7808 S13157 For Electronic EquipmentIndustrial Air Spring Firestone W01-358-7808 S13157 For Electronic EquipmentIndustrial Air Spring Firestone W01-358-7808 S13157 For Electronic EquipmentIndustrial Air Spring Firestone W01-358-7808 S13157 For Electronic EquipmentIndustrial Air Spring Firestone W01-358-7808 S13157 For Electronic EquipmentIndustrial Air Spring Firestone W01-358-7808 S13157 For Electronic Equipment
