Specifications
Brand Name :
GUOMAT
Model Number :
3B8006
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
MOQ :
5
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Structure :
Triple Convoluted
Quality :
100 % Tested
Fuction :
Reduce Shock
Trademark :
GUOMAT
OEM NO. :
Load Guard SC2132
Air Inlet :
1/4NPTF
Sample :
Available | Customized Request
Description

W01-358-8006 Pneumatic Bellow by Firestone Air Spring Full Stroke 13.2 Inches

Detailed Technical Parameters: 3B8006

The top/bottom cover plate screw: 2×M10×1.5

The screw center distance of the Top cover plate: 157.5mm

The screw center distance of the bottom cover plate: 157.5 mm

Screw And Gas Hole Distance of Top Cover Plate:73mm

Top plate diameter (width): 231 mm

Diameter (width) of the bottom cover plate: 231 mm

Rubber Bellows MAX Diameter: 295mm

The Working Stroke: 297mm

Bumper block/bumper block

Without bumper block

Belt loop/Belt loop

With belt loop: Two belt loop

Min. pressure: 0 bar

Return force to min.height: ≤400N

Overall weight with clamped plates: 5.9kg

Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
Height H[mm] 380 8.8 11.9 15.1 18.4 21.7 25.1 23.6
340 10.7 14.4 18.2 22.0 25.9 29.8 21.6
300 12.3 16.5 20.8 25.1 29.5 33.7 19.2
260 13.7 18.2 22.9 27.6 32.3 36.9 16.6
220 14.8 19.5 24.6 29.6 34.6 39.5 13.8
180 15.9 21.1 26.5 31.8 37.2 42.4 10.7
140 17.0 22.4 28.1 33.6 39.1 44.7 7.5

Refer Number

FIRE STONE: W01 358 8006

 GOODYEAR: 3B12-301
FIRE STONE : W01-358-8006 GOODYEAR: 3B12 301
FIRE STONE : W013588006 GOODYEAR: 3B12301
CONTITECH FT: 330 29 430 Goodyear: 578 93 3 100
CONTITECH FT: 33029430 Goodyear: 578933100
CONTITECH FT: 330-29 430 Goodyear: 578-93-3-100
FIRE STONE: FLEX 38R/38D WEFORMA WBD 500-E2
BO SCH: 822419081 WEFORMA WBD 500 E2

GUOMAT Air Spring Advantages

Compared with spring, air spring shock absorbers have the following advantages

  • Excellent shock absorption
  • Stable shock absorption
  • Precise height control
  • Wide range of sizes
  • Extend equipment life
  • Effectively reduce noise
  • Air spring shock absorbers are widely used

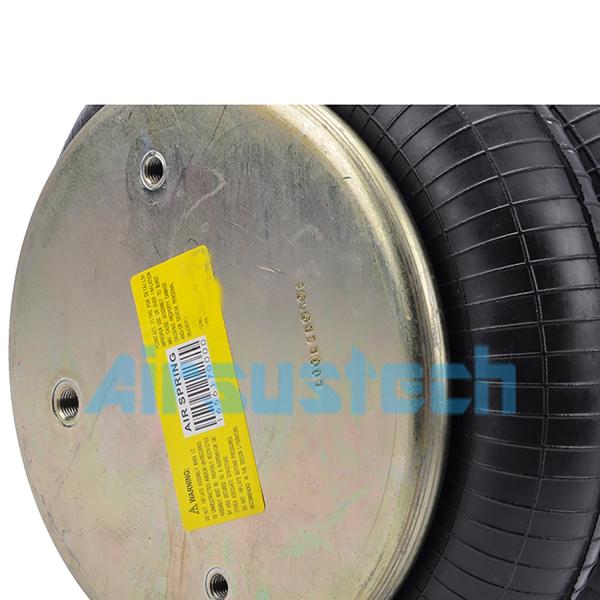

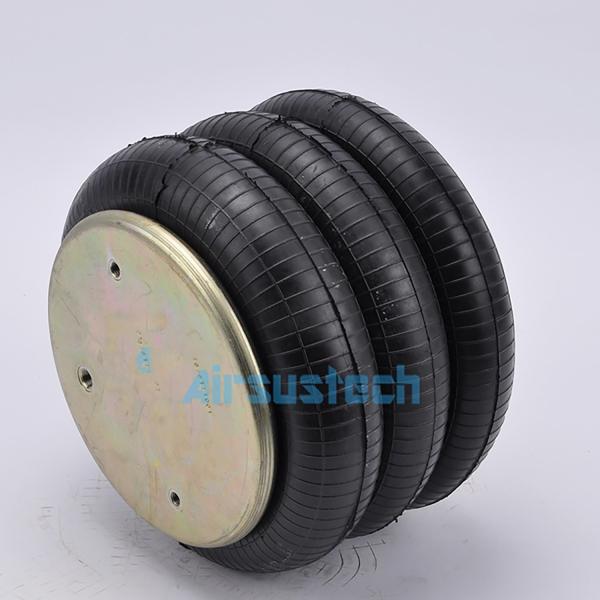

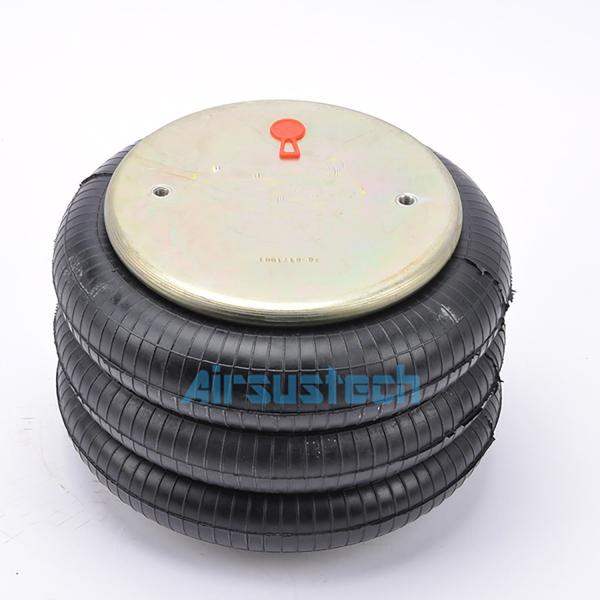

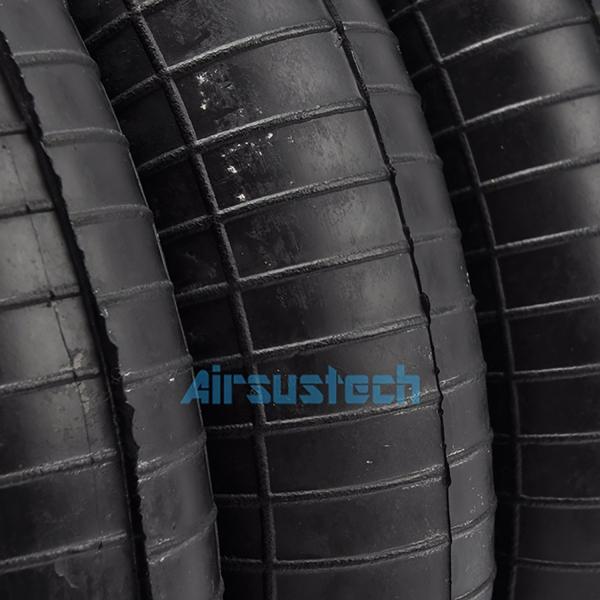

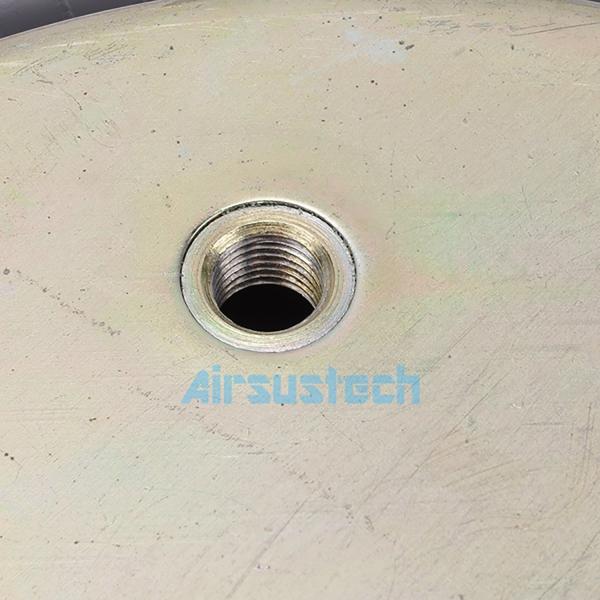

The Related Picture of 3B8006

W01-358-8006 Pneumatic Bellow By Firestone Air Spring Full Stroke 13.2 Inches

W01-358-8006 Pneumatic Bellow By Firestone Air Spring Full Stroke 13.2 InchesW01-358-8006 Pneumatic Bellow By Firestone Air Spring Full Stroke 13.2 Inches
