Specifications
Brand Name :
GUOMAT
Model Number :
G74013
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$29.9-49.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
3-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Product Name :
Industrial Actuator
After-sales Service :
12 Months
Brand :
GUOMAT
Firestone :
SZ 37-10 P02
Stud Material :
Plastic
Air Inlet :
1/8 NPT
Minimum Height :
65 MM
Maximum Height :
160 MM
Description

W02-358-3002 Firestone Sleeve Type Air Spring Plastic Studs Pneumatic Actuator



Product Specifications

Air Spring Description 1/8 NPT Each End, Plastic Studs
Air Inlet Type NPT
Screw Type M8
Top Cover Plate Diameter 61 mm
Bottom Cover Plate Diameter 61 mm
Maximum Outer Diameter 3.5
Sleeve Diameter 100 mm
Installation Space Diameter 120 mm
Minimum Height 65 mm
Maximum Height 160 mm

Product Technical Data

Force F @3 Bar At Height 110 mm [kN]: 1.08

Force F @4 Bar At Height 110 mm [kN]: 1.49

Force F @5 Bar At Height 110 mm [kN]: 1.89

Force F @6 Bar At Height 110 mm [kN]: 2.31

Force F @7 Bar At Height 110 mm [kN]: 2.73

Force F @8 Bar At Height 110 mm [kN]: 3.16

Force F @ 5 Bar At Height 70 mm [kN]: 2.1

Force F @ 5 Bar At Height 90 mm [kN]: 1.93

Force F @ 5 Bar At Height 110 mm [kN]: 1.89

Force F @ 5 Bar At Height 130 mm [kN]: 1.8

Force F @ 5 Bar At Height 1500 mm [kN]: 1.44

Cross References

Firestone

W02-358-3002, W02 358 3002, W023583002

WO2-358-3002, WO2 358 3002, WO23583002
Contitech SZ 37-10 P02, SZ37-10 P02, SZ 37-10 P02


Style 2M1A Firestone Air Spring

  • 1/8NPT,each end,plastic studs (Two Ply Bellows)

W02-358-3002, W02 358 3002, W023583002, WO2-358-3002, WO2 358 3002, WO23583002

  • 1/8NPT,each end,brass studs (Two Ply Bellows)

W02-358-3004, W02 358 3004, W023583004, WO2-358-3004, WO2 358 3004, WO23583004

GUOMAT Air Bags Product Technical Support
Provides additional support for your vehicle's suspension system
Helps to reduce vehicle sagging, sway, and bottoming out
Easy to install and inflate/deflate as needed
Constructed with high-quality materials for durability and longevity
Available in a variety of sizes to fit most vehicles


GUOMAT Air Bags Product Services
Professional installation available through authorized dealers
Warranty included with product purchase
Online resources available for product information and troubleshooting
Customer service available for any questions or concerns

The Technical Data Drawing of G74013 Air Spring

W02-358-3002 Firestone Sleeve Type Air Spring Plastic Studs Pneumatic Actuator

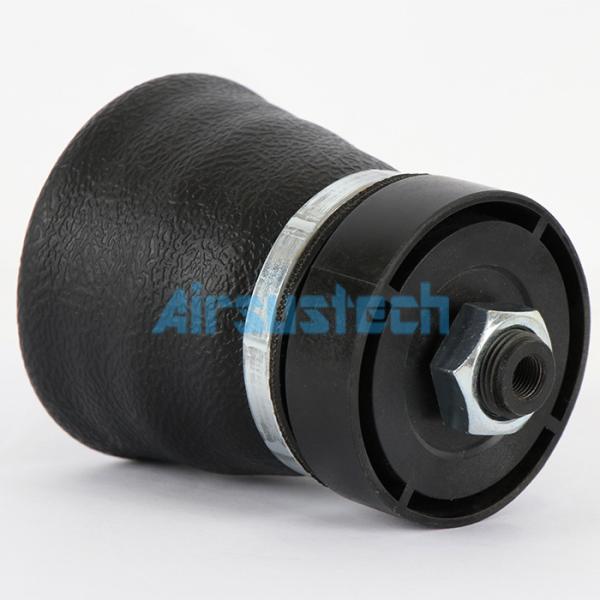

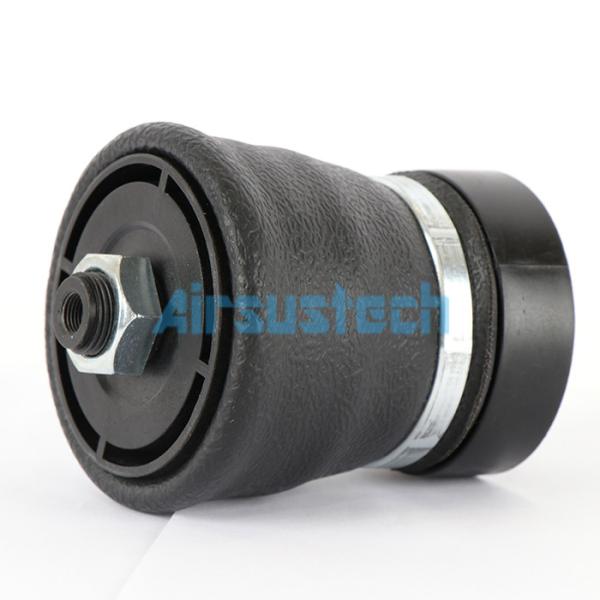

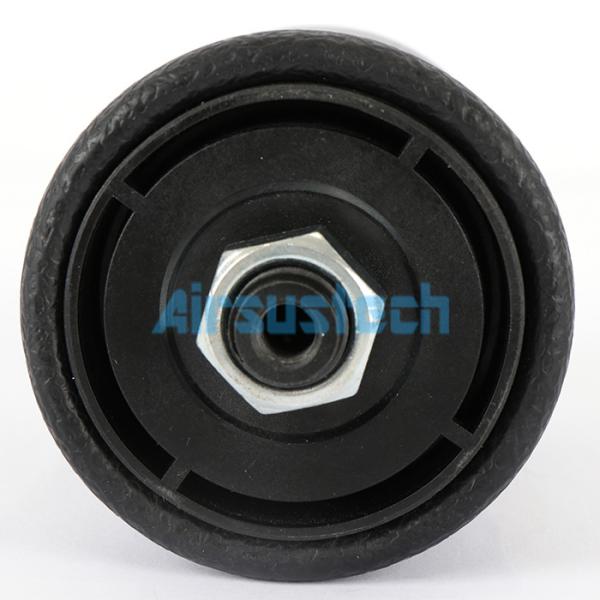

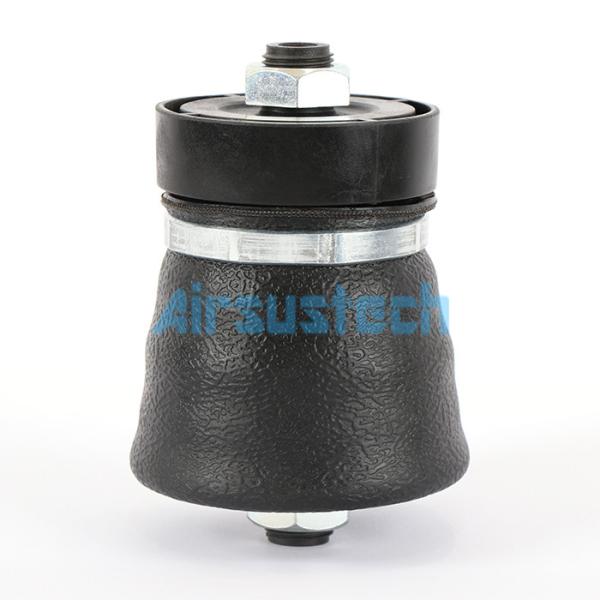

W02-358-3002 Firestone Industrial Air Spring Real Picture

W02-358-3002 Firestone Sleeve Type Air Spring Plastic Studs Pneumatic ActuatorW02-358-3002 Firestone Sleeve Type Air Spring Plastic Studs Pneumatic Actuator
