Contitech Air Spring Replacement FD70-13 1/4 M8 Double Convoluted Rubber Air Bags
Contitech Air Spring Replacement FD70-13 1/4 M8 Double Convoluted Rubber Air Bags
Contitech Air Spring Replacement FD70-13 1/4 M8 Double Convoluted Rubber Air Bags
Contitech Air Spring Replacement FD70-13 1/4 M8 Double Convoluted Rubber Air Bags
Contitech Air Spring Replacement FD70-13 1/4 M8 Double Convoluted Rubber Air Bags
Contitech Air Spring Replacement FD70-13 1/4 M8 Double Convoluted Rubber Air Bags
Contitech Air Spring Replacement FD70-13 1/4 M8 Double Convoluted Rubber Air Bags
Contitech Air Spring Replacement FD70-13 1/4 M8 Double Convoluted Rubber Air Bags
Specifications
Brand Name :
GUOMAT
Model Number :
2B7070
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6PCS
Price :
$59.9-69.9/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Type of Goods :
Air Spring/Air Bags/Air Ballons
Material :
Rubber + Steel
Warranty :
12 months
Service offered :
OEM
Contitech :
FD 70-13
Air Fitting :
G1/4
Convolutions :
2
Color :
Black
Description
Contitech Air Spring Replacement FD70-13 1/4 M8 Double Convoluted Rubber Air Bags
Product Specifications
Type Double Convoluted Type Industrial Air Spring
Brand GUOMAT
Model No. 2B7070
Color Black
Application Pick Up
Warranty 12 Months
Payment T/T L/C Western Union
Packing Carton Box
Delivery Date 2-8 working days
MOQ 1 Piece
Compatible Brands & Part Numbers
Continental ContiTech:
FD 70-13 Cl G1/4
FD 70-13 Cl G1/4 M8
FD 70-13 1/4 M8
FD 70-13 C12682 015 000
FD 70-13 / FD 70 13 / FD7013
Goodyear:
2B6-833 / 2B6833 / 2B6833
579-92-3-510 / 579 92 3 510 / 579923510
Enidine:
Y1-2B6-833 / Y12B6 833 / YI2B6833
Firestone:
w01-M58-6105 / W01M58 6105 / W01M586105
255-1.5 / 255 1.5 / 2551.5
Festo:
EB-165-125 / EB165 125 / EB165125
Technical Parameters
Top cover diameter: 107mm
Top threaded hole specifications: 2XM8, 15mm
Center distance between top threaded holes: 44.5mm
Air Fitting: G1/4
Bottom cover diameter: 107mm
Bottom threaded hole specifications: 2XM8, 15mm
Center distance between bottom threaded holes: 44.5mm
Maximum outer diameter: 165mm
Design height: 160mm
Key Selection Parameters

To ensure optimal performance and service life, evaluate these factors when selecting an air spring:

  • Load Requirement: Confirm required load capacity under static and dynamic conditions
  • Working Stroke & Height Range: Check minimum height, maximum height, and effective stroke
  • Mounting Configuration: Verify thread size, stud quantity, and center distance
  • Installation Space: Ensure sufficient clearance for maximum bellows diameter
  • Operating Pressure Range: Confirm compatibility with system air supply pressure
  • Application Environment: Consider temperature, humidity, vibration, and exposure to dust or chemicals
Note: Selecting the correct model improves stability, reduces maintenance costs, and extends equipment service life. GUOMAT engineers are available for technical support and application matching.

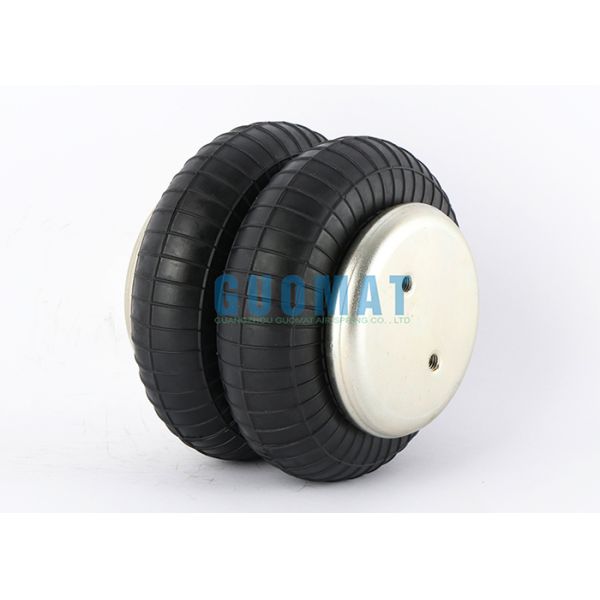

Product Images
Contitech Air Spring Replacement FD70-13 1/4 M8 Double Convoluted Rubber Air Bags Contitech Air Spring Replacement FD70-13 1/4 M8 Double Convoluted Rubber Air Bags
