FD 330-22 1/1 M8 Contitech Suspension Air Spring 2682060000 Convoluted Type Air Rubber
FD 330-22 1/1 M8 Contitech Suspension Air Spring 2682060000 Convoluted Type Air Rubber
FD 330-22 1/1 M8 Contitech Suspension Air Spring 2682060000 Convoluted Type Air Rubber
FD 330-22 1/1 M8 Contitech Suspension Air Spring 2682060000 Convoluted Type Air Rubber
FD 330-22 1/1 M8 Contitech Suspension Air Spring 2682060000 Convoluted Type Air Rubber
FD 330-22 1/1 M8 Contitech Suspension Air Spring 2682060000 Convoluted Type Air Rubber
FD 330-22 1/1 M8 Contitech Suspension Air Spring 2682060000 Convoluted Type Air Rubber
FD 330-22 1/1 M8 Contitech Suspension Air Spring 2682060000 Convoluted Type Air Rubber
Specifications
Brand Name :
GUOMAT
Model Number :
2B330-22
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5pcs
Price :
USD59.9-69.9/PC
Payment Terms :
L/C, T/T, Western Union Or Others
Supply Ability :
1000PCS/Week
Delivery Time :
3-7 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Product Name :
Industrial Air Spring
Quality :
100 % Tested
Transport Package :
Strong Cartons
After-sales Service :
12 Months
Type :
Gas-Filled
Color :
Black
Contitech :
FD 330-22
MOQ :
5pcs
Description
FD 330-22 1/1 M8 Contitech Suspension Air Spring 2682060000 Convoluted Type Air Rubber
The FD 330-22 air spring is designed for suspension and vibration control systems where stable load support and flexible motion are required. Built with reinforced rubber bellows and durable metal mounting plates, the GUOMAT 2B330-22 provides reliable performance in demanding mechanical environments.
Air springs use compressed air as the elastic medium, allowing the system to adapt to different loads while maintaining smooth vertical movement. This makes them an effective alternative to conventional coil or leaf springs in many industrial and suspension applications.
The GUOMAT 2B330-22 corresponds to Contitech FD 330-22 (2682060000) and is manufactured to provide consistent installation compatibility and dependable operating performance.
GUOMAT Number: 2B330-22
Contitech Number: 2682060000
Contitech Number: FD330-22
Contitech Number: FD 330-22
Contitech Number: FD330-22 1/1 M8
Contitech Number: FD 330-22 1/1 M8

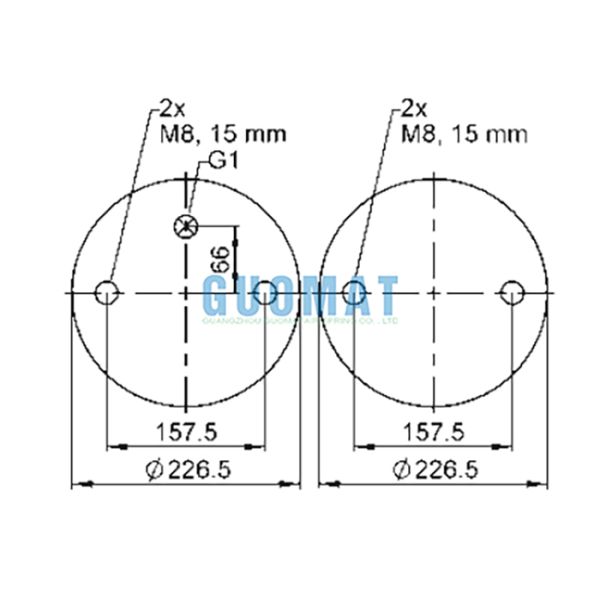

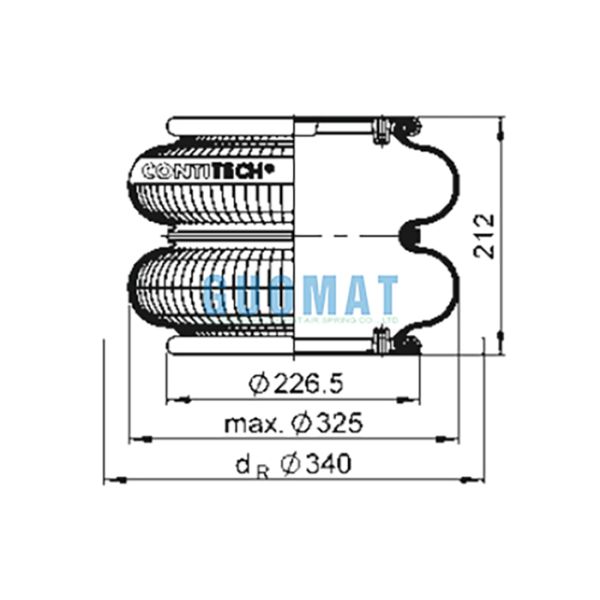

Technical Specifications
Parameter Specification
Top Plate Diameter 226.5 mm
Bolt Center Distance 157.5 mm
Distance Between Air Hole and Bolt 66 mm
Air Hole G1
Thread Hole Specification M8
Design Height 212 mm
Maximum Outer Diameter 325 mm
How Air Springs Improve Suspension Performance
Unlike rigid mechanical springs, a convoluted air spring contains a flexible rubber chamber that compresses and expands with air pressure. This structure creates a progressive cushioning effect, allowing the spring to respond smoothly to changing loads.
In practical operation, this helps equipment or vehicles:
  • Reduce vibration transmitted to the frame or structure
  • Maintain more stable movement during load changes
  • Absorb sudden shock from mechanical motion
  • Improve overall operating smoothness
Reliable Replacement Solution
The GUOMAT 2B330-22 is manufactured according to strict dimensional control to ensure compatibility with standard mounting configurations. This allows it to be used as a replacement air spring in systems originally equipped with FD 330-22 models.
By combining durable rubber materials with reinforced structural design, the air spring provides consistent load support and long operational life even under demanding working conditions.
