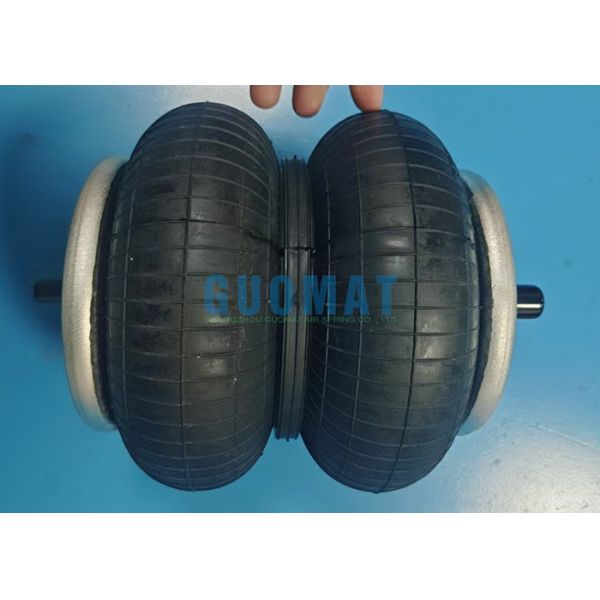

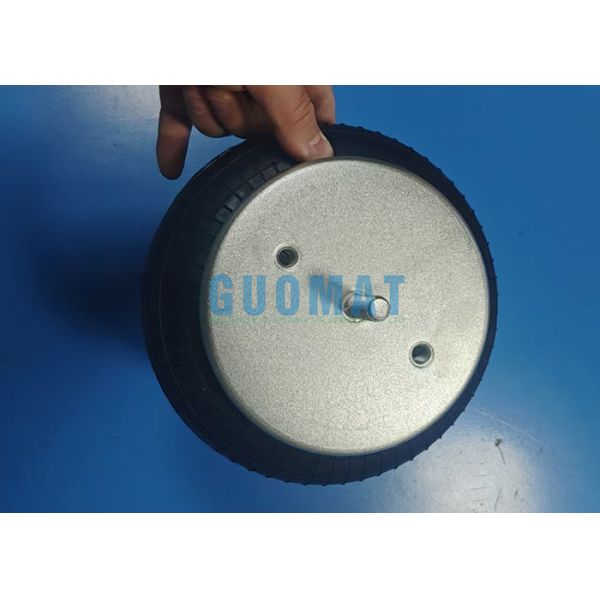

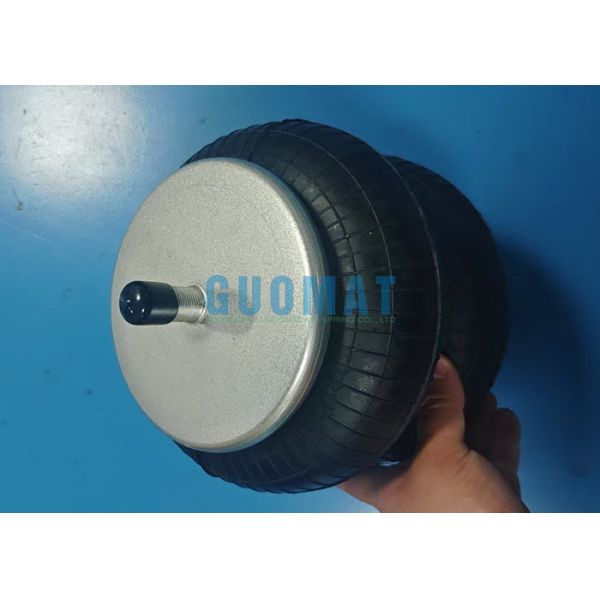

W01-358-7788 Firestone Load Capacity Rubber Air Spring 2B9-245 Goodyear Air Bag Suspension
W01-358-7788 Firestone Load Capacity Rubber Air Spring 2B9-245 Goodyear Air Bag Suspension
W01-358-7788 Firestone Load Capacity Rubber Air Spring 2B9-245 Goodyear Air Bag Suspension
W01-358-7788 Firestone Load Capacity Rubber Air Spring 2B9-245 Goodyear Air Bag Suspension
W01-358-7788 Firestone Load Capacity Rubber Air Spring 2B9-245 Goodyear Air Bag Suspension
W01-358-7788 Firestone Load Capacity Rubber Air Spring 2B9-245 Goodyear Air Bag Suspension
W01-358-7788 Firestone Load Capacity Rubber Air Spring 2B9-245 Goodyear Air Bag Suspension
W01-358-7788 Firestone Load Capacity Rubber Air Spring 2B9-245 Goodyear Air Bag Suspension
Specifications
Price :
USD59.9-69.9/PC
Packaging Details :
Strong Carton Box or as Customers Requirement
Warranty :
One Year
Material :
Rubber + Steel
Supply Ability :
1000PCS/Week
Delivery Time :
3-7 Working Days
Place of Origin :
Guangzhou,China
Pressure Ability :
0.2-0.8 M PA
Type :
Air Bag Suspension
Contitech :
FD 200-19 510
Brand Name :
GUOMAT
Certification :
ISO/TS16949:2009
MOQ :
5pcs
Model Number :
2B7788
Convolutions :
2
Transport Package :
Cartons
Firestone :
W01-358-7788
Payment Terms :
L/C, T/T, Or Others
Description
W01-358-7788 Firestone Load Capacity Rubber Air Spring 2B9-245 Goodyear Air Bag Suspension
Product Specifications
Type Suspension Air Spring
Brand GUOMAT
Model Number 2B7788
Warranty 12 Months
Delivery 3-7 Working Days After Receiving Payment
Packing Foam + Carton Packaging
Corresponding OEM Numbers
Firestone W01-358-7788 / W01 358 7788 / W013587788
Contitech FD200-19 510 / FD 200-19 510
Goodyear 2B9-245 / 2B 9-245 / 2B9 245
Goodyear 578-92-3-202 / 578 92 3 202 / 578923202
Triangle 6325 / 4510
Watson & Chalin AS-0088
Watson & Chalin AS-0088G
Technical Specifications
Nut / Blind Nut
Screw Center Distance of Bottom Cover Plate 89mm
Cover Plate
Top Cover Plate Diameter (Width) 160mm
Bottom Cover Plate Diameter (Width) 160mm
Rubber Bellows
Rubber Bellows MAX Diameter 251.5mm
Maximum Height 274mm
Minimum Height 95mm
Bumper Block / Buffer Block
With Bumper Block Yes
Shipping & Logistics
Safe & Professional Packaging
  • Each GUOMAT air spring is packed with protective inner wrapping and strong export cartons to prevent damage during transportation
  • For bulk orders, pallet packaging is available to ensure safer loading and unloading
  • We make sure every product arrives in good condition
Fast & Flexible Delivery Options
We support multiple shipping methods to meet different customer needs:
  • Sea Freight - Best for large volume orders
  • Air Freight - Faster delivery for urgent demand
  • Express (DHL / FedEx / UPS / TNT) - Ideal for samples and small orders
Shipping method can be selected according to your budget and timeline.
Quick Dispatch
  • Samples: Fast shipment after confirmation
  • Bulk orders: Stable production capacity ensures on-time delivery
  • Tracking number provided once shipped
Global Export Support
We provide complete export documents:
  • Commercial Invoice
  • Packing List
  • Bill of Lading / Air Waybill
  • Certificate of Origin (if required)
