W01-358-9401 Firestone Truck Suspension Air Spring 1T15T-1 Style Semi Trailer Air Bag
W01-358-9401 Firestone Truck Suspension Air Spring 1T15T-1 Style Semi Trailer Air Bag
W01-358-9401 Firestone Truck Suspension Air Spring 1T15T-1 Style Semi Trailer Air Bag
W01-358-9401 Firestone Truck Suspension Air Spring 1T15T-1 Style Semi Trailer Air Bag
Specifications
Brand Name :
GUOMAT
Model Number :
1T9401
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$89.9-99.9/pc
Payment Terms :
L/C, T/T,
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Product Name :
Truck Air Spring
Operation :
Gas-Filled
Quality :
100% Tested
Sample :
Available
MOQ :
6 Pieces
Vehicle :
Truck Suspension
Firestone :
W01-358-9401
Airtech :
135822 / 34183-24C
Description
W01-358-9401 Firestone Truck Suspension Air Spring 1T15T-1 Style Semi Trailer Air Bag
W01-358-9401 Firestone Truck Suspension Air Spring 1T15T-1 Style Semi Trailer Air Bag
Product Specifications
Product Name Air Suspension
GUOMAT 1T9401
Warranty 1 Year
Material Rubber+Steel
Corresponding OEM Numbers
Firestone Numbers
  • W01-358-9401 / WO1-358-9401
  • W01 358 9401 / WO1 358 9401
  • W013589401 / WO13589401
Firestone Style Number
  • 1T15T-1
Airtech Numbers
  • 135822 / 34183-24C
Technical Specifications
  • Max. Height: 12"
  • Min. Height: 4"
  • Blind Nuts: 3/8-16
  • Air Inlet: 1/4NPT
  • Center Distance Between Blind Nuts: 6.2"
  • Center Distance Between Blind Nuts and Air Inlet: 2.88"
  • Maximum Outer Diameter: 11.2"
  • Top Cover Diameter: 9"
  • Base Diameter: 9.25"
  • Piston Height: 2"
  • Threaded Hole in Base: 1/2-13
Performance Data
Assembly Height (in.) Volume@ 100PSIG(in³) Pounds Force @ Various PSIG
@20PSIG @20PSIG @20PSIG @20PSIG @20PSIG
10.0 541 920 1750 2600 3470 4410
9.0 490 1030 2010 3050 4050 5130
8.0 433 1100 2090 3210 4330 5470
7.0 373 1110 2100 3220 4370 5490
6.0 314 1160 2190 3330 4480 5650
5.0 251 1450 2570 3780 5010 6290
Related Firestone Parts (Same Style Number)
Blind Nuts, 1/4NPT
  • W01-358-9400
  • W01 358 9400
  • W013589400
Blind Nuts, 1/4NPT, Bumper
  • W01-358-9402
  • W01 358 9402
  • W013589402
Blind Nuts, 3/4NPT
  • W01-358-9401
  • W01 358 9401
  • W013589401

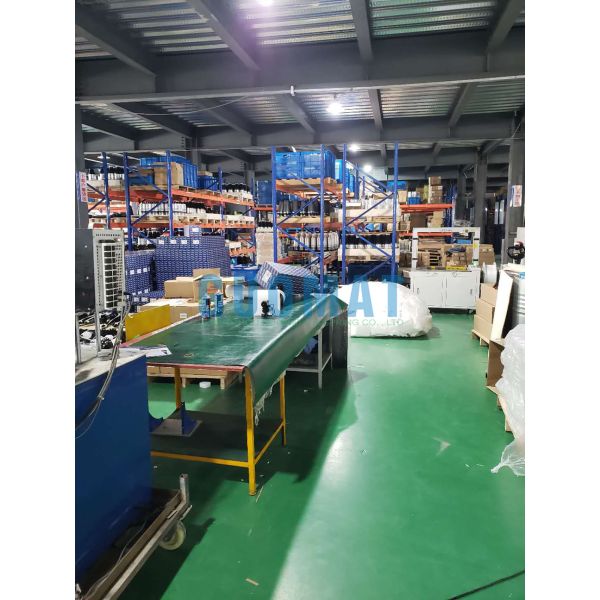

GUOMAT Workshop
