Specifications
Brand Name :
GUOMAT
Model Number :
3B8X3T
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6PCS
Price :
$169.9-189.9/pc
Payment Terms :
L/C, T/T,
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Material :
Rubber + Steel
Warranty :
12 Months
Sample :
Available
Other Name :
Triple Convoluted Rubber Air Spring
Firestone :
W01 R58 4056
Air Inlet :
G1/2
Work Pressure :
≤0.7Mpa
Convolutions :
3
Description
8"X3 Rubber Air Bellows FT 138-26 DS Contitech Heavy Duty Industrial Air Bag Factory Supply
Product Overview

Heavy-duty industrial air bellow designed for demanding applications with superior durability and performance characteristics.

Product Specifications

Manufacturer: GUOMAT

Model Number: 3B8X3T

Material: Rubber and Steel

Warranty: 12 Months

Working Pressure: ≤ 0.7 MPa

Working Medium: Water, Air, Small Amount of Oil

Fatigue Test: > 1 Million Cycles

Burst Pressure: > 2.0 MPa

Technical Data

Cover Plate

Top Cover Plate Diameter: 183.5mm

Bottom Cover Plate Diameter: 183.5mm

Air Inlet: G1/2

Blind Nut

Screw Center Distance Of Bottom Cover Plate: 155.5mm

Top Cover Plate Screw (Nut) Tooth: 4pcs XM10

Bottom Cover Plate Screw (Nut) Tooth: 4pcs XM10

Rubber Bellow

Rubber Bellow Natural Diameter: 205mm

Natural Height: 196mm

Force vs Pressure Characteristics
Height H (mm) 3 bar 4 bar 5 bar 6 bar 7 bar 8 bar VoI.V(I)
290 3.94 5.4 6.86 8.44 10 11.7 6.7
240 5.25 7.11 8.96 10.9 12.9 14.9 5.8
190 6.38 8.6 10.8 13.2 15.5 18 4.7
140 8.01 10.6 13.1 15.9 18.7 21.6 3.4
Cross-Reference Part Numbers
  • Firestone: W01-R58-4056, W01 R58 4056, W01R584056, 8X3, 8"X3
  • Contitech: FT138-26DS, FT 138-26DS, FT 138-26 DS
  • Dunlop: SP2863, SP 2863
  • Norgren: M/31083, M 31083, M31083
Typical Applications
  • Industrial machinery vibration isolation
  • Press machines and stamping equipment
  • Conveying and material handling systems
  • Equipment leveling and height adjustment systems
  • General pneumatic and suspension applications

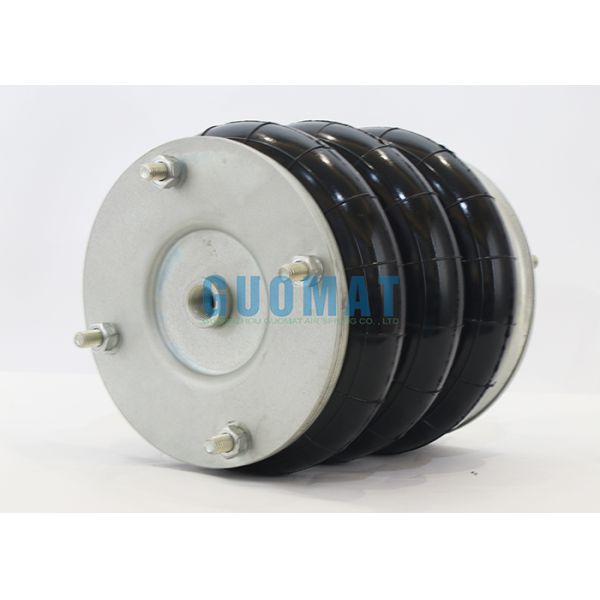

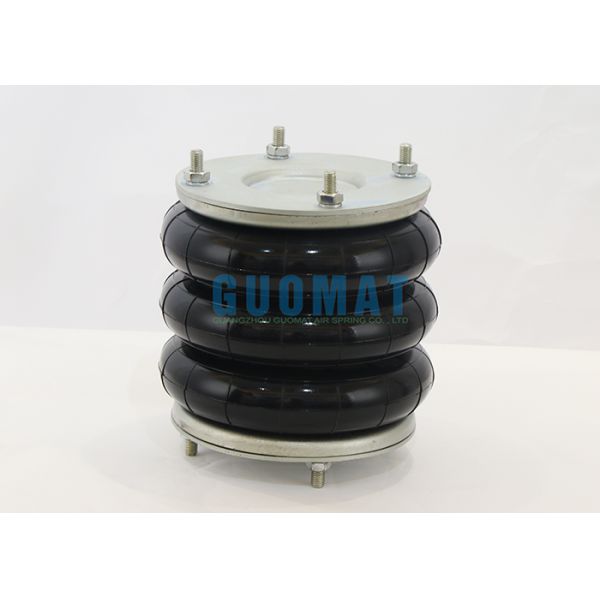

Product Image
8''X3 Rubber Air Bellows FT 138-26 DS Contitech Heavy Duty Industrial Air Bag Factory supply
