W01-358-5310 Firestone Air Suspension 1T14C-1 1/4 NPT Air Hole Heavy Duty Truck Air Spring
W01-358-5310 Firestone Air Suspension 1T14C-1 1/4 NPT Air Hole Heavy Duty Truck Air Spring
W01-358-5310 Firestone Air Suspension 1T14C-1 1/4 NPT Air Hole Heavy Duty Truck Air Spring
W01-358-5310 Firestone Air Suspension 1T14C-1 1/4 NPT Air Hole Heavy Duty Truck Air Spring
W01-358-5310 Firestone Air Suspension 1T14C-1 1/4 NPT Air Hole Heavy Duty Truck Air Spring
W01-358-5310 Firestone Air Suspension 1T14C-1 1/4 NPT Air Hole Heavy Duty Truck Air Spring
Specifications
Type :
Suspension Air Spring
Price Condition :
FOB China
Quality :
100% Tested
Certification :
ISO/TS16949:2009
Brand Name :
GUOMAT
MOQ :
6pcs
Color :
Black
Place of Origin :
GuangDong, China
Packaging Details :
strong carton box or as customers need
Price :
$89.9-99.9/pc
MOQ :
6PCS
Model Number :
1T5310
Firestone :
W01-358-5310
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Material :
Metal and Rubber
Payment Terms :
L/C,T/T,
Product Name :
Truck Air Spring
Description
W01-358-5310 Firestone Air Suspension 1T14C-1 1/4 NPT Air Hole Heavy Duty Truck Air Spring
W01-358-5310 Firestone Air Suspension 1T14C-1 1/4 NPT Air Hole Heavy Duty Truck Air Spring
Product Details
Item Description
Product Category Air Spring / Air Bellows / Pneumatic Shock Spring
Brand GUOMAT or Neutral Packaging Available
Model 1T5310
Construction Material Reinforced rubber with steel end plates
Warranty 12-month quality guarantee
Minimum Order Quantity 1 piece available if stock is on hand
Compatible with Other Brands & Their Part Numbers
Firestone Style Number: 1T14C-1
  • Firestone Assembly Order Number: W01-358-5310
  • Firestone Assembly Order Number: W01 358 5310
  • Firestone Assembly Order Number: W013585310
  • Firestone Assembly Order Number: WO1-358-5310
  • Firestone Assembly Order Number: WO1 358 5310
  • Firestone Assembly Order Number: WO13585310
  • Contitech Part Number: 6 6.5-11 S 030
  • Contitech Part Number: 66.5-11S030
  • Contitech Part Number: 68111
  • Contitech Bellows Number: 6 6.5-11
  • Triangle Number: AS-8030
  • TRP Number: AS53100
  • Automann Number: 1DK10-5310
Manufacturer Original Part No.
American Carrier 9003-001
Hendrickson S-8832
Ridewell 1003585310C
Flxible 6-336-2

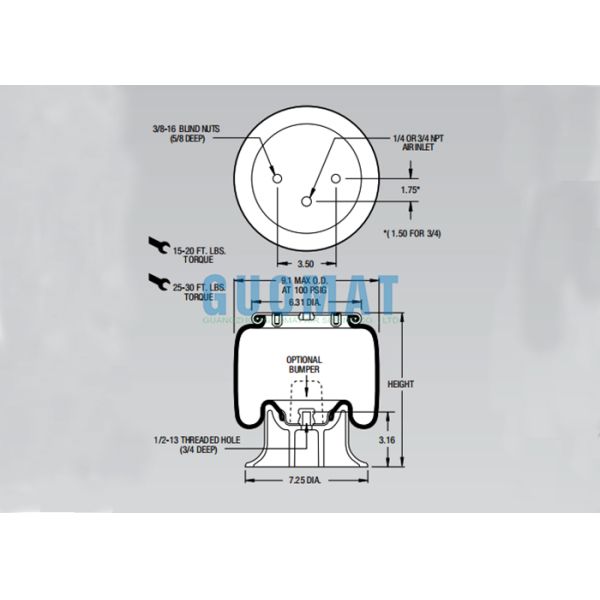

Detailed Technical Specifications
Top cover diameter: 6.31 inches
Top cover threaded holes: 2pcs x 3/8-16UNC
Center distance between threaded holes: 3.5 inches
Center distance between threaded holes and vent: 1.75 inches
Vent: 1/4 NPT
Base diameter: 7.25 inches
Base height: 3.16 inches
Base threaded holes: 1/2-13UNC
Maximum outer diameter: 9.1 inches
Maximum height: 15 inches
Minimum height: 5 inches
Performance Specifications
Assembly Height (in.) Volume@100PSIG(in3) Pounds Force
@20PSIG @40PSIG @60PSIG @80PSIG @100PSIG
12.0 376 540 1010 1530 2040 2600
11.0 347 570 1160 1770 2380 3010
10.0 314 590 1210 1880 2540 3220
9.0 280 590 1190 1890 2570 3240
8.0 246 580 1200 1890 2570 3240
7.0 211 620 1240 1920 2600 3300
6.0 176 740 1380 2060 2790 3530
Firestone Style 1T14C-1 Truck Air Spring Variants
Blind nuts, 1/4NPT
W01-358-5310 / W01 358 5310 / W013585310
Blind nuts, 1/4NPT, Bumper
W01-358-5311 / W01 358 5311 / W013585311
Blind nuts, 3/4NPT
W01-358-5305 / W01 358 5305 / W013585305
Blind nuts, 3/4NPT, Bumper
W01-358-5306 / W01 358 5306 / W013585306
Countersunk steel bead ring 13/4 bolts, nuts, washers
W01-358-5307 / W01 358 5307 / W013585307
