Truck Rolling Lobe Air Spring W01-358-9049 1T15LP-3 Firestone Auto Parts Replacement
Truck Rolling Lobe Air Spring W01-358-9049 1T15LP-3 Firestone Auto Parts Replacement
Truck Rolling Lobe Air Spring W01-358-9049 1T15LP-3 Firestone Auto Parts Replacement
Truck Rolling Lobe Air Spring W01-358-9049 1T15LP-3 Firestone Auto Parts Replacement
Truck Rolling Lobe Air Spring W01-358-9049 1T15LP-3 Firestone Auto Parts Replacement
Truck Rolling Lobe Air Spring W01-358-9049 1T15LP-3 Firestone Auto Parts Replacement
Specifications
Supply Ability :
1000pcs/week
Packaging Details :
strong carton box or as customers need
MOQ :
1 PCS
Place of Origin :
GuangDong, China
Service Offered :
OEM
Size :
OEM Standard Size
Payment Terms :
L/C,T/T,
Material :
Rubber Bellow+Steel seal plate
Keywords :
Air Spring
Firestone :
W01-358-9049
Model Number :
1T9049
Price :
$47.6-63/pc
Warranty :
12 Months
Delivery Time :
2-8 work days
Certification :
ISO/TS16949:2009
MOQ :
6pcs
Application :
For Truck Suspension
Brand Name :
GUOMAT
Description
Truck Rolling Lobe Air Spring W01-358-9049 1T15LP-3 Firestone Auto Parts Replacement
Truck Rolling Lobe Air Spring W01-358-9049 1T15LP-3 Firestone Auto Parts Replacement
Product Information
Product Name: Truck Suspension Air Spring
Description: Truck Spare Parts Air Spring Shock Absorber Spring
Brand GUOMAT
Model Number 1T9049
MOQ: 1 PCS
Warranty: 12 Months
Material: Rubber
Package: Carton
Payment: L/C, T/T,
Port of shipment Huangpu, Nansha
Shippment: By sea, By air, by express
Corresponding OEM Numbers
Firestone Truck Air Spring Style Numbers:
1T15LP-3
1T15S-6
Firestone Truck Air Spring Part Numbers:
W01-358-9049 / WO1-358-9049
W01 358 9049 / WO1 358 9049
W013589049 / WO13589049
Goodyear Numbers:
1R10-039 / 1R 10-039 / 1R10 039 / 1R10039
Granning Number:
6252
Blind nuts, 1/4NPT, bumper:
Firestone W013589049
Firestone W01 358 9049
Firestone W01-358-9049
Firestone WO13589049
Firestone WO1 358 9049
Firestone WO1-358-9049
Blind nuts, 3/4NPT:
Firestone W013589051
Firestone W01 358 9051
Firestone W01-358-9051
Firestone WO13589051
Firestone WO1 358 9051
Firestone WO1-358-9051

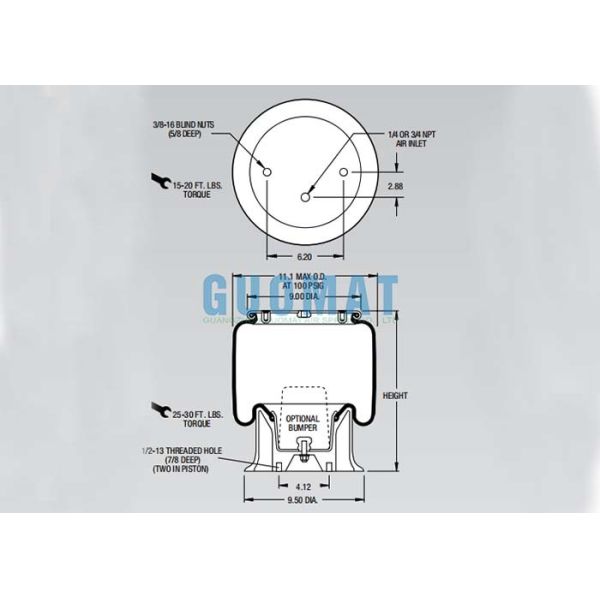

Detailed Technical Information
Top Cover Specifications:
• Diameter: 9.00 inches
• Two 3/8-16 bolts with center-to-center distance: 6.2 inches
• Air hole: 1/4 NPT
• Center-to-center distance between air hole and threaded holes: 2.88 inches
Base Specifications:
• Diameter: 9.25 inches
• One 1/2-13 bolt
• Includes buffer block
General Dimensions:
• Maximum outer diameter: 11.1 inches
• Natural height: 12.00 inches
• Maximum height: 19.00 inches
• Minimum height: 6.00 inches
Volume @ 100 PSIG = 625 in³ | Natural Frequency
Gage Pressure (PSIG) Load(lbs.) Spring Rate (lbs./in.) CPM HZ
40 2040 363 79 1.32
60 3140 513 76 1.26
80 4220 657 74 1.23
100 5340 813 73 1.22
Assembly Height (in.) Volume @ 100 PSIG (in³) Pounds Force @20PSIG @40PSIG @60PSIG @80PSIG @100PSIG
16 834 830 1580 2140 2860 3600
14 739 1010 1980 2930 3980 5000
12 625 980 2040 3140 4220 5340
10 509 1030 2100 3160 4270 5410
8 392 1280 2380 3520 4690 5930
