2H130142 GUOMAT Industrial Air Spring M10 Threaded Hole Convoluted Air Lift Bags 90mm Stroke
2H130142 GUOMAT Industrial Air Spring M10 Threaded Hole Convoluted Air Lift Bags 90mm Stroke
2H130142 GUOMAT Industrial Air Spring M10 Threaded Hole Convoluted Air Lift Bags 90mm Stroke
2H130142 GUOMAT Industrial Air Spring M10 Threaded Hole Convoluted Air Lift Bags 90mm Stroke
Specifications
Brand Name :
GUOMAT
Model Number :
1B7451
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6PCS
Price :
$89.9-99.9/pc
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Item :
Single Convoluted Airbags
Warranty :
1 Year
Material :
Rubber + Steel
Packing :
Brown Carton
Condition :
100% Brand-new
Net Weight :
2.2KG
Packing Size :
25*25*25（CM）
Color :
Black
Description
2H130142 GUOMAT Industrial Air Spring M10 Threaded Hole Convoluted Air Lift Bags 90mm Stroke
Product Overview

2H130142 GUOMAT Industrial Air Spring M10 Threaded Hole Convoluted Air Lift Bags 90mm Stroke

Product Information

Manufacturer: GUOMAT

Manufacturer Part Number: 2H130142

  • Single Convolution Air Spring
  • Natural Bellows
  • Blind Nuts
  • M10 Threaded Hole
Technical Parameters

Top flange diameter: 140mm

Top threaded holes: 6pcs XM10

Center distance between top threaded holes: 112mm

Bottom flange diameter: 140mm

Bottom threaded holes: 6pcs XM10

Center distance between bottom threaded holes: 112mm

Maximum outer diameter: 150mm

Natural height: 142mm

Minimum height: 72mm

Maximum height: 162mm

Stroke: 90mm

Carrying Capacity Installation 0.2 MPa 0.3 MPa 0.4 MPa 0.5 MPa 0.6 MPa 0.7 MPa 0.8 MPa Volume at 0.7MPa (dm³)
72 mm 211 319 428 536 647 756 861 1.44
92 mm 176 266 357 448 540 631 722 0.66
112 mm 140 211 285 360 434 506 580 0.86
132 mm 104 158 217 274 332 387 444 0.95
142 mm 80 126 173 219 266 314 361 1.00
162 mm 14 35 55 5 96 117 140 1.14
172 mm 12 20 25 1.17
Stiffness and frequency at design height Vertical Stiffness (Kg/cm) 38 53 70 88 106 122 138
Natural Frequency (Hz) 3.46 3.26 3.2 3.17 3.16 3.12 3.1
cpm 208 196 192 190 190 187 186

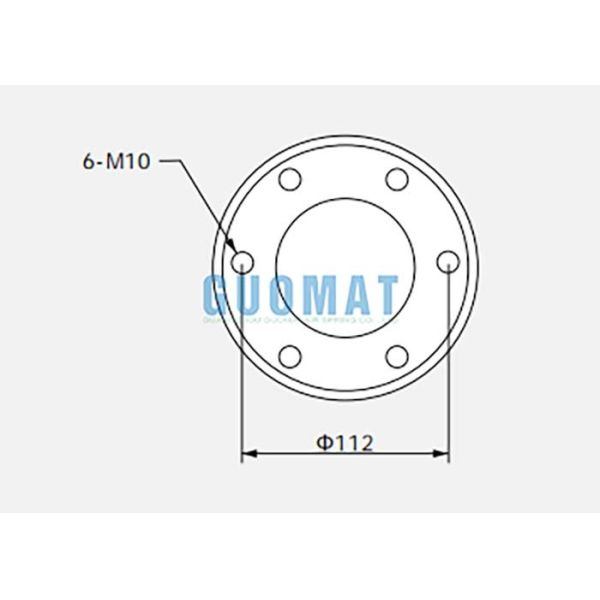

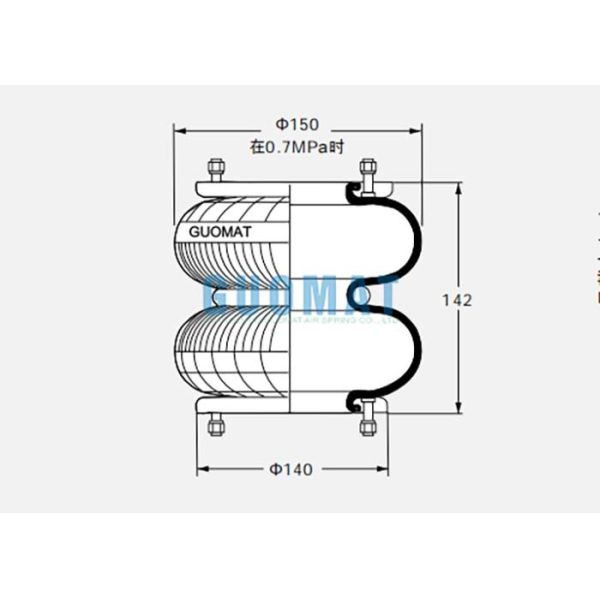

Product Drawings
2H130142 GUOMAT Industrial Air Spring M10 Threaded Hole Convoluted Air Lift Bags 90mm Stroke
2H130142 GUOMAT Industrial Air Spring M10 Threaded Hole Convoluted Air Lift Bags 90mm Stroke
