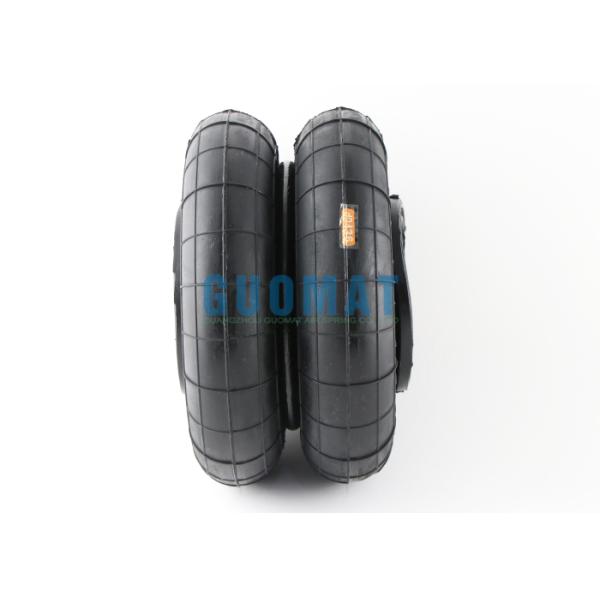

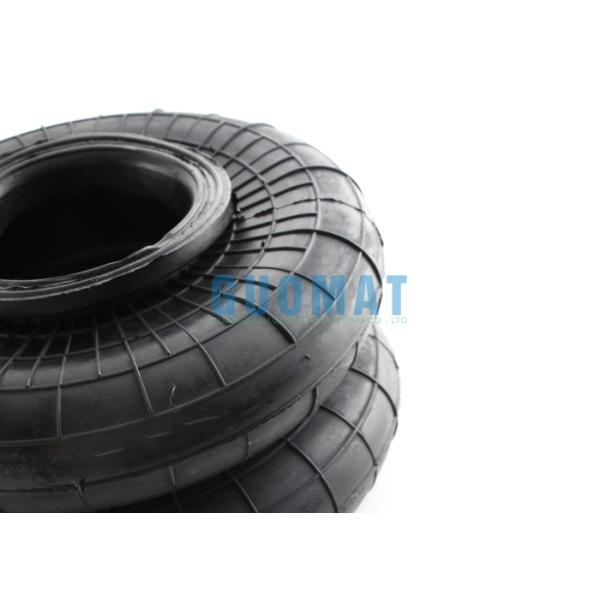

250185H-2 Double Convoluted Air Bellows 180mm Natural Height Rubber Air Spring
250185H-2 Double Convoluted Air Bellows 180mm Natural Height Rubber Air Spring
250185H-2 Double Convoluted Air Bellows 180mm Natural Height Rubber Air Spring
250185H-2 Double Convoluted Air Bellows 180mm Natural Height Rubber Air Spring
250185H-2 Double Convoluted Air Bellows 180mm Natural Height Rubber Air Spring
250185H-2 Double Convoluted Air Bellows 180mm Natural Height Rubber Air Spring
250185H-2 Double Convoluted Air Bellows 180mm Natural Height Rubber Air Spring
250185H-2 Double Convoluted Air Bellows 180mm Natural Height Rubber Air Spring
Specifications
Brand Name :
GUOMAT
Model Number :
250185H-2
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$79.9-89.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Material :
Natural Rubber
Warranty :
1 Year Warranty
Sample :
Available
Operation :
Gas-Filled
Application :
Electronic Equipment/Large Drying Machines
Convolutions :
2
Natural Height :
180mm
Color :
Black
Description
250185H-2 Double Convoluted Air Bellows 180mm Natural Height Rubber Air Spring
Product Specifications
  • Brand: GUOMAT
  • Model Number: 250185H-2
  • Convolutions: 2 (Double)
  • Type: Rubber Air Spring
  • Material: Rubber Bellows
  • Warranty: 1 Year Warranty
Technical Data
Natural Height: 180mm
Maximum Height: 206mm
Minimum Height: 84mm
Stroke: 122mm
Effective Diameter: 185mm
Maximum Outside Diameter: 270mm
Mounting Flange Data
Flange Ring Diameter: 183mm
Threaded Hole Center Distance: 145mm
Threaded Holes: 8-M10 Top
Threaded Holes: 8-M10 Bottom
Air Spring Technical Performance Parameter Table
Carrying
Capacity		 Inflation Pressure 0.2 0.3 0.4 0.5 0.6 0.7 0.8 Volume at 0.7MPa
Installtion MPa MPa MPa MPa MPa MPa MPa (dm3)
84 (mm) 755 1125 1484 1868 2239 2610 2980 2.18
126 (mm) 668 1015 1360 1694 2041 2388 2746 3.71
168 (mm) 530 848 1144 1426 1735 2030 2327 5.06
180 (mm) 520 795 1073 1345 1627 1904 2195 5.28
206 (mm) 412 638 857 1089 1321 1554 1798 5.90
230 (mm) 312 494 676 857 1045 1243 1446 6.60
Stiffness and frequency at design height Vertical Stiffness (Kg/cm) 101 120 150 184 212 231 257
Natural Frequency HZ 2.21 1.94 1.87 1.85 1.81 1.74 1.71
com 133 116 112 111 109 104 103

250185H-2 Double Convoluted Air Bellows 180mm Natural Height Rubber Air Spring250185H-2 Double Convoluted Air Bellows 180mm Natural Height Rubber Air Spring
