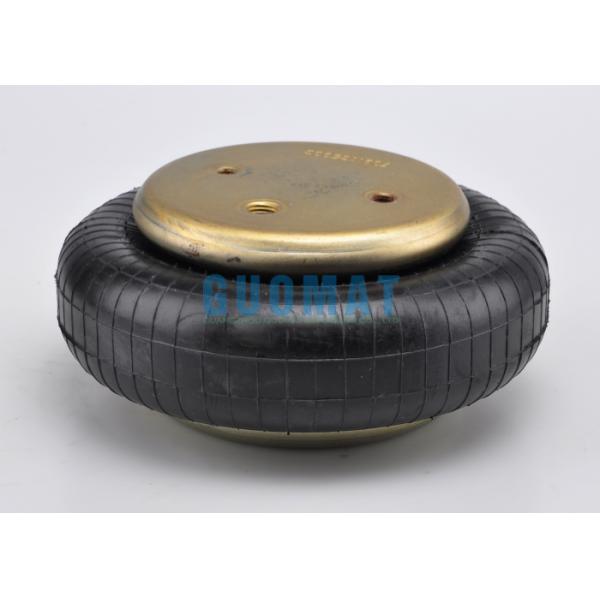

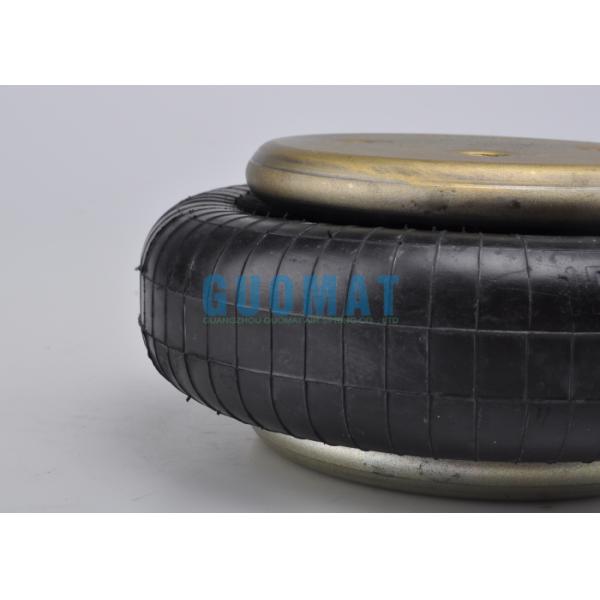

W013586920/W013587043 Firestone Rubber Air Spring 1B12-305 Goodyear Industrial Air Bellow
W013586920/W013587043 Firestone Rubber Air Spring 1B12-305 Goodyear Industrial Air Bellow
W013586920/W013587043 Firestone Rubber Air Spring 1B12-305 Goodyear Industrial Air Bellow
W013586920/W013587043 Firestone Rubber Air Spring 1B12-305 Goodyear Industrial Air Bellow
W013586920/W013587043 Firestone Rubber Air Spring 1B12-305 Goodyear Industrial Air Bellow
W013586920/W013587043 Firestone Rubber Air Spring 1B12-305 Goodyear Industrial Air Bellow
W013586920/W013587043 Firestone Rubber Air Spring 1B12-305 Goodyear Industrial Air Bellow
W013586920/W013587043 Firestone Rubber Air Spring 1B12-305 Goodyear Industrial Air Bellow
Specifications
Brand Name :
GUOMAT
Model Number :
1B6920
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5pcs
Price :
USD49.9-59.9/PC
Payment Terms :
L/C, T/T, Western Union Or Others
Supply Ability :
1000PCS/Week
Delivery Time :
3-7 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model :
Rubber Air Spring
Quality :
100 % Tested
Warranty :
12 Months
Position :
Industrial Machine
Type :
Gas-Filled
Firetsone No. :
W01-358-6920/W01-358-7043
Application :
Vibratory Conveyors
Goodyear :
1B12-305
Description

W013586920/W013587043 Firestone Rubber Air Spring 1B12-305 Goodyear Industrial Air Bellow

Product Description
Item Description
Brand: GUOMAT
Model: 1B6920
Main Material: High-strength synthetic rubber (wear-resistant and aging-resistant)
Cover Material: Galvanized steel (corrosion-resistant, enhances structural stability)
Applications: Industrial machinery vibration reduction, precision equipment protection, heavy-duty transport vehicle support, etc.
Warranty: 1-year limited warranty (from date of delivery)
Payment: T/T, Letter of Credit, PayPal
Delivery Time: Standard order: 3-7 business days
Packaging: Moisture-proof carton (export standard)

OEM Number:

Goodyear Part Number: 1B12-305

Goodyear Part Number: 1B 12-305

Goodyear Part Number: 1B12 305

Goodyear Part Number: 1B12305

Firestone Part Number: W013586920

Firestone Part Number: W01 358 6920

Firestone Part Number: W01-358-6920

Firestone Part Number: W013587043

Firestone Part Number: W01 358 7043

Firestone Part Number: W01-358-7043

Firestone Part Number: 6920

Firestone Part Number: 7043

Automann Part Number: ABSP2B22RA-7443


Specifications and Detailed Technical Parameters

Nut/blind nut
Threaded hole: 2X3/8-16
The hreaded hole distance of the cover plate: 6.2''

Air hole/air inlet/air fittings
Air hole/air inlet: 1/2NOTF or 3/8 NPTF
The screw center distance between the air hole and the nut: 2.88''

Cover plate
Top plate diameter: 9.0''
Diameter of the bottom cover: 9.0''

Rubber bellows
Maximum height: 7.2''
Minimum height: 2.6''


Bumper block/bumper block
No bumper block


Belt loop/Belt loop/Girdle hoop
With belt loop: Without

Single Convoluted Air Spring
Part Number Top Plate Hole/Stud Qty Bottom Piston Hole/Stud Qty Top Plate Dia. Bottom Plate Dia. Collapsed Height Flexmember Piston Piston Type
1B12-301 3 2 9 9 2.6 578-91-3-301 - -
1B12-305 3 2 9 9 2.6 578-91-3-301 - -
1B14-358 5 4 11.3 11.3 2.3 578-91-3-352 - -
1B14-350 5 4 11.3 11.3 2.5 578-91-3-351 - -
1B14-351 5 4 11.3 11.3 4.18 578-91-3-351 - -

The Related Picture

W013586920/W013587043 Firestone Rubber Air Spring 1B12-305 Goodyear Industrial Air BellowW013586920/W013587043 Firestone Rubber Air Spring 1B12-305 Goodyear Industrial Air Bellow
