Specifications
Brand Name :
GUOMAT
Model Number :
1B7451
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5pcs
Price :
USD49.9-59.9/PC
Payment Terms :
L/C, T/T, Western Union Or Others
Supply Ability :
1000PCS/Week
Delivery Time :
3-7 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model :
Rubber Air Spring
Quality :
100 % Tested
Warranty :
12 Months
Position :
Industrial Machine
Type :
Gas-Filled
Firestone :
W01-358-7451
Stroke :
50mm-140mm
Air Hole :
1/4NPTF
Description
W01-358-7451 Firestone Industrial Air Spring 1/4NPTF Air Lift Suspension Web Tensioning Device
Product Attributes
Attribute Value
Brand GUOMAT
Model No. 1B7451
Model Rubber Air Spring
Quality 100 % Tested
Warranty 12 Months
Position Industrial Machine
Type Gas-Filled
Paymeny T/T, Letter of Credit, PayPal
Packing Moisture-proof carton (export standard)
OEM Numbers
  • Firestone Style Number: 110
  • Firestone Part Number: W01 358 7451
  • Firestone Part Number: W01-358-7451
  • Firestone Part Number: W013587451
  • Firestone Part Number: 7451
Specifications and Technical Parameters

Nut/Blind Nut:

  • Threaded hole: 2X3/8-16UNC
  • The threaded hole distance of the cover plate: 44.5mm

Air Hole/Air Inlet/Air Fittings:

  • Air hole/air inlet: 1/4 NPTF
  • The center distance between the air hole and the threaded hole: 22.25mm

Cover Plate:

  • Top plate diameter: 115mm
  • Diameter of the bottom cover: 115mm

Rubber Bellows:

  • The rubber bellows maximum outer diameter: 205mm
  • Maximum height: 140mm
  • Minimum height: 50mm

Bumper Block: No bumper block

Belt Loop: Without

Firestone Style 110 Single Convoluted Air Spring

FIRESTONE W013587451/WO13587451

FIRESTONE W01 358 7451/WO1 358 7451

FIRESTONE W01-358-7451/WO1-358-7451

 Bind Nuts,1/4NPT

FIRESTONE W013587484/WO13587484

FIRESTONE W01 358 7484/WO1 358 7484

FIRESTONE W01-358-7484/WO1-358-7484

 Bind Nuts,3/4NPT

FIRESTONE W013580112/WO13580112

FIRESTONE W01 358 0112/WO1 358 0112

FIRESTONE W01-358-0112/WO1-358-0112

 Socket head aluminmum bead rings(bolts,nuts,washers not included-use 1/4 cap screws)

FIRESTONE W013580100/WO13580100

FIRESTONE W01 358 0100/WO1 358 0100

FIRESTONE W01-358-0100/WO1-358-0100

 Rubber bellows only
Force Table
Assembly Height(in.) Volume@100PSIG(in3) Pounds Force
@20PSIG @40PSIG @60PSIG @80PSIG @100PSIG
4.0 117 390 810 1240 1700 2160
3.0 91 490 1010 1540 2090 2650

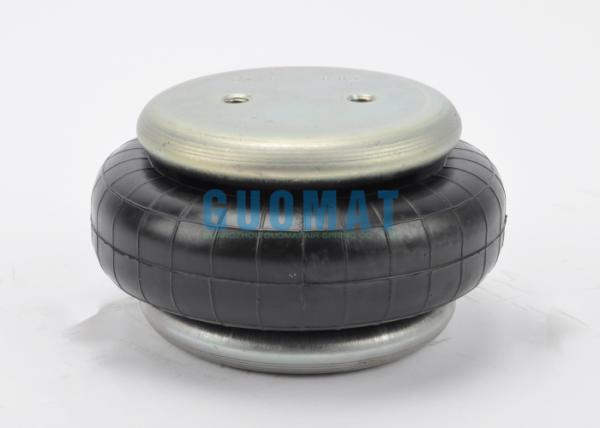

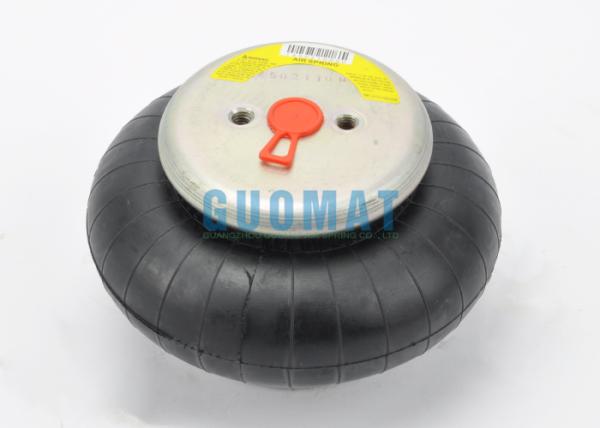

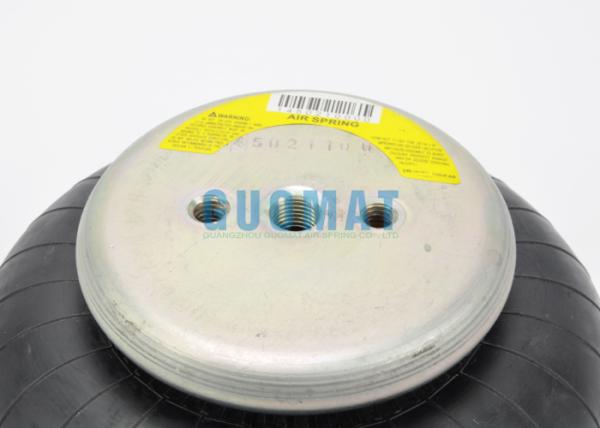

Product Images
