FD 200-19 510 Firestone Suspension Air Bags 2B9-245 Goodyear Convoluted Rubber Bellows

Product Description

The GUOMAT 2B7788 is a high-performance air spring designed to replace Goodyear 2B9-245 models. Utilizing high-quality rubber and high-strength cord, it offers exceptional durability, sealing, and fatigue resistance, effectively filtering road vibrations and enhancing ride comfort and vehicle stability. Easy to install, it's an ideal repair and upgrade for suspension systems on commercial trucks, buses, and other vehicles.

GUOMAT Number: 2B7788

Compatible with Goodyear: 2B9-245 / 2B 9-245

Compatible with Goodyear: 578923202 / 578-92-3-202 / 578 92 3 202

Compatible with Contitech: 64519

Compatible with Contitech: FD200-19 510 / FD 200-19 510

Compatible with Contitech: 7788

Compatible with Contitech: W01-358-7788 / W01 358 7788 / W013587788

Compatible with Automann: ABSP2B12R-7788

Compatible with Triangle: 4510

Compatible with Watson&Chalin: AS-0088

Technical Data

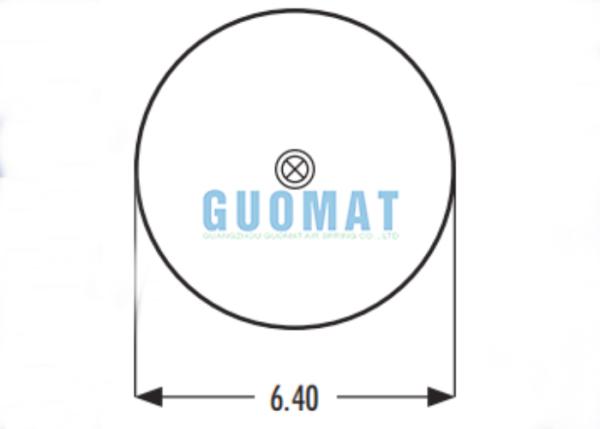

1. Top cover diameter: 160mm
2. Bottom cover diameter: 160mm
3. Center-to-center distance between bottom threaded holes: 89mm
4. Maximum outer diameter: 251.5mm

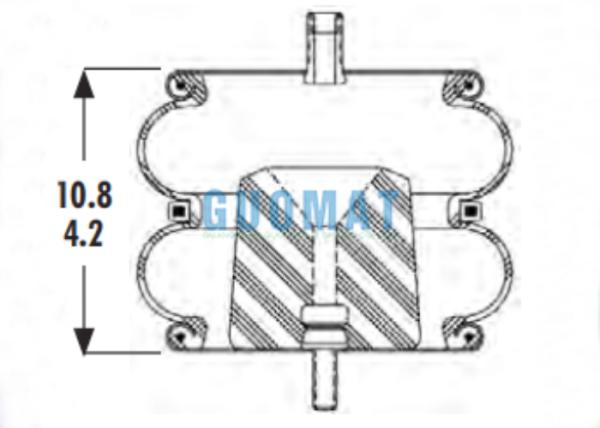

5. Maximum height: 274mm
6. Minimum height: 95mm

About Shipping

(1) Your goods will be shipped within 1-7 days after payment. We will use fast and secure express delivery methods such as DHL, TNT or FEDEX, and it will take about 5-10 days to reach most countries/regions in the world.

(2) We hope that the goods will be delivered on time, but since this is an international delivery, the actual delivery time depends on the logistics company and local customers.

(3) For any problems caused by the shipping service, such as accidents, delays or other problems, we will actively handle it for you.

(4) Any import fees are borne by the buyer.

GUOMAT Other Air Spring Models

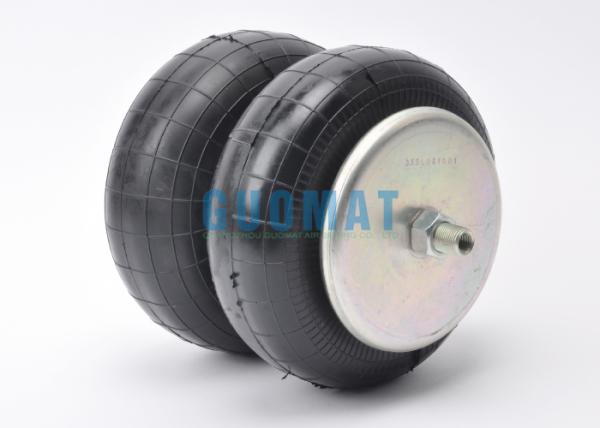

Real Product Picture
