Specifications
Brand Name :
GUOMAT
Model Number :
GF 40/60-1
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$89.9-119.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Model Name :
Industrial Air Spring
Bellow No :
2 3/4" x 1
Material :
Rubber and Steel
Warranty :
12 Months
Function :
Reduce Shock
Cross No. :
Contitech FS 22-3
Dunlop :
SP2906
Air Hole :
G1/4
Description

GF 40/60-1 Convoluted Air Springs FS 22-3 DI CR Contitech Rubber Bellow Air Actuator

Product Description

Item: Single Convoluted Type Industrial Air Spring

Brand: GUOMAT

Model Number: GF 40/60-1

Bellows Number: 2.75X1

Warranty: 12 Months

Main Material: Rubber

Position: Industrial Machine

Function: Reduce Vibration, Cushioning

OE Manufacturer Number

DUNLOP PNEURIDE: 2 3/4" x 1

DUNLOP SPRINGRIDE: SP2906

DUNLOP SPRINGRIDE: SP 2906

CONTITECH: FS 22-3

CONTITECH: FS 22-3 DI

CONTITECH: FS 22-3 DI CR

CONTITECH: FS 22-3 DI G1/4

CONTITECH: FS 22-3 DI G1/4 M6

GF 40/60-1 Technical Data

Air Fitting: G1/4

Blind Nut: M6X8mm

Center Distance Between Blind Nuts: 36mm

The Cover Plater Diameter: 78mm

Maximum Outer Diameter: 80mm

Maximum Height: 70mm

Minmum Height: 50mm

Vibration isolation - dynamic characteristic values
Pressure P bar 3 4 5 6 7 8 Vol V(I)
Force(Load) KN 0.9 1.2 1.5 1.7 2 2.3 0.084
Spring Rate C N/cm 840 1030 1230 1420 1620 1800
Natural Frequenz f0 Hz 4.9 4.7 4.6 4.5 4.5 4.4

Pneumatic application - static characteristic values
Forcr F (kN)
Pressure P bar 3 4 5 6 7 8 Vol V(I)
height H(mm) 60 0.84 1.11 1.39 1.68 1.97 2.26 0.08
50 1.41 1.78 2.16 2.53 2.91 3.3 0.05

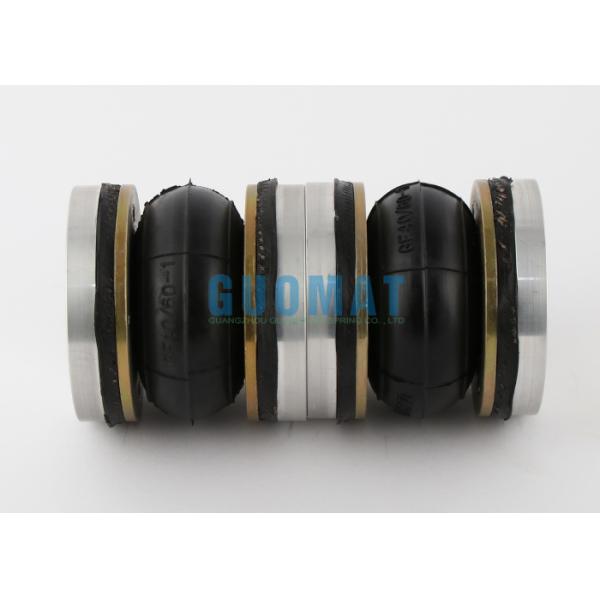

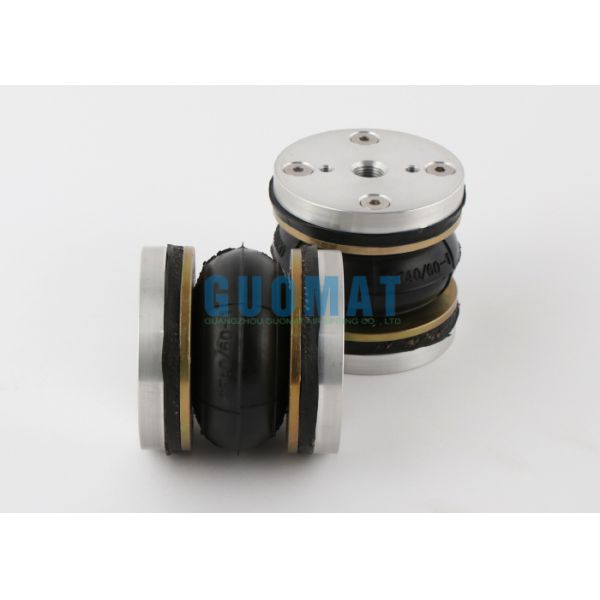

Product Images

GF 40/60-1 Convoluted Air Springs FS 22-3 DI CR Contitech Rubber Bellow Air ActuatorGF 40/60-1 Convoluted Air Springs FS 22-3 DI CR Contitech Rubber Bellow Air Actuator
