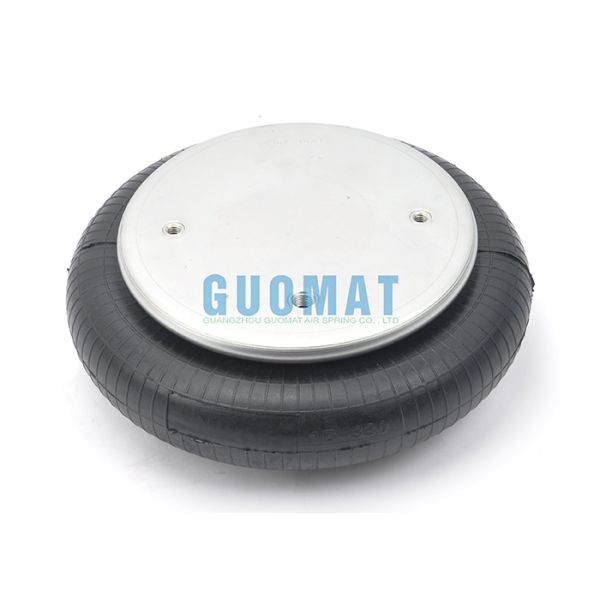

3/4NPT Single Convoluted Air Spring W01-358-7012 Firestone Industrial Air Rubber Bags
3/4NPT Single Convoluted Air Spring W01-358-7012 Firestone Industrial Air Rubber Bags
3/4NPT Single Convoluted Air Spring W01-358-7012 Firestone Industrial Air Rubber Bags
3/4NPT Single Convoluted Air Spring W01-358-7012 Firestone Industrial Air Rubber Bags
3/4NPT Single Convoluted Air Spring W01-358-7012 Firestone Industrial Air Rubber Bags
3/4NPT Single Convoluted Air Spring W01-358-7012 Firestone Industrial Air Rubber Bags
3/4NPT Single Convoluted Air Spring W01-358-7012 Firestone Industrial Air Rubber Bags
3/4NPT Single Convoluted Air Spring W01-358-7012 Firestone Industrial Air Rubber Bags
Specifications
Brand Name :
GUOMAT
Model Number :
1B5330M8-G3/4
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6PCS
Price :
$109.9-119.9/pc
Payment Terms :
L/C, T/T,
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Product Name :
Air Spring/Airbag/Air Suspension
Warranty :
1 Year
Material :
Rubber + Steel
Packing :
Brown Carton
Firetsone :
W01-358-7012
Convolution :
Single Convoluted Type
Color :
Black
Other Name :
Rubber Air Balloon
Description
3/4NPT Single Convoluted Air Spring W01-358-7012 Firestone Industrial Air Rubber Bags
3/4NPT Single Convoluted Air Spring W01-358-7012 Firestone Industrial Air Rubber Bags
Product Details
  • GUOMAT NO.: 1B5330M8-G3/4
  • Name: Single Convoluted Industrial air spring
  • Warranty: 1 Year
  • Material: Rubber bellows and steel cover plate
  • Certification: ISO/TS16949:2009
  • Packing: Brown arton with (air spring), packed according to customer's requirements
  • Scope of application: Shock absorption of industrial equipment
  • Payment: T/T, PayPal,
  • Shipment: Ship by air, by sea, by truck or by express
Rubber Air Bellows Technical Data
Top cover plate diameter: 231mm
Air hole: G3/4
Threaded hole of top cover plate: 2XM8X1.25
Center distance between threaded holes: 157.5mm
Center distance from threaded hole to air hole: 69.5mm
Bottom cover plate diameter: 231mm
Threaded hole of bottom cover plate: 2XM8X1.25
Center distance between threaded holes: 157.5mm
Maximum outer diameter: 325mm
Minimum compression height: 55mm
Maximum height: 160mm
OEM Number
FIRETSONE Number:
  • Style 19
  • W01-358-7012 / WO1-358-7012
  • W01 358 7012 / WO1 358 7012
  • W013587012 / WO13587012
CONTITECH Number:
  • FS 330-11 CI 3/4 NPT OS B
  • FS 330-11 CI 3/4 NPT
  • FS330-11 CI 3/4 NPT
  • 79114
  • FS330-11CI3/4NPTOSB
GOODYEAR Number:
  • 1B12-300
  • 1B12 300
  • 1B12300
  • 1B12-313
  • 1B12 313
  • 1B12313
  • GOODYEAR Bellows Number: 578-91-3-301
  • GOODYEAR Bellows Number: 578 91 3 301
  • GOODYEAR Bellows Number: 578913301
Other Numbers:
  • Triangle Part Number: 4474
  • Triangle Bellows Number: 6374
  • Holland (Neway) Number: 905-57-226
Assembly Height(in.) Volume@ 100PSIG(in3) Pounds Force
5.0 394 780 | 1690 | 2640 | 3730 | 4870
4.0 327 1300 | 2610 | 4060 | 5500 | 7050
3.0 244 1580 | 3280 | 5000 | 6720 | 8440
We Proudly Offer the Highest Quality Replacement Air Springs that Exceed OEM Requirements.
