Specifications
Brand Name :
GUOMAT
Model Number :
2B6910
Certification :
ISO/Ts16949:2009
Place of Origin :
Guangzhou, China
MOQ :
6pcs
Price :
$59.9-69.9/pc
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10,000 Per Week
Delivery Time :
5-8 Working Days
Packaging Details :
Carton packaging or packaging according to customer requirements
Type Name :
Suspension Air Spring Bags
Spring Material :
Natural Rubber
Quality :
100 % Tested
Warranty :
12 Months
Color :
Black
Goodyear :
2B9-200
Position :
Rear
Usage :
Car,Truck,Trailer,Etc.
Description

2B9-200 Goodyear Replacement Air Spring FD 200-19 320 Contitech RV Air Suspension
Cross Reference Number

Goodyear OEM Number: 2B9-200 / 2B 9-200 / 2B9 200

Goodyear Bellows Number: 578-92-3-202 / 578 92 3 202 / 578923202

Contitech OEM Number: 64267

Contitech OEM Number: FD200-19 320 / FD 200-19 320

Firestone OEM Number: 6910

Firestone OEM Number: W01-358-6910 / W01 358 6910 / W013586910

AUTOMANN ABSP2B12R-6910
DAYTON 354-6910
DINA A-8127-19
GRANNING 1371
HDA PMABG-6910B
HENDRICKSON 45843-3 / B-8768
INT’L/NAVISTAR 554783C1
LOAD GUARD SC2011
MASA 227138412
PREVOST 63-0173
R&S TRUCK & BODY 1027405
RIDEWELL 1003586910C / S-4512-C
SPRINGRIDE 2B9-492
TAURUS AS218-6910
TRIANGLE 4320
TRP A69100
WATSON & CHALIN AS-0001

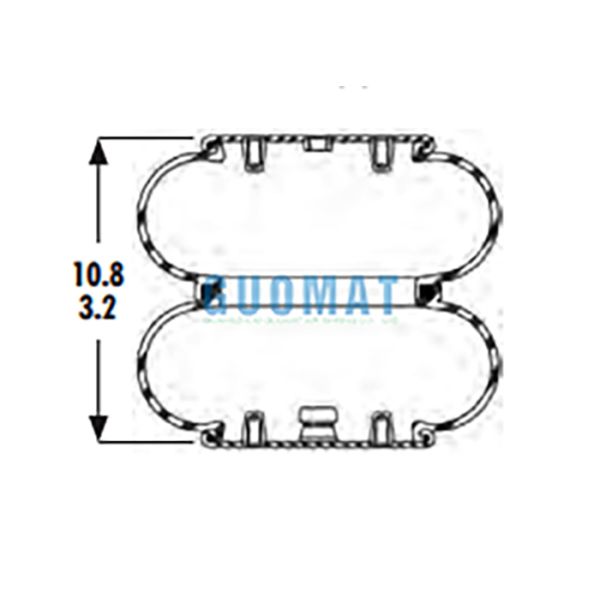

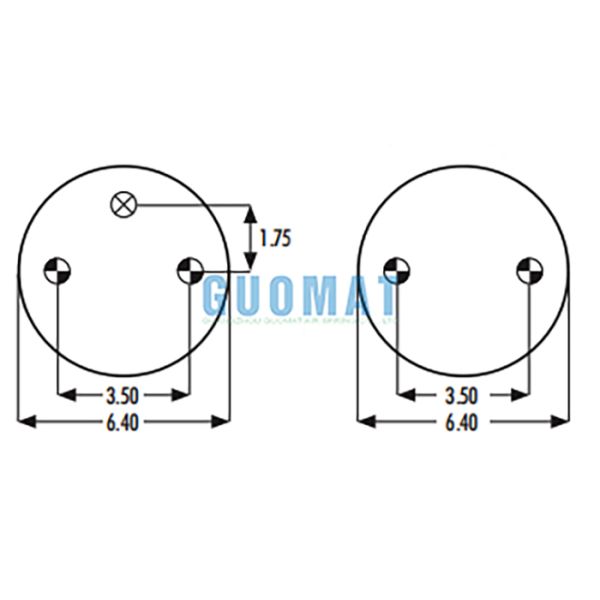

Installation & Dimensional Data
ParameterTop PlateBottom Plate
Mounting Holes/Studs32
Plate Diameter6.4 in6.4 in
Bolt Circle Diameter (C to C)3.5 in3.5 in
Alignment-Parallel

Other Specifications:

Internal Bumper: Not Included

Min. Height: 3.2 in

Max. Height: 10.8 in

Total Stroke: 7.6 in


RV Air Spring Application Guide
Air springs in RVs are primarily used to improve suspension comfort, enhance load-bearing capacity, and improve overall vehicle stability during long journeys.
GUOMAT air springs are widely applicable to Class B and Class C RVs and various recreational vehicle chassis.

Main Application Scenarios
1. Rear Axle Assist Load Bearing. The rear of an RV is heavily loaded, and the original leaf springs tend to sag.
Air springs provide additional support, resulting in:

  • Reduced rear-end sag
    Reduced sway, improving driving stability
    Protecting chassis and suspension components

2. Improved Driving Comfort. Air springs absorb minor vibrations, making the vehicle smoother on highways, bumpy roads, or campground roads.

  • Benefits include:
    Significantly reduced bumps
    Reduce vibration of interior furniture and equipment
    Improved long-distance travel experience
