2B9-240 Goodyear Air Bellow 578-92-3-202 Flange Air Spring For Car Air Suspension
2B9-240 Goodyear Air Bellow 578-92-3-202 Flange Air Spring For Car Air Suspension
2B9-240 Goodyear Air Bellow 578-92-3-202 Flange Air Spring For Car Air Suspension
2B9-240 Goodyear Air Bellow 578-92-3-202 Flange Air Spring For Car Air Suspension
2B9-240 Goodyear Air Bellow 578-92-3-202 Flange Air Spring For Car Air Suspension
2B9-240 Goodyear Air Bellow 578-92-3-202 Flange Air Spring For Car Air Suspension
2B9-240 Goodyear Air Bellow 578-92-3-202 Flange Air Spring For Car Air Suspension
2B9-240 Goodyear Air Bellow 578-92-3-202 Flange Air Spring For Car Air Suspension
Specifications
Brand Name :
GUOMAT
Model Number :
2B9240
Certification :
ISO/Ts16949:2009
Place of Origin :
Guangzhou, China
MOQ :
6pcs
Price :
$129.9-139.9/pc
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10,000 Per Week
Delivery Time :
5-8 Working Days
Packaging Details :
Carton packaging or packaging according to customer requirements
Type Name :
Suspension Air Spring
Spring Material :
Natural Rubber
Quality :
100 % Tested
Warranty :
12 Months
Color :
Black
Convolutions :
2
Goodyear :
2B9-240 / 578-92-3-202
Connection :
Bolt
Description
2B9-240 Goodyear Air Bellow 578-92-3-202 Flange Air Spring For Car Air Suspension
Product Information
  • GUOMAT Brand
  • GUOMAT Part Number: 2B9240
  • Material: Rubber+Steel
  • Warranty: 1 Year
  • Type: Double Convoluted Air Spring with Flange Ring
  • Delivery Time: 2-7 Working Days
  • Payment Methods: Bank Card, PayPal, Western Union
  • Shipping Methods: International Express, Air, Ocean, Railway, Truck
Compatible Air Spring
Goodyear Bellows Number: 578-92-3-202 / 578 92 3 202 / 578923202
Goodyear Part Number: 2B9-240 / 2B 9-240 / 2B9 240
Firestone Bellows Number: 7119
Firestone Style Number: Style 202
Firestone Part Number: W01-358-7119 / W01 358 7119 / W013587119
MCI Number: 12C-1-36
PREVOST Number: 63-0166
Technical Data

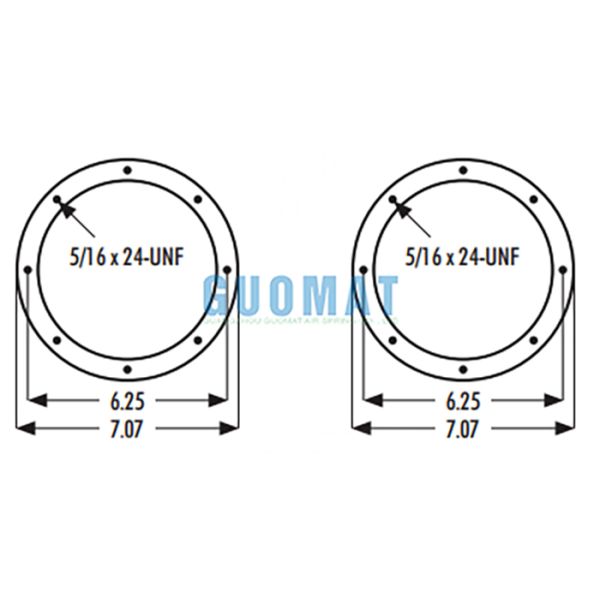

Top Plate Hole/Stud Qty: 8
Top Plate Dia: 7.07
Top Plate C to C Diameter: 6.25
Bottom Plate Hole Stud Qyt: 8
Bottom Plate Dia: 7.07
Bottom Plate C to C Diameter: 6.25
Bottom Plate Alignment: Parallel
Bumper: No

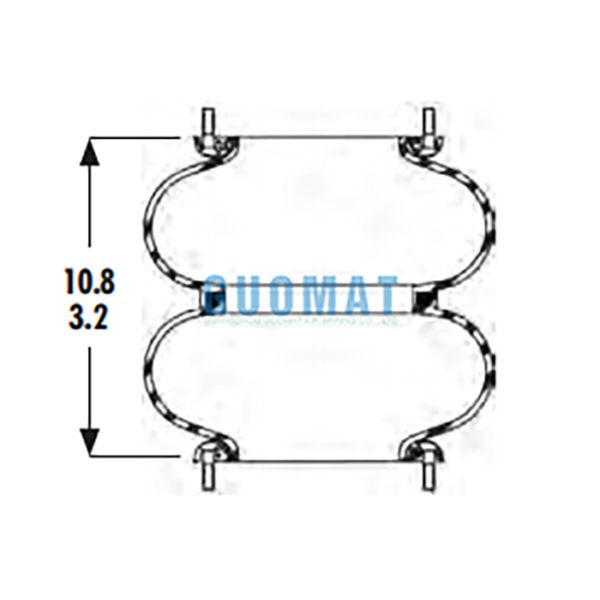

Min Height: 3.2
Max Height: 10.8
Firestone W01-358-7119 Suspension Air Spring Force Table

Assembly Height

(in.)

Volume@100PSIG

(in3)

 Pounds Force
@20PSIG @40PSIG @60PSIG @80PSIG @100PSIG
9.0 392 392 770 1195 1642 2114
8.0 365 576 1128 1713 2309 2940
7.0 331 707 1396 2104 2832 3582
6.0 291 806 1601 2410 3237 4082
5.0 247 903 1796 2702 3624 4562
4.0 197 993 1966 2953 2948 4958

Advantages of Air Springs Installed on Vehicle Suspension

1. Improved Driving Comfort

Air springs automatically adjust air pressure according to load, maintaining a stable vehicle height.

Effectively absorbs road impacts, reduces vibration, and improves ride comfort.

2. Improved Handling and Vehicle Stability

Supports adjustable vehicle height, making the vehicle more stable at high speeds or when cornering.

Reduces body roll, pitching, and bouncing, improving overall handling safety.

3. Protects Vehicle Structure and Components

Effectively reduces impact forces on components such as the frame, axles, and cargo box, extending the vehicle's lifespan.

Reduces vibration damage for cargo transport vehicles.

4. Supports Automatic Leveling

Maintains a consistent vehicle height regardless of load.

Especially suitable for RVs, buses, trailers, and heavy-duty trucks.

5. Reduced Noise

The rubber structure absorbs high-frequency vibrations, making the vehicle run more quietly.
