2B9-210 Goodyear Double Convoluted Air Spring FD 200-19 362 Contitech Modified Car Air Suspension
2B9-210 Goodyear Double Convoluted Air Spring FD 200-19 362 Contitech Modified Car Air Suspension
2B9-210 Goodyear Double Convoluted Air Spring FD 200-19 362 Contitech Modified Car Air Suspension
2B9-210 Goodyear Double Convoluted Air Spring FD 200-19 362 Contitech Modified Car Air Suspension
2B9-210 Goodyear Double Convoluted Air Spring FD 200-19 362 Contitech Modified Car Air Suspension
2B9-210 Goodyear Double Convoluted Air Spring FD 200-19 362 Contitech Modified Car Air Suspension
2B9-210 Goodyear Double Convoluted Air Spring FD 200-19 362 Contitech Modified Car Air Suspension
2B9-210 Goodyear Double Convoluted Air Spring FD 200-19 362 Contitech Modified Car Air Suspension
Specifications
Brand Name :
GUOMAT
Model Number :
2B6908
Certification :
ISO/Ts16949:2009
Place of Origin :
Guangzhou, China
MOQ :
6pcs
Price :
$59.9-69.9/pc
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10,000 Per Week
Delivery Time :
5-8 Working Days
Packaging Details :
Carton packaging or packaging according to customer requirements
Type Name :
Suspension Air Spring Bags
Spring Material :
Natural Rubber
Quality :
100 % Tested
Warranty :
12 Months
Color :
Black
Goodyear :
2B9-210 / 578-92-3-202
Stroke :
3.2 inches-10.8 inches
Firestone :
W01-358-6908
Description

2B9-210 Goodyear Double Convoluted Air Spring FD 200-19 362 Contitech Modified Car Air Suspension

Product Description

Air springs for modified cars are special components used in vehicle suspension systems to enhance driving experience and vehicle performance. They adjust suspension stiffness and height using air pressure, providing greater flexibility. Compared to traditional steel springs, air springs better adapt to different road conditions, reducing vibration and impact, and improving comfort and stability. Especially in modified cars, air springs can adjust the ride height according to the owner's needs, improving handling performance and even modifying the vehicle's appearance. Through automatic or manual adjustment systems, owners can easily change the suspension settings to suit different driving conditions or styles.

Brand: GUOMAT

Model Number: 2B6908

Material: Rubber and Steel

Warranty: 12 Months

Goodyear Part Number: 2B9-210 / 2B 9-210 / 2B9 210

Goodyear Bellows Number: 578-92-202 / 578 92 202 / 57892202

Contitech Part Number: 64511

Contitech Part Number: FD200-19 362 / FD 200-19 362

Firestone Part Number: 6908

Firestone Part Number: W01-358-6908 / W01 358 6908 / W013586908

AUTOMANN ABSP2B12R-6908
TRIANGLE 4362
TRP AS69080
WATSON&CHALIN AS-0035.

Technical Data

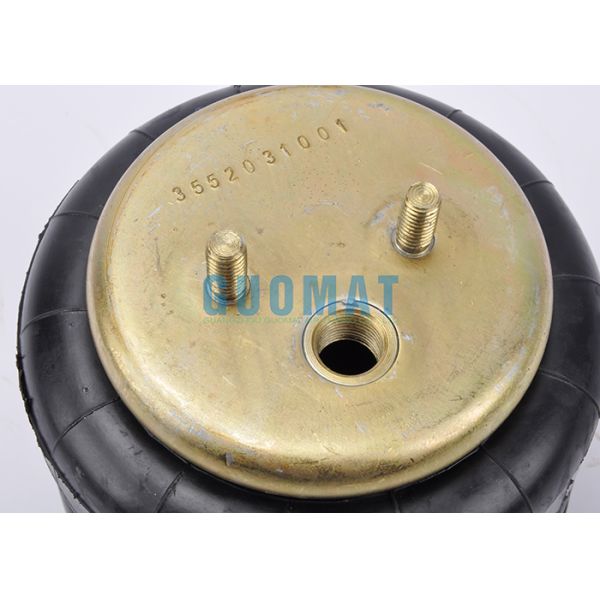

This product features 2 mounting holes/studs on both the top and bottom plates. The plate diameter is 6.4 inches for both, with a bolt circle diameter of 3.5 inches. The bottom plate is aligned parallel to the top plate. No internal bumper is included. The unit operates with a minimum height of 3.2 inches and a maximum height of 10.8 inches, providing a total stroke of 7.6 inches.

Goodyear Double Convoluted Air Spring

Part Number Top Plate Hole/Stud Qty Bottom Plate Hole/Stud Qty Top Plate Dia. Bottom Plate Dia. Collapsed Height Flexmember
2B9-229 1 1 6.4 6.4 2.9 578-92-3-211
2B9-245 1 1 6.4 6.4 3.8 578-92-3-202
2B9-218 1 2 6.4 6.4 3.5 578-92-3-206
2B9-230 1 2 6.4 6.4 3.8 578-92-3-202
2B9-246 2 1 6.4 6.4 3.8 578-92-3-211
2B12-304 2 1 9 9 3.4 578-92-3-309
2B12-411 2 1 9 9 3.5 578-92-3-309
2B12-412 2 1 9 9 4.2 578-92-3-309
2B9-244 2 2 6.4 6.4 3.8 578-92-3-202
2B9-252 2 2 6.4 6.4 3.8 578-92-3-206
2B9-254 2 2 6.4 6.4 3.8 578-92-3-206
2B9-265 2 2 6.4 6.4 3.8 578-92-3-206
2B9-266 2 2 6.4 6.4 3.8 578-92-3-208
2B12-410 2 2 9 9 3.5 578-92-3-309
2B12-427 2 2 9 9 3.5 578-92-3-309
2B12-432 2 2 9 9 3.5 578-92-3-309
2B12-434 2 2 9 9 3.5 578-92-3-310
2B12-307 2 2 9 9 3.5 578-92-3-305
2B12-313 2 2 9 9 3.5 578-92-3-309
2B12-317 2 2 9 9 3.5 578-92-3-310

2B9-210 Goodyear Double Convoluted Air Spring FD 200-19 362 Contitech Modified Car Air Suspension2B9-210 Goodyear Double Convoluted Air Spring FD 200-19 362 Contitech Modified Car Air Suspension
