Specifications
Brand Name :
GUOMAT
Model Number :
2H250180
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6PCS
Price :
$139.9-149.9/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Product Name :
Industrial Air Spring/Air bags/Air Ballons/Air Lift
Material :
Hight Quality Rubber
Warranty :
12 Months
OEM :
Available
Cross No. :
Tor-Press 245 Model
Standard :
93740
Convolutions :
2
Connecting Holes :
M 8 x 1.25
Description

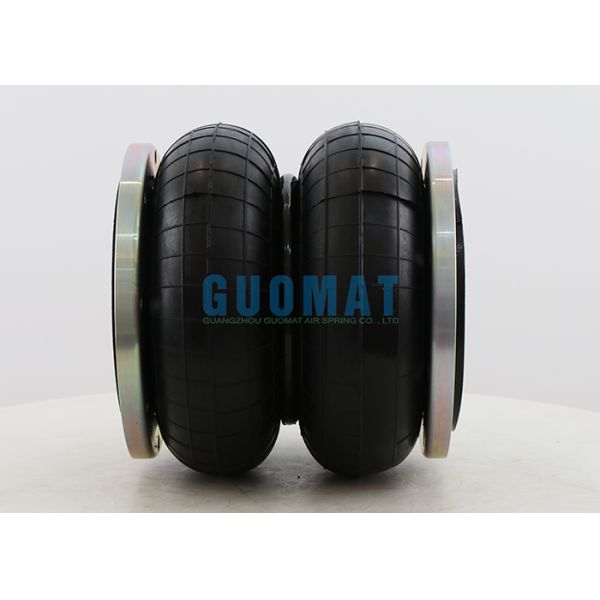

Universal Air Lift Bag 245 Model 93740 Double Convoluted Air Spring For Industrial Machine

Product Data Information

Brand: GUOMAT

Model: 2H250180

Replace Tor-press 245

Replace Standard Code 93740

Technical Data

Connection F1
Max.OD 270 mm
Min.Height 85 mm
Max.Height 245 mm
Static Height 165 mm
Effec.Area 169 cm2
Cap. 1150 daN
Freq. 127 cicli/1'
Stiffness 12 DaN/mm
Threaded Air Hole -
Center Distance of Holes 145 mm
Flange Diameter 200 mm
Connecting Number 8pcs
Bolts or Holes M8X1.25

Total Travel 225mm
Thrusts Max. 2680daN
Thrusts Min. 740daN

Thrusts in daN Pressures P=0.6 MPa (6 bar) Based On Travel

(Travel in mm)

 (0) 2680
(20) 2620
(40) 2560
(60) 2460
(80) 2320
(100) 2160
(120) 1960
(140) 1760
(160) 1540
(180) 1300
(200) 1060
(220) 810

How Do Air Springs with Flange Connections Operate?

Simply put, flange-connected air springs change their internal air pressure by filling and expelling compressed air, thus achieving functions such as height adjustment, load support, and vibration damping/isolation.

Inflation (Raising/Loading): Compressed air is filled into the air chamber, increasing the internal pressure. This causes the air chamber to expand, increasing its height and thus lifting the load above it, providing rigid support.

Deflation (Lowering/Unloading): The compressed air is released from the air chamber, decreasing the internal pressure. The air chamber contracts under the weight of the load, lowering its height, and the load decreases accordingly.

Maintaining (Constant Support): After filling with an appropriate amount of air, the system is closed to maintain a constant internal air pressure, thus providing a stable support height and load-bearing capacity.
