16 x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment
16 x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment
16 x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment
16 x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment
16 x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment
16 x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment
16 x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment
16 x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment
16 x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment
16 x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment
Specifications
MOQ :
6PCS
Delivery Time :
2-8 work days
Number Of Convolutions :
Double
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Model :
Convoluted Air Bags
Usage :
Industrial
Model Number :
2B16X2T
Bellow Number :
16X2
Brand Name :
GUOMAT
Firestone :
W01R584067
Price :
Negotiable
Cross Reference :
Contitech FD 816-30
Supply Ability :
1000pcs/week
Working Temperature :
-40℃+70℃
Warranty Special :
1 Year
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
Packaging Details :
Strong Carton Box Or As Customers Need
Description

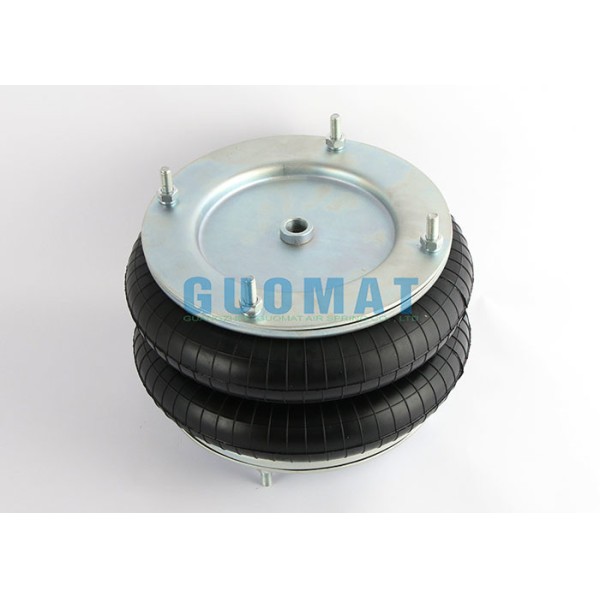

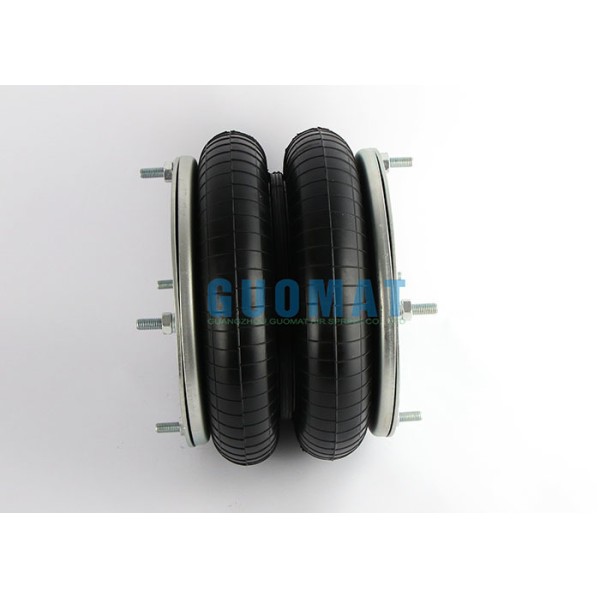

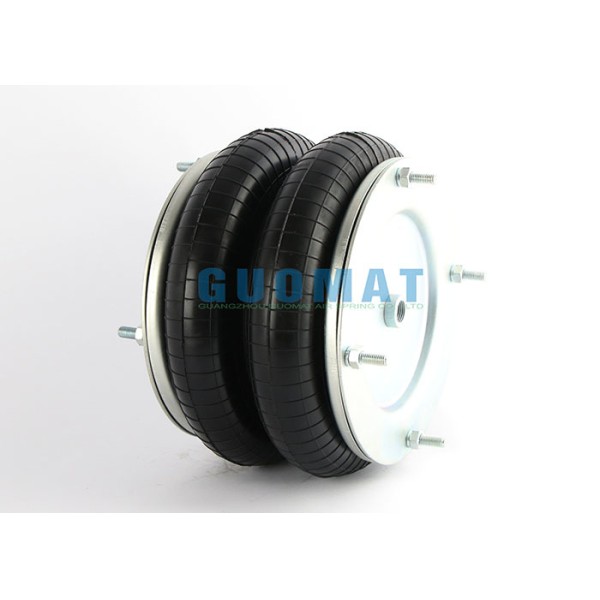

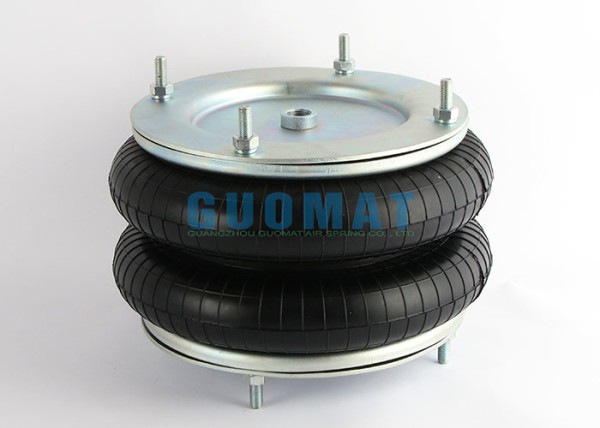

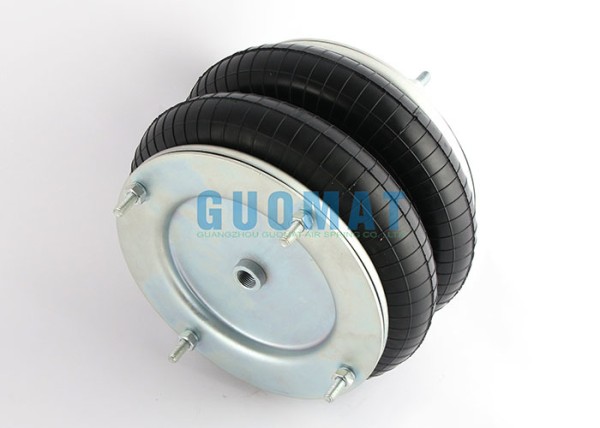

16" x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring
Designed for tooling equipment, this double convoluted rubber air spring provides reliable performance and durability.
Product Overview
The GUOMAT 2B16X2T air spring is manufactured with high-quality materials and superior craftsmanship, serving as a complete replacement for the Firestone W01R584067.
This product uses high-toughness natural/synthetic composite rubber and imported cord reinforcement materials, adhering to ISO international quality standards. Fully compatible with the original Firestone W01R584067 in interface dimensions, working stroke, and rated load capacity, making it ideal for bus suspensions, commercial vehicle cab vibration damping, and industrial equipment vibration isolation.
Product Specifications
Product NameFlange Air Spring
BrandGUOMAT
Model No.2B16x2T
Convolutions2
Warranty1 Year
MaterialRubber and Steel
Compatible OEM Numbers
  • Firestone Style: 16''X2, 16X2
  • Firestone Number: W01R584067, W01 R58 4067, W01-R58-4067
  • Dunlop Number: SP1557
  • Contitech Number: FD816-30DS, FD 816-30DS, FD 816-30 DS
  • Norgrem Number: M/31162, M 31162, M31162
  • Parker Number: 9109171

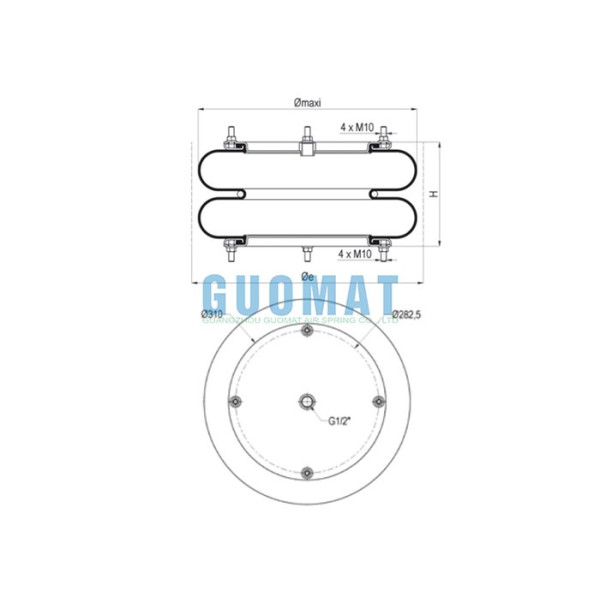

Technical Specifications
Air port inletG1/2
Rec/Max pressure5,5/8 bar
Force(N)@0 bar to H(mm)120(80)
Weight9.70KG
Max. outer diameter440mm
Min. height75mm
Max. height325mm
Recommended height300mm
Dynamic Characteristic Values
Pressure P (bar)246
Force(load)(kN)127025753865
Stiffness(daN/cm)126.0228.0323.0
Natural frequency(hz)1.61.51.4
Vol.V(cm3)242502485025460
H2 rec for isolation(mm)290290290
Product Images
