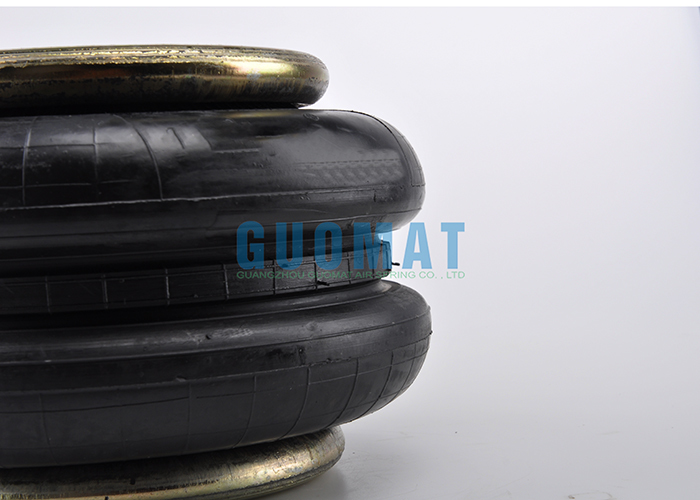

Style 224 Firestone Industrial Air Spring W01-M58-6400 Vibration Dampening System
Style 224 Firestone Industrial Air Spring W01-M58-6400 Vibration Dampening System
Style 224 Firestone Industrial Air Spring W01-M58-6400 Vibration Dampening System
Style 224 Firestone Industrial Air Spring W01-M58-6400 Vibration Dampening System
Specifications
Model Number :
2B6400
Style :
Style 224
MOQ :
6PCS
Delivery Time :
2-8 work days
Item Name :
Industrial Air Spring
Payment Terms :
L/C,D/A,D/P,T/T
Sample :
Available
Fuction :
Reduce Shock
Brand Name :
GUOMAT
Spring Material :
Rubber And Steel
Packaging Details :
Strong Carton Box Or As Customers Need
Price :
$59.9-69.9/pc
Transport Package :
Neutral Boxes
Supply Ability :
1000pcs/week
Tempera Turerange :
-40°C to 70°C
Certification :
ISO/TS16949:2009
Air Fitting :
1/4BSP
Place of Origin :
GuangDong, China
Description
Style 224 Firestone Industrial Air Spring W01-M58-6400 Vibration Dampening System
Direct replacement for Firestone W01-M58-6400 industrial air spring designed for vibration isolation and dampening applications.
Product Specifications
Item Specification
GUOMAT No. 2B6400
Equivalent Firestone W01-M58-6400
Firestone Style Style 224
Type Two-Ply Convoluted Air Spring
Application Industrial Vibration Dampening
Air Inlet 1/4 BSP
Mounting M8 Blind Nuts
Blind Nut Center Distance 70 mm
Max. Diameter Approx. 203 mm
Recommended Design Height Approx. 165 mm
Material Rubber Bellows + Steel Components
Compatible Part Numbers
  • FIRESTONE STYLE 224
  • FIRESTONE W01-M58-6400 (Blind Nuts, 1/4BSP)
  • FIRESTONE W01-358-5101 (Rubber Bellows Only)
  • FIRESTONE W01-358-3407 (Countersunk Steel Bead Ring)
Technical Data
  • 1/4BSP Air Inlet
  • M8X1.25 Blind Nuts 15mm Deep
  • 70mm Center-to-center Distance Between Threaded Holes
  • 135mm Cover Plate Diameter
  • 203mm Max.O.D At 7BAR
  • 229mm Max.Height
  • 71mm Min.Height
  • 165mm Design Height
Typical Applications
  • Industrial vibration isolation systems
  • Machine mounting and vibration dampening
  • Automation equipment
  • Press and forming machinery
  • Manufacturing equipment
  • Shock and impact absorption systems
  • Load support systems
  • Industrial machinery requiring pneumatic isolation
GUOMAT Advantages
  • Direct replacement for Firestone W01-M58-6400
  • Durable rubber bellows and steel components
  • Suitable for industrial vibration isolation applications
  • Stable load support and shock absorption performance
  • OEM and customized requirements supported
  • Quality-controlled manufacturing
  • 12-month warranty
Style 224 Firestone Industrial Air Spring W01-M58-6400 Vibration Dampening System
