EB-325-215 FESTO Air Bellows Replacement FD330-22 Contitech Air Spring For Tooling Equipment
EB-325-215 FESTO Air Bellows Replacement FD330-22 Contitech Air Spring For Tooling Equipment
EB-325-215 FESTO Air Bellows Replacement FD330-22 Contitech Air Spring For Tooling Equipment
EB-325-215 FESTO Air Bellows Replacement FD330-22 Contitech Air Spring For Tooling Equipment
EB-325-215 FESTO Air Bellows Replacement FD330-22 Contitech Air Spring For Tooling Equipment
EB-325-215 FESTO Air Bellows Replacement FD330-22 Contitech Air Spring For Tooling Equipment
Specifications
Model Number :
2B6330D
Warranty :
1 Year
MOQ :
6pcs
Delivery Time :
3-7 Working Days
Sample And Oem :
Available
Brand Name :
GUOMAT
Material :
Rubber and Steel
Packaging Details :
Strong Carton Box Or As Customers Need
Payment Terms :
L/C,D/A,D/P,T/T
Use Range :
Industrial Machine
Part :
Air Spring
Price :
US$79.9-99.9/PC
Firestone Bellows Number :
22
Supply Ability :
1000pcs/week
Fitment Type :
Direct Replacement
Certification :
ISO/TS16949:2009
Style :
Two Ply Bellows
Place of Origin :
China
Description
EB-325-215 FESTO Air Bellows Replacement FD330-22 Contitech Air Spring For Tooling Equipment
This industrial air bellow provides reliable vibration isolation, shock absorption, and load support for tooling equipment and industrial machinery applications.
Product Specifications
ItemSpecification
BrandGUOMAT
GUOMAT No.2B633D
TypeDouble Convoluted Air Spring
Product TypeIndustrial Air Bellow
MaterialRubber + Steel
ApplicationTooling Equipment / Industrial Machinery
FunctionVibration Isolation / Shock Absorption / Load Support
Warranty12 Months
Replacement Part Numbers
  • FESTO EB-325-215
  • CONTITECH FD330-22
  • FIRESTONE W01-358-7180
  • FIRESTONE 22
  • GOODYEAR 2B12-425
  • GOODYEAR 2B12-311
  • TRIANGLE 6316/4363
  • AIRKRAFT 115061/3B-356
  • Vibracoustic: VSP2B22R7180
  • EI Ride: 8030190
  • Leland: Sc2075
  • Navistar: 1685179C1
  • Hendrickson: 1VA1816
  • Ridewell: 1003587180C
  • SAF Holland: 57007180
  • Watson&Chalinl: AS01541G/01881F
  • Peerlee: 0550 00001

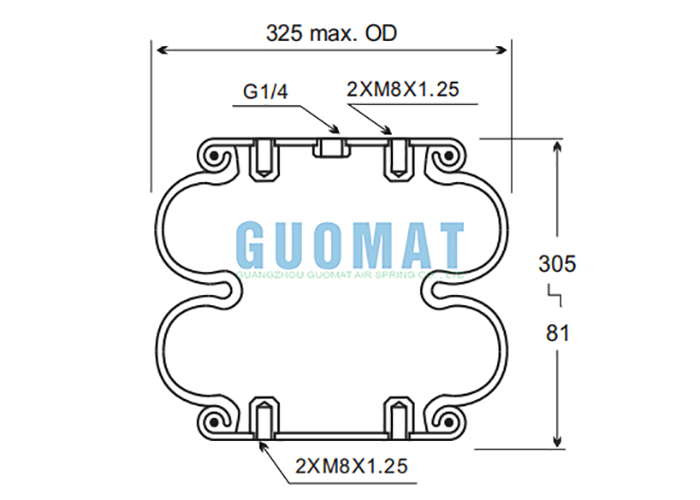

Technical Data
Center distance157.5cm
Maximum outer diameter325mm
Cover plate diameter228mm
Threaded holeM8
Air holeG1/4
Center distance between threaded hole and air vent73mm
Maximum height305mm
Minimum height75mm
Why Choose GUOMAT 2B633D?
The 2B633D air bellows is designed to provide a practical replacement option for industrial users who need to replace worn or damaged air springs.
Reliable Rubber Construction
The reinforced rubber bellows is designed to withstand repeated compression and expansion during normal operation. The flexible rubber body allows the air spring to absorb vibration and movement while supporting the equipment load.
Vibration Isolation
Air springs can help isolate equipment from unwanted vibration generated during operation. This is particularly useful for tooling equipment and industrial machinery requiring stable movement and reduced mechanical vibration.
Easy Replacement
For applications using FESTO EB-325-215 or Contitech FD330-22 as the reference model, GUOMAT 2B633D provides a convenient replacement option. Please compare dimensions, mounting configuration, working height, and air connection before installation.
Wide Industrial Applications
GUOMAT manufactures air springs for industrial machinery, vehicle suspension, bus suspension, truck cab suspension, and vibration isolation applications. We can also provide customized air spring solutions according to drawings, dimensions, or samples.
