Specifications
Brand Name :
GUOMAT
Model Number :
2B10x2
Certification :
ISO/TS16949:2009
Place of Origin :
Guangdong,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, ,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Steel cover plate , rubber bellows
GUOMAT NO. :
2B10x2
Bellows NO . :
Springride DF 10" x 2 /10x2
Norgen :
M/31102 (10x2)
Plate Dia. :
210 mm
Pressure Ability :
0.2-0.8 MPa
Air inlet :
G1/2
Description

DUNLOP SP 1538 Industrial Air Spring W01-R58-4092 Rubber Bellows 10 X 2

OEM Cross reference:

GUOMAT:2B10x2
CONTITECH FD 210-22 1/2 M10
DUNLOP FR SP 1538 (10x2)
NORGREN M/31102 (10x2)
WEFORMA WBZ-G 450
GRANNING 15807
SAMRO H 250-0021

Double capsule air spring 2B270- 225 D185

Can replace the following air bags (bladder cylinder, gas spring)

ContiTech : FD 210- -22 1/2 M10

ContiTech : FD 210- -22 DS G1 / 2

ContiTech : FD 210--22 DS G1 / 2 M10

ContiTech : FD 210-22 DS G1 / 2 CR

ContiTech : FD 210- -22 DS CR G1 / 2

ContiTech : FD 210--22 DS / FD210-22DS / FD21022DS

ContiTech leather bags: FD 210--22 / FD210--22 / FD21022

Firestone: W01-R58- -4058 / W01 R58 4058 / W01R584058

Firestone style: 10 ”x2 / 10” x2 / 10x2

Goodyear: 2B10- -2350 / 2B10 2350 / 2B102350

Goodyear sac number: 578-92-3-2350 / 578 92 3 2350/5789232350

Springride: 2B10-2350 / 2B10 2350 / 2B102350

Springride bladder number: 578-92-3-2350 / 578 92 3 2350/5789232350

Dunlop France: SP1538

Dunlop UK (Pneuride): PNP 30545 01 12 / PNP305450112

Norgren: M / 31102 / M 31102 / M31102

Nominal diameter (inch) x number of turns: 10 "x2 / 10" x2 / 10x2.

WEFORMA: WBZ-G 450 / WBZ-G450 / WBZG450

Altay: 140586

Altai Co. No .: A2 250 / K01 / A2250 / K01 / A2250K01

Pared (new): 2B10-2350 / 2B10 2350 / 2B102350

Pared new skin bag number: 578-92-3-2350/578 92 3 2350/5789232350

Gu'an Zhen (gas spring): YS- -252- -2V / YS 252 2V / YS2522V

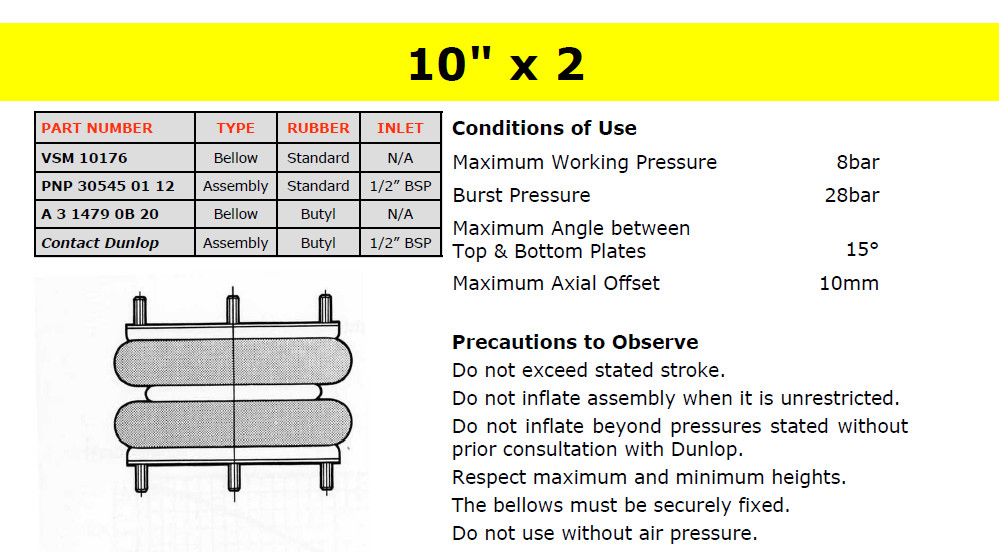

Specifications and Detail Technical Parameters:Style10" x2

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4pcs X M10

Distance between two bolts:181mm

Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10

Distance between two bolts:181mm

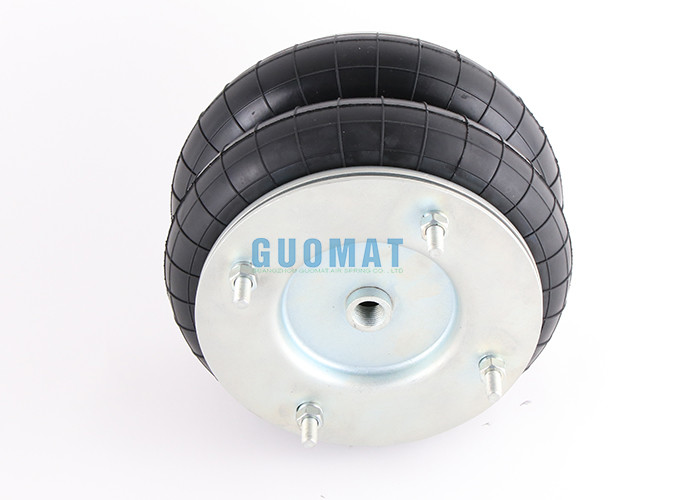

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2

❸ Cover Plate

Top Cover Plate Diameter (Width): 210 mm

Bottom Cover Plate Diameter (Width): 210 mm

Material top and bottom plate:Steel

❹Rubber Bellows

Stroke of Rubber Bellows:70mm-240m

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop


Rubber material Standard up to 70°C natural rubber

DUNLOP SP 1538 Industrial Air Spring W01-R58-4092 Rubber Bellows 10 X 2

DUNLOP SP 1538 Industrial Air Spring W01-R58-4092 Rubber Bellows 10 X 2DUNLOP SP 1538 Industrial Air Spring W01-R58-4092 Rubber Bellows 10 X 2DUNLOP SP 1538 Industrial Air Spring W01-R58-4092 Rubber Bellows 10 X 2

Other kinds of model air bellows:

W01-R58-4081 (2 3/4" x3)
W01-R58-4051 Dunlop Style 4,5 " x 2
W01-R58-4052 - (6" x1 steel)
Firestone W01-R58-4057 - (10 x1 steel)
Firestone W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)
Firestone W01-R58-4090 - 8"x2 Butyl
Firestone W01-R58-4055 - 8x2 Steel
Firestone W01-R58-4060 (12 x1 steel)

Firestone W01-R58-4077 (12 x1 Herclor )
Firestone W01-R58-4056 -8"x3 Steel
Firestone W01-R58-4062 (12 x3 Steel)
Firestone W01-R58-4065 (14 1/2 x3 Steel)
Firestone W01-R58-4098 (14 1/2 x1 Herclor)
Firestone W01-R58-4097 (14" 1/2 x2 Herclor)
Firestone W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)
Firestone W01-R58-4078 - (6 x1 Alu )
Firestone W01-R58-4070 - (6 x 2 Alu )
Firestone W01-R58-4053 - (6 x 2 Steel )
Firestone W01-R58-4059 - (10" x3 steel)
Firestone W01-R58-4054 - 8x1 Steel
Firestone W01-R58-4028 - 8"x1 Epichlorhydrin
Spar Part Bellow 8"x2 W01-R58-4045
Firestone W01-R58-4064 -14" 1/2 x2
Firestone W01-R58-4063 -14 1/2 x1
Bellow only 8" x 1 -- W01-R58-4085
Firestone W01-R58-4048
W01-R58-4080 - 2 3/4" x 2
Firestone W01-R58-4060- 12" x2 steel
Firestone W01-R58-4070 - (6 x 2 V2a )
Firestone W01-R58-4051E 4,5 x 2 Stainless Steel
Firestone W01-R58-4050
W01-R58-4080 - 2 3/4" x 1

Other models of ZF air springs:

Air Spring NO. Load Design H. Min. H. Safe Elongation Full Stroke
350110ZF-2 65 130 65
250110ZF-2 65 130 65
500110ZF-2 11400 50 80 130 50
280110ZF-2 3009 65 60 125 65
200110ZF-2 1270 65 60 125 65
160110ZF-2 676 65 60 125 65
140110ZF-2 450 65 60 125 65
164152MF-3 80 180
110085MF-3 60 110 50
580180ZF-3 100 220 120
420210ZF-3 100 255
350170ZF-3 90 215 125
250170ZF-3 90 210 120
620210ZF-3 17430 120 120 240 120
530180ZF-3 12869 115 100 215 115
400180ZF-3 6901 115 100 215 115
280170ZF-3 2971 130 90 210 130
200170ZF-3 1221 130 80 210 130
110070ZF-3 453 41 50 91 41
140214MF-4 100 255
620285ZF-4 16972 185 145 330 185
420245ZF-4 4384 170 150 320 170
