Specifications
Item Name :
Industrial Air Spring
Material :
Rubber Bellow and Aluminum Cover
Warranty :
1 Year Warranty
MOQ :
10 Pieces
Spring Type :
Air Filled
Firestone :
W01-358-7400/22
Goodyear :
2B12-309/316
Scania :
670199
Brand Name :
GUOMAT
Model Number :
2B7400
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$59.9-69.9/pc
Payment Terms :
T/T, , L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Description

High Quality FD330-22 313 Contitech Bellow Type Air Spring Double Convoluted Air Help Bag

Product Description

Cross References
Firestone W01-358-7400/22 Contitech FD 330-22 313
Goodyear 2B12-309 Goodyear 2B12-316
Goodyear 578923309 Triangle 6316
Triangle 4313

Original Parts

Fab Tek

04-0080

Freightliner

16-10769-000

GMC

693230

Granning

2726

Hendrickson

S1013

Neway

90557016

R&S Truck & Body

1027519

Watson&Chalin

AS0003

Ridewell

1003587400C

Dayton

3547400

VOL-VO

3130488

Scania

670199

Cross references are not a guarantee that a part will fit a specific application. Please check all available information before relying on a cross reference to make a purchase.

What is an Air Spring?
An air spring is a carefully designed flexible part of rubber and cord that contains a volume of compressed air. The air spring itself does not provide force and support load, it is completed by the compressed air column. The air spring is also equipped with a metal end seal plate, and the standard double wire mesh layer is composed of four layers.

Every standard air spring consists of 4 layers.

•The inner layer which actually contains the air.

•The first layer of fabric reinforced rubber applied

at a specific angle.

•The second layer of fabric reinforced rubber which

is laid to a specific angle to the first layer.

•The cover to protect the bias fabric plies.

Continental Contitech FD 330-22 313 Air Spring Technical Data

Nut/Blind Nut

Top Cover Plate Screw (Nut) Tooth

2X3/8-16UNC

Screw and Air Inlet Distance of Top Cover Plate

73mm

Screw Center Distance of Bottom Cover Plate

157mm

Bottom Cover Plate Screw (Nut) Tooth

2X3/8-16UNC

Screw Center Distance of Bottom Cover Plate

157mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet

1/4NPTF

Cover Plate

Top Cover Plate Diameter

231mm

Bottom Cover Plate Diameter

231mm

Rubber Bellow

Rubber Bellows MAX Diameter

325mm

The Working Stroke

MAX 305mm to MIN 104 mm

Maximum Height

305mm

Minimum Height

104mm

Compression Height

201mm

The Drawing Picture of Firestone Air Bellows

FD330-22 313 Contitech Bellow Type Industrial Air Spring Double Convoluted Air Help Bag

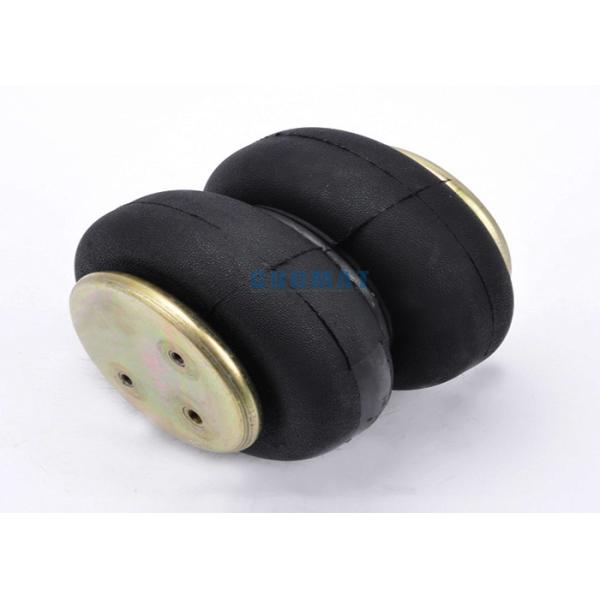

The Real Pictures of Goodyear Industrial Air Suspension Bags

FD330-22 313 Contitech Bellow Type Industrial Air Spring Double Convoluted Air Help Bag
