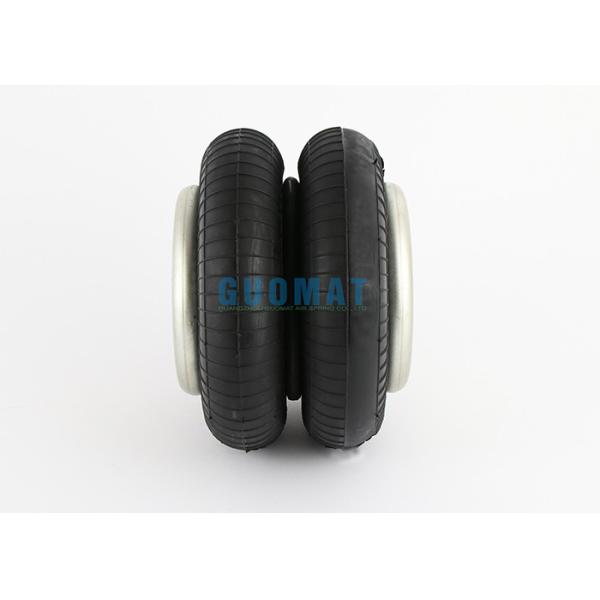

FD120-17 CI Contitech Industrial Air Spring With G1/4 Gas Hole Airkraft 2B-181 Rubber Bellow
FD120-17 CI Contitech Industrial Air Spring With G1/4 Gas Hole Airkraft 2B-181 Rubber Bellow
FD120-17 CI Contitech Industrial Air Spring With G1/4 Gas Hole Airkraft 2B-181 Rubber Bellow
FD120-17 CI Contitech Industrial Air Spring With G1/4 Gas Hole Airkraft 2B-181 Rubber Bellow
FD120-17 CI Contitech Industrial Air Spring With G1/4 Gas Hole Airkraft 2B-181 Rubber Bellow
FD120-17 CI Contitech Industrial Air Spring With G1/4 Gas Hole Airkraft 2B-181 Rubber Bellow
FD120-17 CI Contitech Industrial Air Spring With G1/4 Gas Hole Airkraft 2B-181 Rubber Bellow
FD120-17 CI Contitech Industrial Air Spring With G1/4 Gas Hole Airkraft 2B-181 Rubber Bellow
Specifications
Brand Name :
GUOMAT
Model Number :
2B12017
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$59.9-69.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Material :
Rubber+Metal
Warranty :
12 Months
Spring Type :
Double Convoluted Type
Air Inlet :
G1/4
Contitech :
FD120-17
Airkraft :
113053
Firestone :
W01-M58-6353
Use Range :
Truck Part,Industrial Machine
Description

FD120-17 CI Contitech Industrial Rubber Bellow Air Spring With G1/4 Gas Hole Airkraft 2B-181

Product Description

MANUFACTURER

PART NUMBER
Firestone
W01-M58-6353
Firestone
 W01M586353
Firestone
 W01 M58 6353
Firestone
 WO1M586353
Firestone
 WO1 M58 6353
Firestone
 WO1-M58-6353
Contitech
 FD120-17
Contitech
 FD 120-17
Contitech
 FD12017
Contitech
 FD 120 17
Airkraft
 113054
Airkraft
 2B-181

GUOMAT NO.2B12017 Technical Data

►Cover Plate​

Top Cover Plate Diameter:135mm

Bottom Cover Plate Diameter:135mm

►Air Inlet/Gas Hole/Air Fitting

Air Inlet:G1/4

Air Inlet:G3/4

Air Inlet:G3/8

Air Inlet:RC3/8

►Nut/Blind Nut

Top Cover Plate Screw (Nut) Tooth:2XM8X1.25

Screw Center Distance of Top Cover Plate:70mm
Bottom Cover Plate Screw (Nut) Tooth:2XM8X1.25
Screw Center Distance of Bottom Cover Plate:70mm
►Rubber Bellow
Rubber Bellow MAX Diameter:215mm
Natural Height:167mm
The Working Stroke:MAX 230mm to MIN 75mm
Maximum Height:230mm
Minimum Height:75mm
Compression Height:155mm

Vibration Isolation Applications - Dynamic Eigenvalues

-------Design Height H :190mm , Min 175mm
Pressure P ［bar］ 3 4 5 6 7 8 Volume V ［I］
Load ［KN］ 3.8 5.2 6.5 8.0 9.3 10.6

3.2
Stiffness ［N/cm］ 600 830 1060 1290 1520 1750
Natural Frequency ［Hz］ 2.1 2.0 2.0 2.0 2.0 2.0

Pneumatic Applications - Static Eigenvalues

-------Load ［KN］
Pressure P［bar］ 3 4 5 6 7 8 Volume V ［I］
Height H ［mm］ 200 3.4 4.8 5.9 7.3 8.5 9.7 3.4
180 4.2 5.7 7.1 8.6 10.1 11.5 3.1
160 4.9 6.5 8.1 9.9 11.5 13.1 2.8
140 5.5 7.2 9.1 11.0 12.7 14.5 2.4
120 6.0 7.9 9.9 12.0 14.0 15.8 2.1
122 6.4 8.5 10.7 12.9 15.1 17.0 1.6
80 6.8 9.1 11.3 13.7 16.0 17.9 1.2

Air Spring

The air spring consists of a flexible elastomer rubber body with nylon fabric reinforcement, and a rust-proof plate with air intake and mounting blind nuts. Rubber bellows can be used as vibration isolators, and air springs can absorb up to 99% of harmful vibrations, avoiding further damage to machines and metal structures. At the same time, they reduce noise levels.

Contact Us
We deal auto parts air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Please kindly contact me if you have any question about automotive parts.
We will be your best choice, and we will provide you professional service.

Real Picture Details

FD120-17 CI Contitech Industrial Air Spring With G1/4 Gas Hole Airkraft 2B-181 Rubber BellowFD120-17 CI Contitech Industrial Air Spring With G1/4 Gas Hole Airkraft 2B-181 Rubber Bellow
