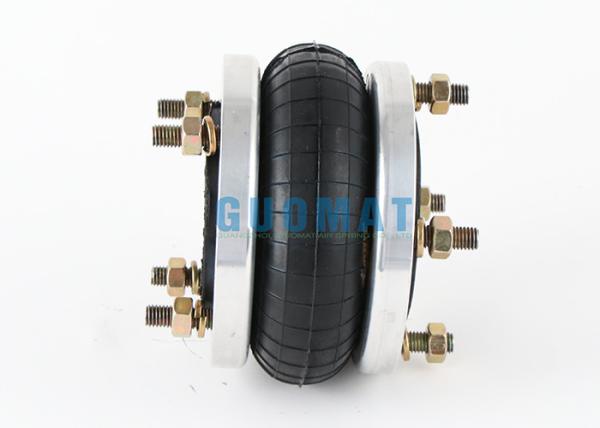

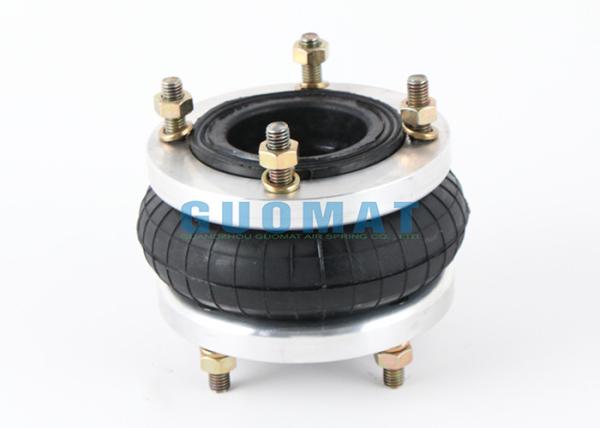

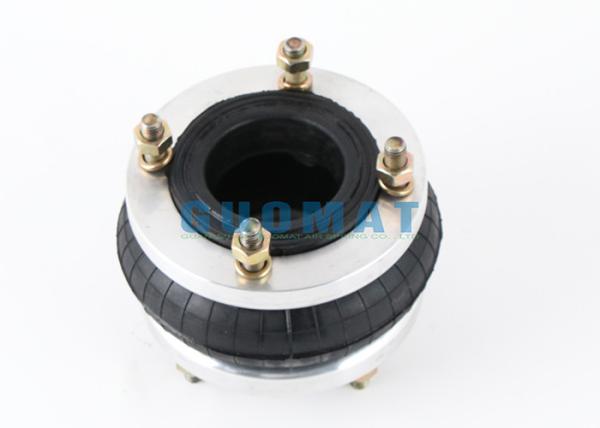

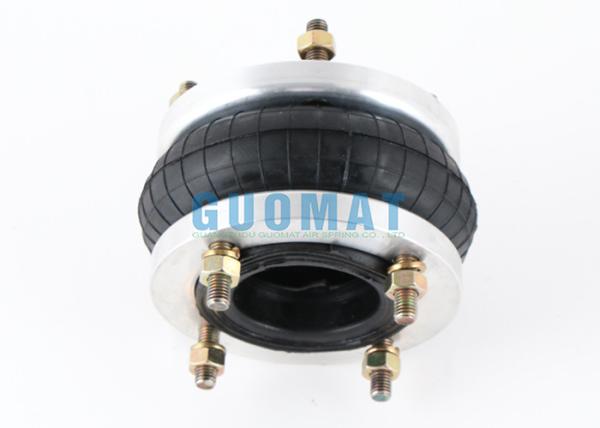

150076H-1 Single Convoluted Air Bag M10 Packaging Machinery Suspension Air Spring
150076H-1 Single Convoluted Air Bag M10 Packaging Machinery Suspension Air Spring
150076H-1 Single Convoluted Air Bag M10 Packaging Machinery Suspension Air Spring
150076H-1 Single Convoluted Air Bag M10 Packaging Machinery Suspension Air Spring
150076H-1 Single Convoluted Air Bag M10 Packaging Machinery Suspension Air Spring
150076H-1 Single Convoluted Air Bag M10 Packaging Machinery Suspension Air Spring
150076H-1 Single Convoluted Air Bag M10 Packaging Machinery Suspension Air Spring
150076H-1 Single Convoluted Air Bag M10 Packaging Machinery Suspension Air Spring
Specifications
Brand Name :
GUOMAT
Model Number :
150076H-1
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$59.9-69.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Type :
With Flange Ring
Warranty :
1 Year
Rubber Material :
Natural Rubber
Pressure Ability :
0.2-0.8 Mpa
The Screw :
4 x M10
Rubber Bellow Diameter :
160mm
Package :
Carton/Cartons
Quality :
100% Tested
Description

150076H-1 Single Convoluted Air Bag M10 Packaging Machinery Suspension Air Spring

Product Description

Type One Single Ruuber Bellow Air Spring Part No. 150076H-1
Warranty 12 Months Other No. 1H150076
Rubber Type Natural Rubber Plate Dia 133mm


150076H-1 Technical Data Parameter Details

Pass Through

Minimal Compression

Elongation

The Working Stroke

Ф104mm

46mm

85mm

39mm

Customers need to bring their own sealing cover
Rubber Bellow Diameter : Ф160mm(0.7 Mpa)
Top Cover Plate Diameter : Ф133mm
Bottom Cover Plate Diameter : Ф133mm
Top Cover Plate Screw (Nut) Tooth : 4×M10
Top Cover Distance Plate Screw(Nut) : 109mm
Bottom Cover Plate Screw (Nut) Tooth : 4XM10
Screw Center Distance of Bottom Cover Plate : 109mm

Loading Capacity

(kg)

Inflatable Pressure

Installation Height

 0.2Mpa 0.3Mpa 0.4Mpa 0.5Mpa 0.6Mpa 0.7Mpa 0.8Mpa

0.7MPa

Volume (dm3)
45(mm) 436 579 718 860 1008 1155 1301 0.37
55(mm) 299 428 570 700 830 963 1088 0.46
65(mm) 226 335 451 565 570 782 906 0.57
75(mm) 164 258 344 435 526 621 720 0.67
85(mm) 122 190 254 330 399 475 544 0.75
95(mm) 58 94 133 174 220 263 308 0.87
Stiffness and Frequency at Design Height

Vertical stiffness

(kg/cm)

 107 150 187 231 265 303 319

Natural (Hz)

Frequency(cpm)

 4.05 3.82 3.69 3.65 3.5 3.50 3033
243 229 221 219 213 210 199

Convoluted Air Bellow Spring

086060H-1 ; 120060H-1 ; 188102-AH-1

215120H-1 ；235118H-1 ；235150H-1

260135H-1 ；280126H-1 ；320124H-1

The History of Air Spring

Air springs were born in the mid-19th century and were early used to dampen vibrations in mechanical equipment. Due to its many advantages, air springs are increasingly widely used in trains, automobiles, paper machines, lifting platforms, presses, vibrating conveyors, vibrating screens, air hammers, vibration testing machines, casting machinery, etc. On shock-absorbing, vibration-isolating equipment or instruments. At this stage, air springs are also used on high-speed trains in my country (such as Harmony trains, Beijing-Shanghai high-speed railways, etc.) for shock absorption and shock absorption. The application of washing equipment in developed countries such as Europe and the United States is also a matter of recent years. Continental Air Springs, Firestone Air Springs, High Matt Air Springs, Goodyear Air Springs.
