LHF300/218-2 Rubber Air Spring Double Convoluted Air Suspension Bag For Washing Machine
LHF300/218-2 Rubber Air Spring Double Convoluted Air Suspension Bag For Washing Machine
LHF300/218-2 Rubber Air Spring Double Convoluted Air Suspension Bag For Washing Machine
LHF300/218-2 Rubber Air Spring Double Convoluted Air Suspension Bag For Washing Machine
LHF300/218-2 Rubber Air Spring Double Convoluted Air Suspension Bag For Washing Machine
LHF300/218-2 Rubber Air Spring Double Convoluted Air Suspension Bag For Washing Machine
LHF300/218-2 Rubber Air Spring Double Convoluted Air Suspension Bag For Washing Machine
LHF300/218-2 Rubber Air Spring Double Convoluted Air Suspension Bag For Washing Machine
Specifications
Brand Name :
GUOMAT
Model Number :
LHF300/218-2
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$59.9-69.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Spring Material :
Rubber + Steel
Warranty Period :
1 Year
Package :
Carton/Cartons
Rubber Type :
High-Quality
Application :
For Industrial
Position :
Front or Rear
Pressure :
0.2-0.8 M PA
Sample :
Available
Description

LHF300/218-2 Rubber Air Spring Double Convoluted Air Suspension Bag For Washing Machine

Product Description

Model Number: LHF300/218-2

Flange: JBF

Number of Convolution: 2

Nominal Diameter: Ø300mm

Outer Diameter: Ø380mm

End Outer Diameter: Ø308mm

Height: Ø226mm

Product Performance

Applicable Medium

Air

Water

Work Pressure

Mpa

≤0.7

Burst Pressure

Mpa

≥2.0

Fatigue Test

Times

≥1 Million Times

Minimum Compression Height

mm

90

Safe Extension Height

mm

270

The air spring can be used on the vibration platform, which can effectively reduce the vibration damage caused by external factors and the internal structure of the machine, thereby prolonging the service life of the machine and increasing the utilization rate of various products. So air springs can protect mechanical equipment by reducing vibration. Air springs can be used in air conditioners, centrifugal fans, small chillers, water pumps, etc.; rubber shock absorbers are widely used in instruments, equipment cabinets, etc.

LHF Type Air Spring

LHF100/166-2

LHF100/238-3

LHF150/212-2

LHF150/304-3

LHF200/212-2

LHF200/304-3

LHF230/120-1

LHF230/218-2

LHF230/316-3

LHF250/255-2

LHF250/218-2

LHF250/316-3

LHF256/92-1

LHF256/166-2

LHF280/218-2

LHF280/316-3

LHF300/218-2

LHF300/316-3

LHF320/186-2

LHF320/240-2

LHF320/350-3

LHF340/226-2

LHF400/218-2

LHF400/316-3

LHF440/218-2

LHF440/316-3

LHF500/220-2

LHF500/320-3

LHF580/262-2

LHF580/384-3

HF Type Air Spring

HF80/90-1

HF80/142-2

HF95/70-1

HF100/166-2

HF100/238-3

HF104/66-1

HF115/77-1

HF120/132-2

HF125/112-1

HF150/140-2

HF170/120-1

HF174/126-1

HF180/156-1

HF180/152-2

HF190/170-2

HF190/248-3

HF192/140-2

HF208/90-1

HF230/116-1

HF230/120-1

HF230/140-2

HF240/100-1

HF240/165-2

HF250/255-2

HF264/90-1

HF290/105-1

HF300/255-2

HF310/160-1

HF320/203-2

GF Type Air Spring

GF40/60-1

GF100/140-2

GF100/166-2

GF100/238-3

GF120/102-1

GF150/206-2

GF150/298-3

GF200/206-2

GF200/298-3

GF230/206-2

GF230/298-3

GF250/206-2

GF250/298-3

GF280/206-2

GF280/298-3

GF300/218-2

GF300/316-3

GF320/120-1

GF320/215-2

GF320/310-3

GF400/215-2

GF400/310-3

GF400/215-2

GF440/310-3

GF500/220-2

GF500/320-3

GF500/420-4

GF580/262-2

GF580/384-3

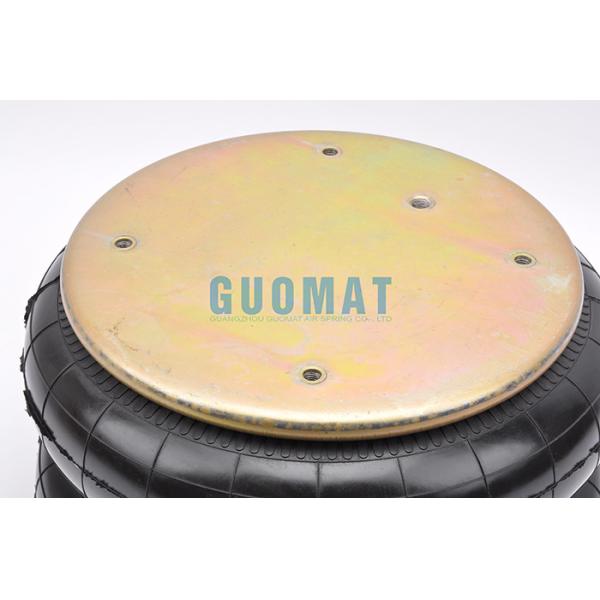

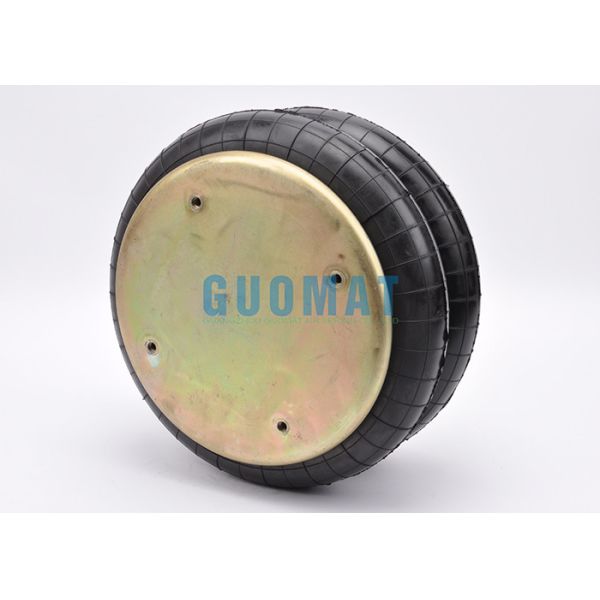

The Real Pictures

LHF300/218-2 Rubber Air Spring Double Convoluted Air Suspension Bag For Washing MachineLHF300/218-2 Rubber Air Spring Double Convoluted Air Suspension Bag For Washing Machine
