Specifications
Brand Name :
GUOMAT
Model Number :
2B2600
Certification :
ISO/TS16949:2009
Place of Origin :
Guangdong,China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Steel cover plate , rubber bellows
Gas Hole :
1/2 NPTF
Screw Tooth :
3/8-16UNC
Screw Center Distance :
70 mm
Cover Plate Diameter :
140 mm
Pressure Ability :
0.2-0.8 M Pa
stroke :
120~255 mm
Net Weight :
2.6 kg
Package Size :
24*24*24 CM
Description

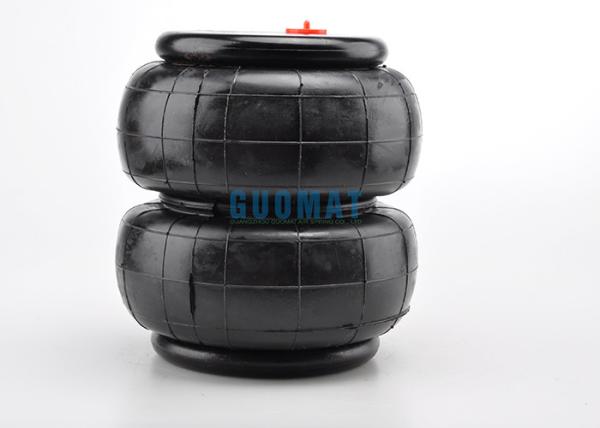

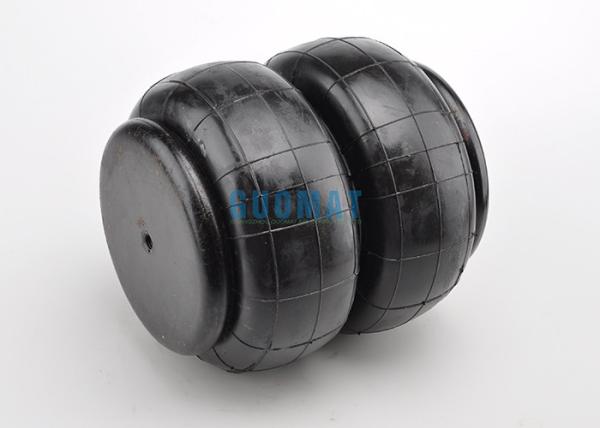

2B2600 Truck Air Bag Suspension For Pickup Truck Modification Replace Spring​

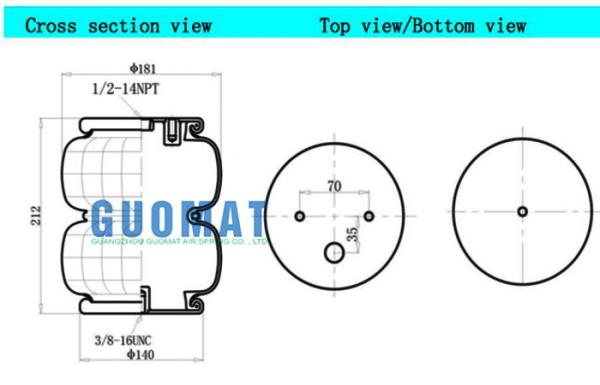

GUOMAT 2B2600 Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 70 mm

Bottom Cover Plate Screw (Nut) Tooth : 1 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : in the center

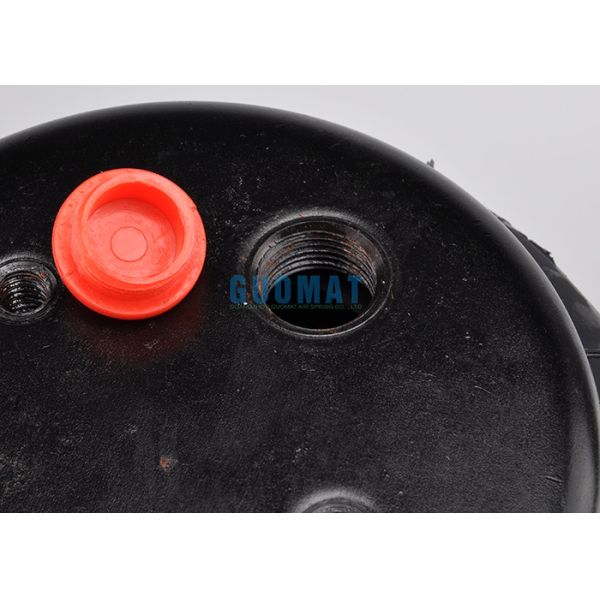

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/2-14NPTF

Screw Center Distance Between Gas Hole and Nut : 35 mm

❸ Cover Plate

Top Cover Plate Diameter: 140 mm

Bottom Cover Plate Diameter: 140 mm

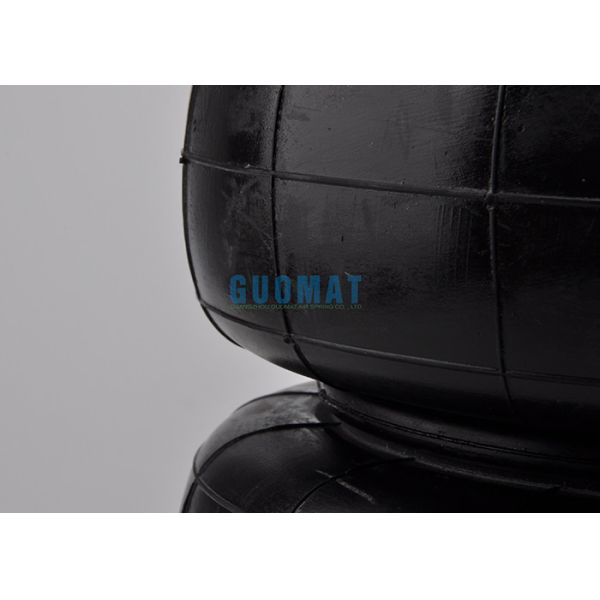

❹Rubber Bellows

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter : 224 mm

The Working Stroke : 135 mm

Maximum Height : 255mm

Minimum Height :120mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Weight:2.54 kg

Loading cap. at 3.0bar :3.85kN

Loading cap. At 7.0bar:9.52kN

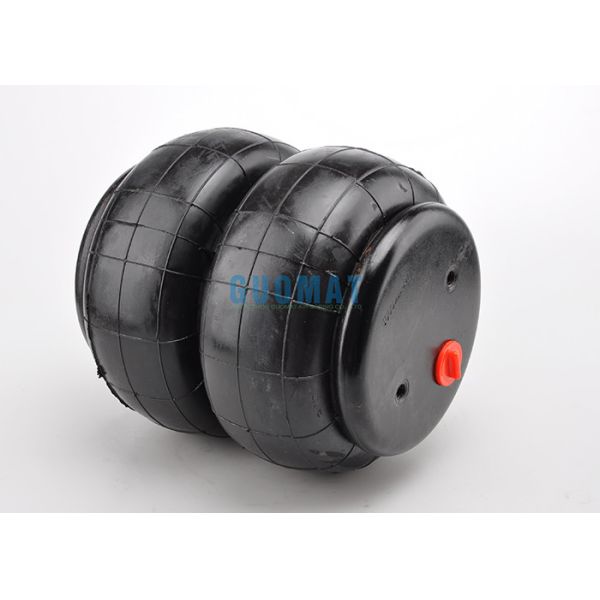

2B2600 Air Bag Suspension For Pickup Truck Modification Replace Spring

2B2600 Air Bag Suspension For Pickup Truck Modification Replace Spring2B2600 Air Bag Suspension For Pickup Truck Modification Replace Spring
