Confined Type Rubber Air Spring 120-2 For Industrial Shaker / Air Ride Suspension Parts
Confined Type Rubber Air Spring 120-2 For Industrial Shaker / Air Ride Suspension Parts
Confined Type Rubber Air Spring 120-2 For Industrial Shaker / Air Ride Suspension Parts
Confined Type Rubber Air Spring 120-2 For Industrial Shaker / Air Ride Suspension Parts
Specifications
Brand Name :
GUOMAT
Model Number :
MB-120-2R
Certification :
ISO/TS16949:2009
Place of Origin :
Guangdong,China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T, Western Union,paypal or others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Rubber and Stainless Steel
Yokohama :
M-120-2R
GUOMAT :
MB-120-2R
Layer Number :
2 Convolution
Using Maximum Internal Pressure :
0.88 Mpa
Vibration Frequency :
2.7 Hz
Air inlet :
M10
Description

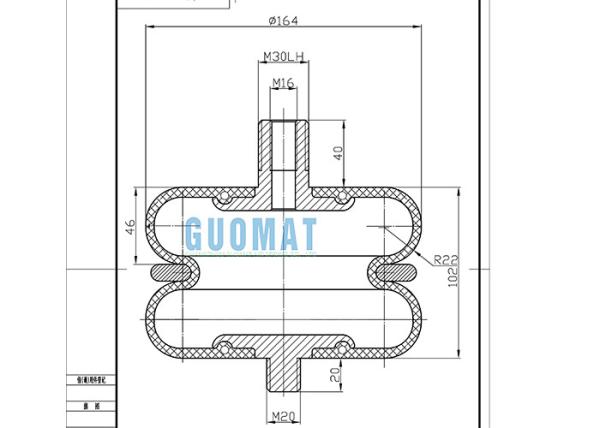

M-120-2R Yokohama Confined Type Rubber Air Spring 120-2 For Industrial Shaker

M-120 items Detailed Parameter Table:

GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
MB-120-4 M-120-4 206 306 111 ±70 180
MB-120-3 M-120-3 152 227 82 ±53 180
MB-120-2 M-120-2 98 148 53 ±35 180

GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
MB-120-4 M-120-4 113 3.4 5.2 69 1.8 0.88 2.9-3.9
MB-120-3 M-120-3 113 2.1 5.2 98 2.2 0.88 2.9-3.9
MB-120-2 M-120-2 113 1.25 5.2 157 2.7 0.88 2.9-3.9
MB-100-4 M-100-4 79 1.95 3.9 59 1.9 0.88 2.9-3.9
MB-90-3 M-90-3 79 1.4 3.9 78 2.2 0.88 2.9-3.9
MB-90-2 M-90-2 79 0.85 3.9 118 2.7 0.88 2.9-3.9
MB-90-1 M-90-1 63.5 0.5 3.1 103 2.9 0.88 3.9-4.9

M-120-2R air spring fits below items

Papermaking equipment

Scissor lift

Mechanical Hopper vibration and damping handling stop

Direct force

Platform lift

Short stroke mechanical linkage

Hot foil stamping press

Impact absorbtion

Roller tensioning

Quick lock device

Reel tensioning

Machine isolation

GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below:

GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No. GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No.
MB-600-1 MB-600-R1 600-1r MB-240-4 MB-240-R4 240-4r
MB-600-2 MB-600-R2 600-2r MB-240-3 MB-240-R3 240-3r
MB-600-3 MB-600-R3 600-3r MB-240-2 MB-240-R2 240-2r
MB-600-4 MB-600-R4 600-4r MB-240-1 MB-240-R1 240-1r
MB-600-5 MB-600-R5 600-5r MB-220-4 MB-220-R4 220-4r
MB-550-2 MB-550-R2 550-2r MB-220-3 MB-220-R3 220-3r
MB-550-3 MB-550-R3 550-3r MB-220-2 MB-220-R2 220-2r
MB-500-2 MB-500-R2 500-2r MB-200-2 MB-200-R2 200-2r
MB-500-3 MB-500-R3 500-3r MB-200-3 MB-200-R3 200-3r
MB-500-4 MB-500-R4 500-4r MB-200-4 MB-200-R4 200-4r
MB-500-5 MB-500-R5 500-5r MB-160-1 MB-160-R1 160-1r
MB-450-1 MB-450-R1 450-1r MB-160-2 MB-160-R2 160-2r
MB-450-2 MB-450-R2 450-2r MB-160-3 MB-160-R3 160-3r
MB-450-3 MB-450-R3 450-3r MB-160-4 MB-160-R4 160-4r
MB-450-4 MB-450-R4 450-4r MB-120-4 MB-120-R4 120-4r
MB-450-5 MB-450-R5 450-5r MB-120-3 MB-120-R3 120-3r
MB-400-2 MB-400-R2 400-2r MB-120-2 MB-120-R2 120-2r
MB-400-3 MB-400-R3 400-3r MB-100-4 MB-100-R4 100-4r
MB-400-4 MB-400-R4 400-4r MB-90-3 MB-90-R3 90-3r
MB-400-5 MB-400-R5 400-5r MB-90-2 MB-90-R2 90-2r
MB-350-1 MB-350-R1 350-1r MB-90-1 MB-90-R1 90-1r
MB-350-2 MB-350-R2 350-2r MB-300-1 MB-300-R1 300-1r
MB-350-3 MB-350-R3 350-3r MB-300-2 MB-300-R2 300-2r
MB-350-4 MB-350-R4 350-4r MB-300-3 MB-300-R3 300-3r
MB-300-4 MB-300-R4 300-4r
