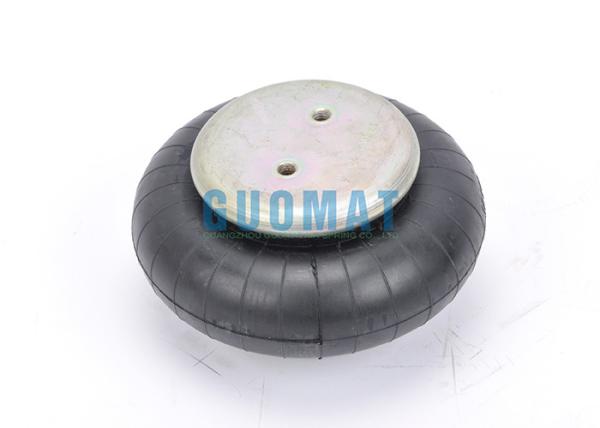

DIA. Max. 205 Air Suspension Bellows 1B7-540 Goodyear Cross Reference Firestone W013587451
DIA. Max. 205 Air Suspension Bellows 1B7-540 Goodyear Cross Reference Firestone W013587451
DIA. Max. 205 Air Suspension Bellows 1B7-540 Goodyear Cross Reference Firestone W013587451
DIA. Max. 205 Air Suspension Bellows 1B7-540 Goodyear Cross Reference Firestone W013587451
DIA. Max. 205 Air Suspension Bellows 1B7-540 Goodyear Cross Reference Firestone W013587451
DIA. Max. 205 Air Suspension Bellows 1B7-540 Goodyear Cross Reference Firestone W013587451
DIA. Max. 205 Air Suspension Bellows 1B7-540 Goodyear Cross Reference Firestone W013587451
DIA. Max. 205 Air Suspension Bellows 1B7-540 Goodyear Cross Reference Firestone W013587451
Specifications
Brand Name :
GUOMAT
Model Number :
1B7451
Certification :
ISO/TS16949:2009
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Rubber Steel
GUOMAT :
1B7451
Warranty :
1 Year
Weight :
1.5.0 kg
Other names :
Air Spring Bags Rubber Cushion
Pressure Ability :
0.2-0.8 M Pa
Bellow No. :
1B 7-540
Air inlet :
1/4NPTF
Description

1B7-540 Goodyear Cross Reference Firestone W013587451 Rubber Bellows DIA. Max. 205​

GUOMAT Part Number:1B7451 Specifications and Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 44.45 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 44.45 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPTF

Screw Center Distance Between Gas Hole and Nut : 22.25 mm

❸ Cover Plate

Top Cover Plate Diameter: 115 mm

Bottom Cover Plate Diameter: 115 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 205 mm

Rubber Bellows Natural Diameter : 180 mm

The Working Stroke : MIN 50 mm to MAX 140 mm

Maximum Height : 140 mm

Minimum Height :50mm

Stroke Height : 90mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :no One Pieces of Girdle Hoop

aximum Diameter @ 100 PSIG (mm) 210.82 Other Cross Reference

W01-358-7451, W013587451, WO1-358-7451, WO13587451

Goodyear Part # 1B7-100 Goodyear-Firestone Cross Reference‚ 1B7-101 Goodyear-Firestone Cross Reference‚ 1B7-102 Goodyear-Firestone Cross Reference‚ 1B7-103 Goodyear-Firestone Cross Reference‚ 1B7-540 Goodyear-Firestone Cross Reference‚ 1B7-541 Goodyear-Firestone Cross Reference‚ 1B7-542 Goodyear-Firestone Cross Reference
Maximum Height (mm) 140 Manufacturer Part Number W013587451
Maximum Stroke (mm) 76.2 Manufacturer Firestone Industrial
Minimum Usable Height (mm) 50 Style Number 110B
1 Inch (pounds) 2090 Style Shape Single Convolution
3 Inch (pounds) 1030 Natural Frequency (@80 psig) (cpm) 162
Bead plate Type 1 400 CPM % 80.2
Blind Nut Centers (mm) 44.45 800 CPM % 95.7
Design Height 4.5 1500 CPM % 98.8
40 psig (pounds) 650 Maximum Stroke (pounds) 940
60 psig (pounds) 1010 Material 2-Ply Standard Cord
80 psig (pounds) 1390

DIA. Max. 205 Air Suspension Bellows 1B7-540 Goodyear Cross Reference Firestone W013587451DIA. Max. 205 Air Suspension Bellows 1B7-540 Goodyear Cross Reference Firestone W013587451DIA. Max. 205 Air Suspension Bellows 1B7-540 Goodyear Cross Reference Firestone W013587451

DIA. Max. 205 Air Suspension Bellows 1B7-540 Goodyear Cross Reference Firestone W013587451
