PM/31042 Industrial Air Spring Bellow Single Acting 4-1/2 80mm G3/8
PM/31042 Industrial Air Spring Bellow Single Acting 4-1/2 80mm G3/8
PM/31042 Industrial Air Spring Bellow Single Acting 4-1/2 80mm G3/8
PM/31042 Industrial Air Spring Bellow Single Acting 4-1/2 80mm G3/8
Specifications
Brand Name :
GUOMAT
Model Number :
PM/31042
Certification :
ISO/TS16949:2009
Place of Origin :
Guangdong,China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Steel cover plate , rubber bellows
GUOMAT NO. :
PM/31042
Bellows NO . :
Springride DF 4-1/2"
Firestone :
4-1/2"
Plate Dia. :
154 mm
Max Dia. :
165mm
Pressure Ability :
0.2-0.8 MPa
Air inlet :
G3/8
Stroke :
80 mm
Description

PM/31042 Industrial Air Spring Air Bellow Single Acting 4-1/2" Diameter 80mm Stroke Port Size G3/8

PM/31042 Specifications and Detail Technical Parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 6pcs X M10

Bottom Cover Plate Screw (Nut) Tooth : 6pcs X M10

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G3/8

❸ Cover Plate

Top Cover Plate Diameter (Width): 154 mm

Bottom Cover Plate Diameter (Width): 154 mm

Material top and bottom plate:steel

❹Rubber Bellows

Diameter max at 7 bar:165MM

Stroke of Rubber Bellows:55 m

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :no Girdle Hoop

ITEM: PM/31042
Frictionless operation
No maintenance or lubrication
Ideal for short stroke, high-force applications
High vibration isolation level
Easy, compact installation
Operation: Single acting
Stroke length: 80 mm
Port size: G3/8
Nominal diameter: 4-1/2"
Number of convolutions: 2


Medium: Air Compressed
Port size: G3/8
Operation: Single acting
Operating pressure: 0 ... 8 bar
Operating temperature: -30 ... 50 °C
Stroke length: 80 mm
Theoretical force: 5750 N
Range: PM/31000

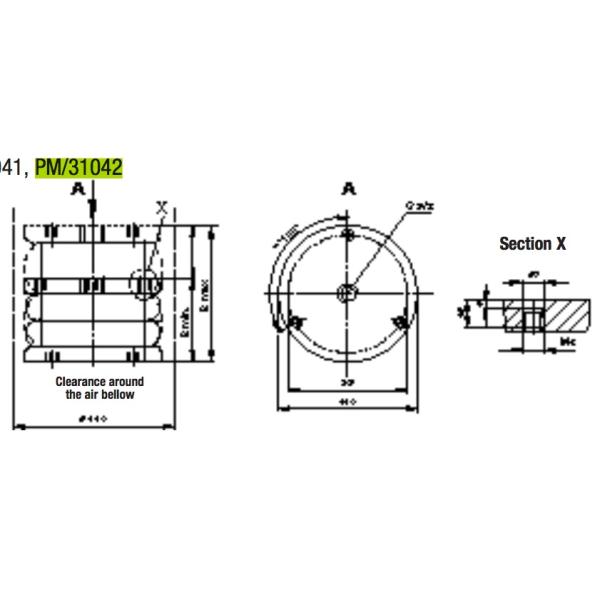

The drawing of PM/31042:

PM/31042 Industrial Air Spring Bellow Single Acting 4-1/2

Details data of PM/31042:

PM/31042 Industrial Air Spring Bellow Single Acting 4-1/2

Other kinds of model air bellows:

Model PM/31021 PM/31022 PM/31023 PM/31041 PM/31042 PM/31043 PM/31061 PM/31062
Cylinder Ø [inch] 2 3/4" 2 3/4" 2 3/4" 4 1/2" 4 1/2" 4 1/2" 6" 6"
Stroke [mm] 20 45 60 40 85 100 55 115
Air Port G 1/4 G 1/4 G 1/4 G 3/8 G 3/8 G 3/8 G1/2 G1/2
Nominal Ø (inch) x convolutions 2 3/4" x 1 2 3/4" x 2 2 3/4" x 3 4 1/2" * 1 4 1/2" * 2 4 1/2" * 3 6" x 1 6" x 2
Installation height min [mm] 50 65 80 50 65 100 55 80
Recomended max working height [mm] 65 105 130 80 135 180 100 170
Installation height max [mm] 70 110 140 90 150 200 110 190
Retracting force to reach min height [N] 200 310 300 200 240 140 200 220
