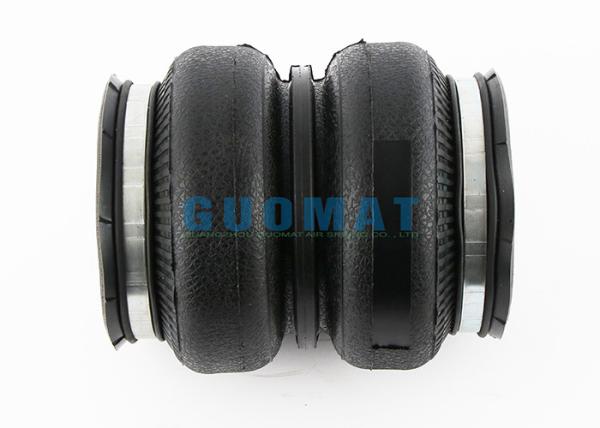

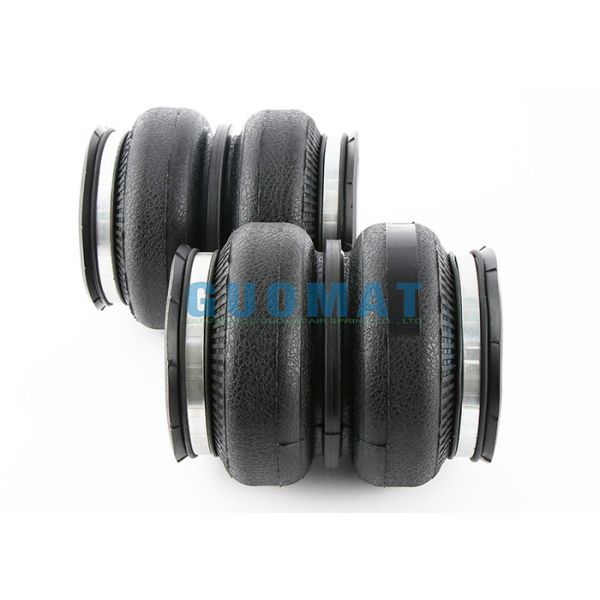

W01-358-5813 Firestone Double Suspension Air Spring 2B5813 Truck Air Shock Absorber
W01-358-5813 Firestone Double Suspension Air Spring 2B5813 Truck Air Shock Absorber
W01-358-5813 Firestone Double Suspension Air Spring 2B5813 Truck Air Shock Absorber
W01-358-5813 Firestone Double Suspension Air Spring 2B5813 Truck Air Shock Absorber
W01-358-5813 Firestone Double Suspension Air Spring 2B5813 Truck Air Shock Absorber
W01-358-5813 Firestone Double Suspension Air Spring 2B5813 Truck Air Shock Absorber
W01-358-5813 Firestone Double Suspension Air Spring 2B5813 Truck Air Shock Absorber
W01-358-5813 Firestone Double Suspension Air Spring 2B5813 Truck Air Shock Absorber
Specifications
Brand Name :
GUOMAT
Model Number :
2B 5813
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$59.9-69.9/pc
Payment Terms :
T/T, , L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Name :
Suspension Air Spring
Material :
Rubber Bellow and Steel
Warranty :
1 Year Warranty
Position :
Front/Rear
Stock :
Yes
Shock Absorber Type :
Gas-Filled
Condition :
Brand New
Package :
Standard Packing Or Customized
Description

W01-358-5813 Firestone Double Suspension Air Spring 2B5813 Truck Air Shock Absorber

Product Description

Item: Air Suspension Spring

Brand: GUOMAT

Model Number: 2B5813

MOQ: 3 Pieces

Warranty: 12 Months

Material: Natural Rubber

Car Model: Modified Cars and Trucks

Operation: Gas-filled

Packing: Strong Carton Box Or As Customers Need

Quality: 100% Tested
OEM: Firestone W01-358-5813
OEM: Firestone W01 358 5813
OEM: Firestone W013585813

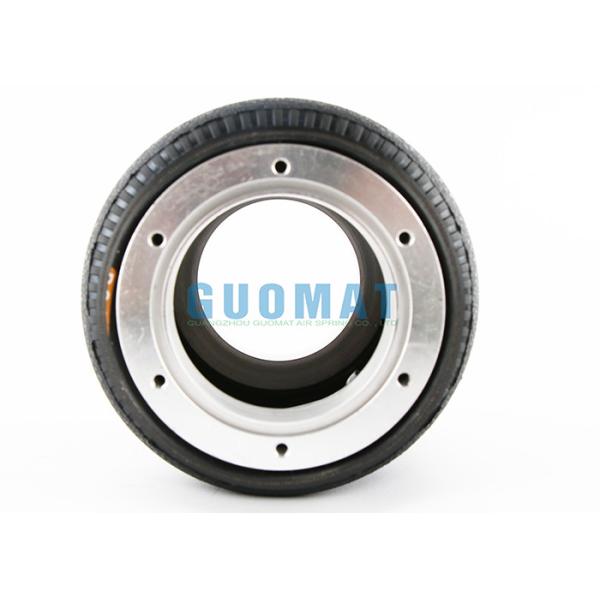

Technical Data : Air Spring With Cover Plate

Top cover diameter

105.5mm

Threaded hole

3/8-16UNC

Air Fitting

PT1/4

Center distance between threaded holes

69.5mm

Distance between threaded hole and air hole

35mm

Bottom cover diameter

105.5mm

Center distance between threaded holes

69.5mm

Natural height

188mm

The rubber bellow natural outer diameter

141mm


Function of Suspension Air Spring

  • Load Support: The primary function of a suspension air spring is to support the weight of the vehicle and its occupants. When the vehicle is loaded, the air spring compresses to maintain the desired ride height and prevent the vehicle from sagging or bottoming out.
  • Shock Absorption: Suspension air springs help absorb shocks and vibrations from the road surface, providing a smoother and more comfortable ride for the occupants. The compressed air inside the spring acts as a cushion, reducing the impact of bumps and uneven surfaces.
  • Adjustable Ride Height: One of the advantages of suspension air springs is their ability to adjust the ride height of the vehicle. By varying the air pressure in the springs, the vehicle's ride height can be increased or decreased, allowing for better ground clearance or improved aerodynamics, depending on the driving conditions.
  • Self-Leveling: Suspension air springs are designed to maintain a level ride height regardless of the load distribution in the vehicle. This self-leveling feature ensures that the vehicle remains stable and balanced, even when carrying uneven loads or towing heavy trailers.
  • Improved Handling: Suspension air springs can enhance the handling characteristics of a vehicle by providing better stability and control. The ability to adjust the ride height and stiffness of the springs allows for fine-tuning of the suspension system to suit different driving conditions and preferences.

Air Lift Single Convoluted Air Spring

Bellows

P/N

Replace

Kit P/N

Max.Ext.

Height

Comp.

Height

Max.

Dia.

Design

Height

Air Fitting

Top Fastener

Bottom Fastener

1B-5

58103

502007

5.8

1.8

6.5

3.5-5.0

1/4''

3/8''-16

/8''-16

1B-6

58407

50352

7.1

1.9

7.0

4.0-6.0

1/8''

3/8''-24

3/8''-24

1B-6**

58736

50284

7.1

2.7

7.0

4.0-6.0

1/8''

3/8''-24

3/8''-24

1B-6 Ultimate

58740

7.0

2.7

7.0

4.0-6.0

1/8''

3/8''-24

3/8''-24

1B-8

58124

50211

7.3

1.8

9.4

4.0-6.5

1/4''

3/8''-16

3/8''-16


W01-358-5813 Firestone Double Suspension Air Spring 2B5813 Truck Air Shock AbsorberW01-358-5813 Firestone Double Suspension Air Spring 2B5813 Truck Air Shock Absorber
