Specifications
Brand Name :
Norgren
Model Number :
M/31082
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5pcs
Price :
USD119.9-199.9/PC
Payment Terms :
L/C, T/T, Western Union Or Others
Supply Ability :
1000PCS/Week
Delivery Time :
3-7 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
N.W. :
3.5 Kg
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Other OEM :
8"X2
Bottom Plate Dia :
184 mm
Air Inlet :
G3/4
Transport Package :
Cartons
Trademark :
Norgren
Material :
Rubber and Aluminum
Usage :
Industrial
Description

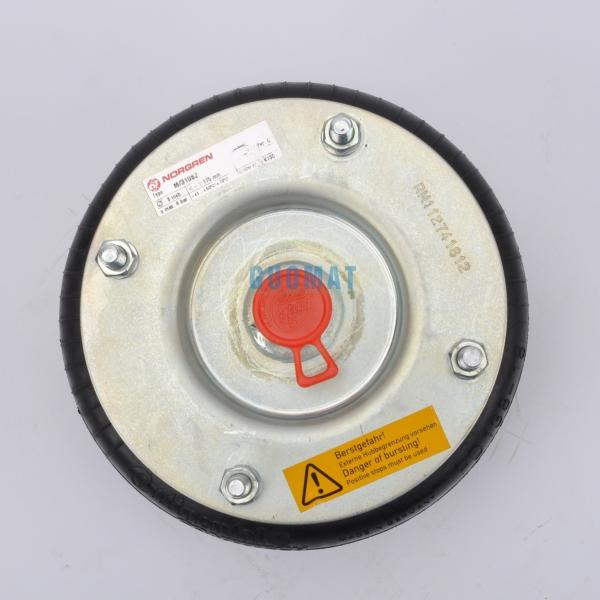

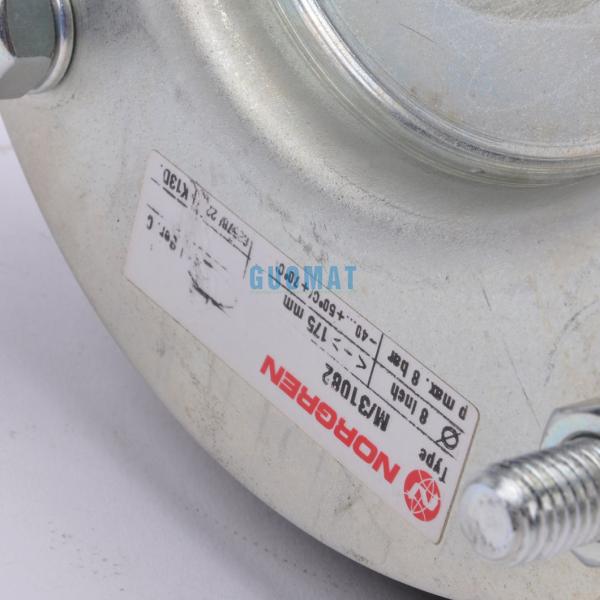

M/31082 Norgren Air Springs Made by ContiTech FD138-18 DS Double Convolution Air Actuator 8" x 2

Type

Order No.

Rubber bellows only

66501

with dismountable plates, G1/2 air inlet

66505

Min. pressure 0 bar
Return force to min height ≤ 300 N
Overall weight 3.5 kg

Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M10

Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10

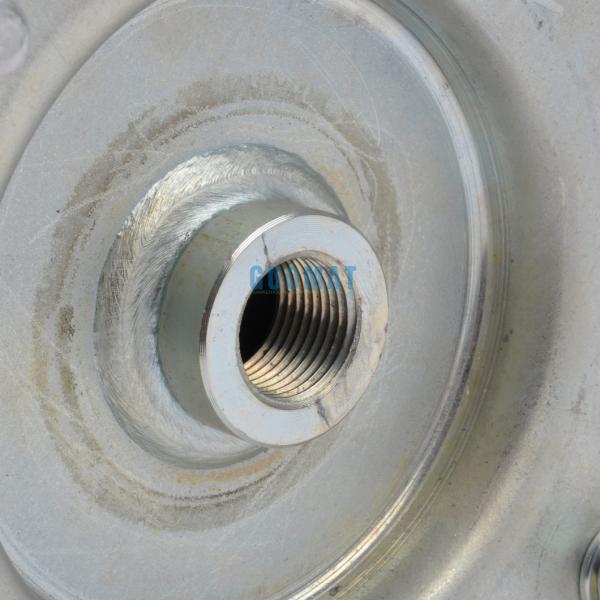

Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G3/4

Cover Plate
Top Cover Plate Diameter (Width): 184 mm

Bottom Cover Plate Diameter (Width): 184 mm

Material top and bottom plate:Steel

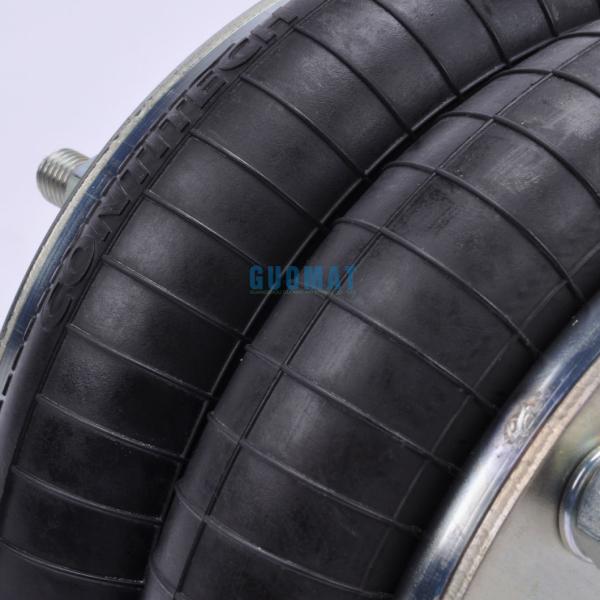

Rubber Bellows
Diameter max at 7 bar:225MM

Stroke of Rubber Bellows:75mm-225m

Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop

Vibration isolation - dynamic characteristic values

Design height H: recommended 200mm, minimum 180mm

Pressure p [bar]

3

4

5

6

7

8

Vol. V [l]

Force (Load) [kN]

3.9

5.3

6.7

8.2

9.7

11.3

Spring rate [N/mm]

76

97

118.5

140

161

181.5

4.1

Natural frequency [Hz]

2.2

2.2

2.1

2.1

2.1

2.0

Pneumatic application - static characteristic values

Force F [kN]

Pressure p [bar]

3

4

5

6

7

8

Vol. V [l]

Height H [mm]

220

2.9

4.03

5.16

6.41

7.65

8.98

4.3

200

3.86

5.27

6.68

8.21

9.73

11.3

4.1

150

5.9

8

10.1

12.4

14.7

16.9

3.2

100

8.2

10.9

13.7

16.6

19.4

22.4

2

Other Norgen air springs models:

Model Nominal Ø (inch) x convolutions Maximum stroke (mm) Air Port size
M/31021 2 3/4" x 1 20 G1/4
M/31022 2 3/4" x 2 45 G1/4
M/31023 2 3/4" x 3 65 G1/4
M/31041 4 1/2" x 1 140 G3/8
M/31042 4 1/2" x 2 280 G3/8
M/31061 6" x 1 155 G1/2
M/31062 6" x 2 155 G1/2
M/31081 8" x 1 95 G3/4
M/31082 8" x 2 185 G3/4
M/31091 9 1/4" x 1 105 G3/4
M/31092 9 1/4" x 1 230 G3/4
M/31121 12" x 1 105 G3/4
M/31122 12" x 2 215 G3/4
M/31123 12" x 3 315 G3/4
