Specifications
Brand Name :
GUOMAT
Model Number :
1B7731
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5pcs
Price :
USD49.9-59.9/PC
Payment Terms :
L/C, T/T, Western Union Or Others
Supply Ability :
1000PCS/Week
Delivery Time :
3-7 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Item :
Single Rubber Air Bellows
Condition :
Brand New
OEM No. :
W01 358 7731
Trademark :
GUOMAT
HS Code :
8708809000
Air Connection :
1/4NPTF
Max.Diameter :
165mm
Stroke :
50mm-115mm
Description

W013587731 Firestone Rubber Single Vibration 1B131 Industrial Air Spring

Product Details

FIRESTONE OEM No. FIRESTONE Cross No.
W013587731 WO13587731
W01 358 7731 WO1 358 7731
W01-358-7731 WO1-358-7731

GUOMAT 1B7731 Technical Data

OEM Number: W01-358-7731

Working Temperature: -40°C bis +70°C

Failure Testing: ≥3 millions

Gas Hole / Air Inlet: 1/4NPTF

Top Cover Plate Screw (Nut) Tooth: 2X3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth: 2X3/8-16UNC

Top Cover Plate Diameter: 115mm

Bottom Cover Plate Diameter: 115mm

Screw Center Distance of Top Cover Plate: 44.5mm

Screw Center Distance of Bottom Cover Plate: 44.5mm

The Rubber Bellow Max. Diameter: 165mm

The Working Stroke: Max 115mm-Min.50mm

The Maximum Height: 115mm

The Minimum Height: 50mm

Compression Height : 65mm

Vibration isolation-dynamic characteristic values

Design heigh H:recommended 115mm,minimum 100mm

Pressure P bar 3 4 5 6 7 8 Vol V (I)
Force(Load) kN 2.9 3.8 4.8 5.8 6.8 7.7 1.5
Spring rate N/cm 855 1110 1340 1590 1840 2050
Natural frequency Hz 2.8 2.7 2.7 2.6 2.6 2.6

Pneumatic application-static characteristic calues

Force F(kN)

Pressure P bar 3 4 5 6 7 8 Vol .(I)
Height H (mm) 120 2.6 3.5 4.4 5.3 6.2 7.2 1.54
110 3.1 4.2 5.2 6.3 7.4 8.5 1.46
100 3.5 4.7 5.9 7.2

8.3

 9.6 1.38
90 3.9 5.2 6.5 7.9 9.2 10.5 1.27
80 4.2 5.6 7.0 8.5 9.8 11.3 1.18
70 4.5 5.8 7.4 9.0 10.4 12.0 1.07

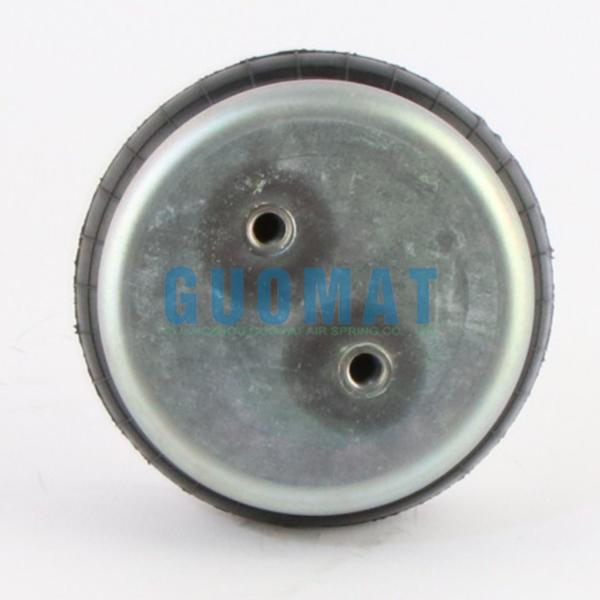

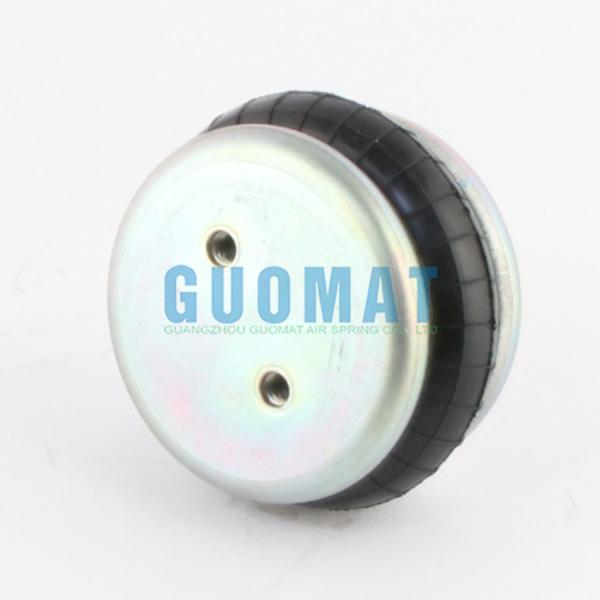

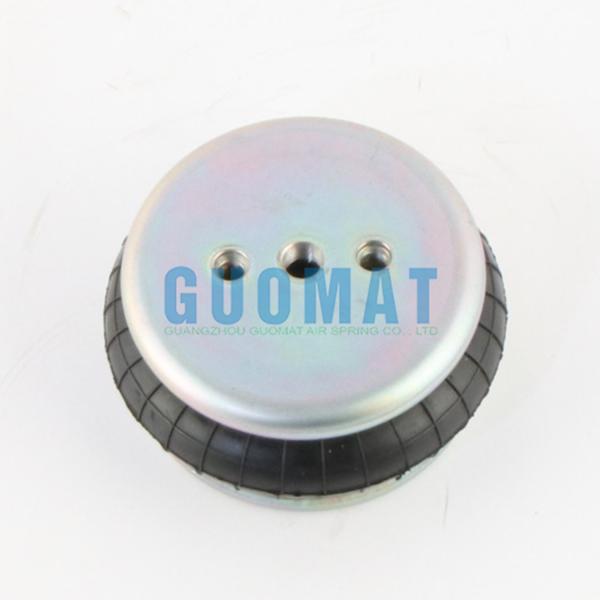

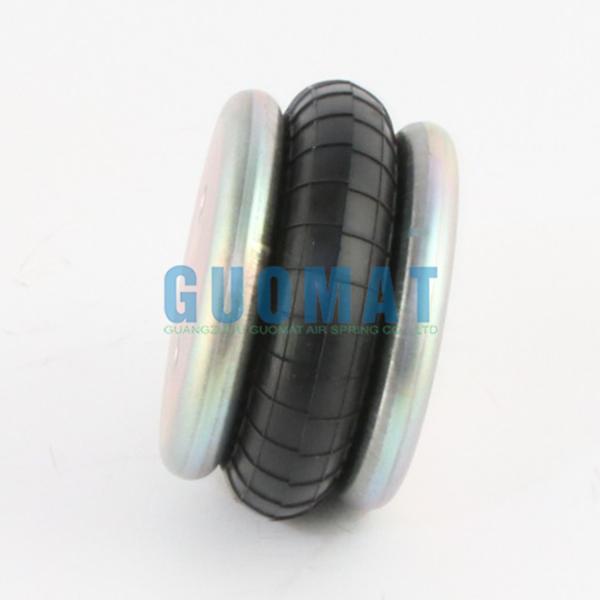

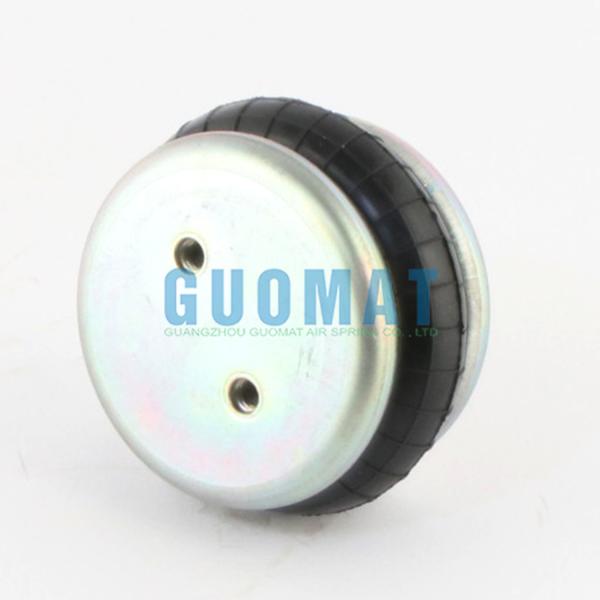

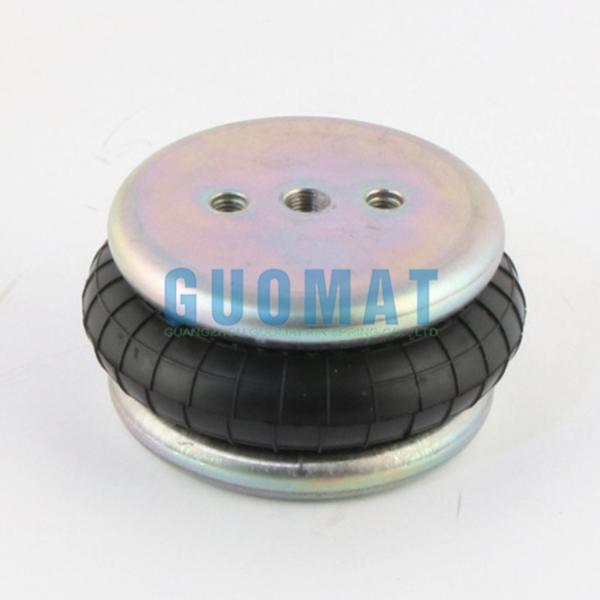

Product Images
W013587731 Firestone Rubber Single Vibration 1B131 Industrial Air Spring
