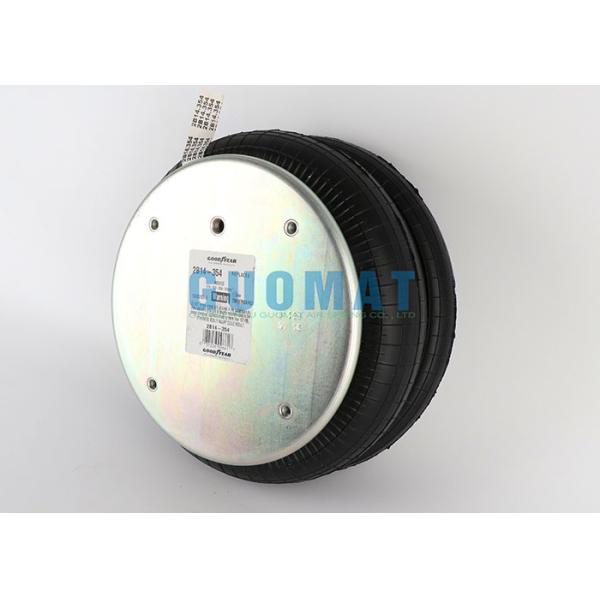

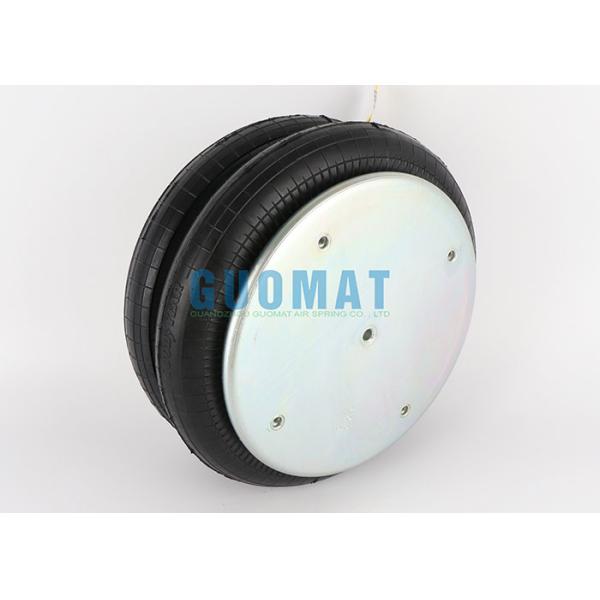

Goodyear 2B14-354 Suspension Rubber Air Spring 578-92-3-353 Double Convoluted Air Bellow Replacement

Product Description

Brand: Goodyear Brand

Spring Origin: Mexico

2B14-354 Goodyear Air Spring Technical Data

Top Plate Diameter: 11.30
Top Plate Hole/Stud: 5
Air Fitting: 1/4NPTF
Tapped Hole on Top Retainers: 4x3/8-16
Distance Between Tapped Holes: 6.25
Distance Between Tapped Hole and Air Fitting:3.12
Bottom Plate Diameter: 11.30
Bottom Plate Hole/Stud: 4
Tapped Hole on Pistons: 4x1/2-13
Max.Height: 11.3
Min.Height: 3.7

Manufacturer Number

Automann Number: ABSP2B34R-7145

Contitech Number: FD530-22 374

Contitech Number: FD 530-22 374

Contitech Number: FD530-22374

Contitech Number: FD 530-22374

Dayton Number: 354-7145

Dayton Number: 354 7145

Firestone Number: W013587145

Firestone Number: W01 358 7145

Firestone Number: W01-358-7145

Int'l/Navistar Number: 554796C1

Load Guaro Number: SC2016

Nacj Truck Number: 57QL239

Ridewell Number: 1003587145C

Ridewell Number: S-4540-C

Triangle Number: 4374

Tro Number: AS71450

VOL-VO Number: 35203-0005

VOL-VO Number: 35203-3204

Automann Bellows Number: SP2B34R

Contitech Bellows Number: 64548

Firestone Bellows Number: 7145

Air Springs Applications

Air springs are a type of flexible suspension system that can be used in a variety of applications, ranging from heavy-duty commercial vehicles to packaging equipment. They are often used to absorb shock and vibration and to provide a smooth ride under varying load conditions. Common applications for air springs include:

• Suspension systems for heavy-duty trucks, buses, and trailers
• Industrial machinery and equipment, such as conveyor belts and scissor lifts
• Material handling systems, such as sawmills and packaging equipment
• Clutch systems in automotive and other vehicles
• Amusement park rides and other entertainment applications

Air springs offer several advantages over traditional steel springs, including greater load-carrying capacity, improved ride comfort, and simplified design and installation. They are also highly durable and can withstand harsh operating conditions. As a result, air springs are widely used in many different industries and applications around the world.

Goodyear Double Convoluted Air Spring
