579-922-833 Goodyear Air Spring Cushion 2B6-833 Air Ride Suspension
579-922-833 Goodyear Air Spring Cushion 2B6-833 Air Ride Suspension
579-922-833 Goodyear Air Spring Cushion 2B6-833 Air Ride Suspension
579-922-833 Goodyear Air Spring Cushion 2B6-833 Air Ride Suspension
579-922-833 Goodyear Air Spring Cushion 2B6-833 Air Ride Suspension
579-922-833 Goodyear Air Spring Cushion 2B6-833 Air Ride Suspension
579-922-833 Goodyear Air Spring Cushion 2B6-833 Air Ride Suspension
579-922-833 Goodyear Air Spring Cushion 2B6-833 Air Ride Suspension
Specifications
Brand Name :
GUOMAT
Model Number :
2B6-833
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$99.9-139.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Brand :
Goodyear
Warranty :
1 Year Warranty
Quality :
100 % Tested
Pressure Ability :
0.2-0.8 M PA
Material :
Rubber And Iron
keyword :
Goodyear Air Spring
Product Type :
Air Shock Absorber
Color :
Black
Description

Goodyear Air Spring Cushion Suppliers 2B6-833 Air Ride Suspension 579-922-833

Product Description

Item: Goodyear Air Spring

Material: Rubber+Iron

Warranty: 1 Year

MOQ: 10 Pieces

Color: Balck

Application: For Small Press Machine

Package: According to customer requirement
Shipping: Huangpu Port

Original Equipment Manufacturer Number

GOODYEAR Manufacturer Part Number 2B6-833

GOODYEAR Manufacturer Part Number 2B 6-833

GOODYEAR Manufacturer Part Number 2B6833

GOODYEAR Manufacturer Flexmember 579922833

GOODYEAR Manufacturer Flexmember 579 922 833

GOODYEAR Manufacturer Flexmember 579-922-833

GOODYEAR Manufacturer Flexmember 579923510

GOODYEAR Manufacturer Flexmember 579 92 3 510

GOODYEAR Manufacturer Flexmember 579-92-3-510

Goodyear Air Spring Super-Cushion

Goodyear 2B14-470, Bellows Number 578-92-3-356

Goodyear 2B14-476, Bellows Number 578-92-3-356

Goodyear 2B14-479, Bellows Number 578-92-3-356

Goodyear 3B12-312, Bellows Number 578-92-3-100

Goodyear 3B12-315, Bellows Number 578-92-3-100

Goodyear 3B12-319, Bellows Number 578-92-3-100

Goodyear 3B12-324, Bellows Number 578-92-3-100

Goodyear 3B12-322, Bellows Number 578-93-3-103

Goodyear 3B12-323, Bellows Number 578-93-3-103

Goodyear 3B12-325, Bellows Number 578-93-3-103

Goodyear 3B12-326, Bellows Number 578-93-3-103

Goodyear 3B12-347, Bellows Number 578-93-3-103

Goodyear 3B14-356, Bellows Number 578-93-3-350

Goodyear 3B14-359, Bellows Number 578-93-3-350

Goodyear 3B14-360, Bellows Number 578-93-3-350

Goodyear 3B14-361, Bellows Number 578-93-3-350

Goodyear 2B6-530, Bellows Number 579-92-3-510

Goodyear 2B6-535, Bellows Number 579-92-3-515

Goodyear 2B7-540, Bellows Number 579-92-3-525

Goodyear 2B7-541, Bellows Number 579-92-3-525

Goodyear 2B7-542, Bellows Number 579-92-3-525

It is use in a wide variety of actuation and vibration isolation.

With time-tested designs incorporating fabric-reinforced or natural rubber flex-member construction and corrosion-protected and retainers, Air Springs provide superior quality and performance.

As an actuator, Air Springs can provide either linear or angular motion.

These air springs offer a favorable stroke-to-compressed-height ratio when compared to air cylinders, and can accept a wide variety of actuation media such as air, water, nitrogen or anti-freeze.

Preventative Maintenance Air Spring

1

Check the outside diameter of the air spring. Check for irregular cracks.

2

Check the air pipe. Verify that the air tube does not have any contact with the outer diameter of the air spring.

3

When the air spring is at the maximum outer diameter, check whether the clearance around it is sufficient.

4

Check whether there is foreign matter accumulation on the outer diameter of the piston

5

The correct suspension height should be maintained.

6

The height valve (height control valve) plays an important role in keeping the entire air spring system working as required. Clean, inspect or replace as necessary.

7

Check whether the shock absorber is installed correctly, and check whether there is oil leakage and whether the end connection parts are damaged.

8

Check all mounting hardware (nuts, screws) for tightness

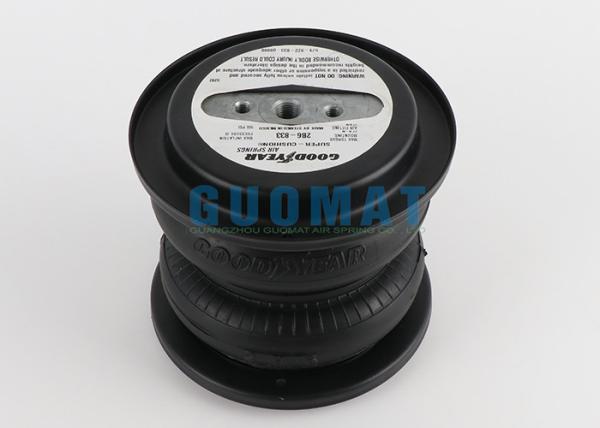

The Real Pictures of Goodyear 2B6-833 Double Convoluted Air Spring
