Specifications
Brand Name :
GUOMAT
Model Number :
1T9034
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$69.9-99.9/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Spring Material :
Rubber+Steel
Warranty :
1 Year
Quality :
100% Tested
Packing :
Neutral Packing or Customized Packing
Firestone :
W01-358-9034
Style :
1T15M-0
Max. Height :
330mm
Application :
For Truck Air Suspension
Description

W01-358-9034 Firestone Truck Air Spring 3/4 NPT Blind Nuts Pneumatic Bellows Actuators

Product Description

GUOMAT 1T9034 truck air spring is manufactured with reference to the specifications of Firestone W01-358-9034, which can completely replace the original air spring, providing a comfortable and stable driving environment for your truck.

OEM Number

Reference Firestone Part Number 9034

Reference Firestone Part Number W013589034

Reference Firestone Part Number W01-358-9034

Reference Firestone Part Number W01 358 9034

Reference Firestone Part Number WO13589034

Reference Firestone Part Number WO1-358-9034

Reference Firestone Part Number WO1 358 9034

Reference Firestone Bellows Number 1T15M-0

Reference Firestone Bellows Number 1T15M 0

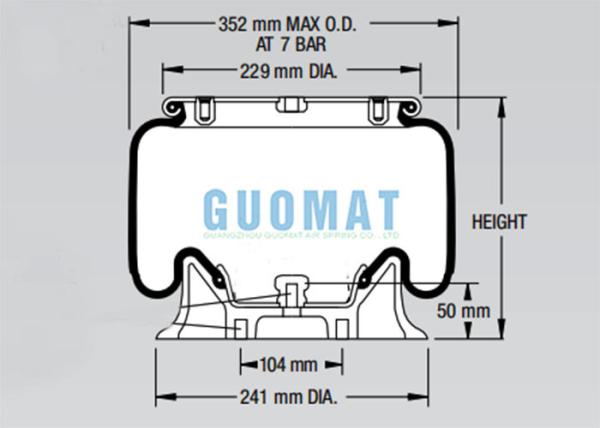

W01-358-9034 Truck Air Spring Technical Data

Top Cover Plate Diamater: 229mm

Air Inlet: 1/4 or 3/4 BSP

Blind Nuts: M8X1.25

The Distance of Air Inlet and Blind Nut: 73mm

Center Distance between Blind Nuts: 157mm

Maximum Outside Diameter of Rubber Bellows: 352mm (At 7 Bar)

Bumper: Optional

Base Width: 241mm

MAX.Height: 330mm

MIN.Height: 109mm

1T15M-0 Style - Firestone Truck Air Suspension Spring

Firestone Air Spring Assembly Number: W01-358-9030 , Blind Nuts , 1/4 NPT (Two Ply Bellows)

Firestone Air Spring Assembly Number: W01-358-9031 , Blind Nuts , 1/4 NPT , Rubber Bumper (Two Ply Bellows)

Firestone Air Spring Assembly Number: W01-358-9036 , Blind Nuts , 3/4NPT , Rubber Bumper (Two Ply Bellows)

Firestone Air Spring Assembly Number: W01-358-9038 , Countersunk Steel Bead Ring , 40mm Bolts , Nuts , Washers (Two Ply Bellows)

What are the Reasons for Using Air Springs

  • Improved Stability: Air springs can provide higher spring rates, which can improve vehicle stability, especially in crosswinds and emergency maneuvers.
  • Level Suspension: Air springs help keep the rear suspension level when carrying heavy loads or towing a trailer, improving handling and safety.
  • Increased load carrying capacity: By providing additional support, air springs can increase the maximum load carrying capacity of a vehicle.
  • Comfort: Compared with metal springs, air springs can provide a smoother ride, reduce fatigue and improve passenger comfort.
  • Eliminates bottoming out: Air springs also help prevent vehicle bottoming out under heavy loads or rough conditions.

About Delivery

Delivery Time

Usually 3-8 working days after receiving your payment

Packing

Brown carton packing ; we can also pack according to your requirements

Marks

Generally display weight and size. We can also make shipping marks according to your requirements

Transportation Method

Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods

International Transport

Due to the international transportation, we need to pack according to strict requirements, in order to avoid the goods from being impacted. If the logistics information is stagnant during the transportation of the goods, please wait patiently. If you have any questions, please feel free to contact us.

W01-358-9034 Truck Pneumatic Bellows Actuators Real Pictures

W01-358-9034 Firestone Truck Air Springs 3/4 NPT Blind Nuts Pneumatic Bellows Actuators
