Specifications
Brand Name :
GUOMAT
Model Number :
1B7544
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$49.9-59.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Item Name :
Rubber Air Spring
Warranty :
12 Months
Material :
Rubber + Steel
MOQ :
10 Pieces
Goodyear No. :
1B7-544
Quality :
100 % Tested
Type :
Air Shock
Function :
Reduce Vibration
Description

1B7544 Single Convolution Industrial Air Spring Replace 1B7-544 Goodyear Rubber Air Bag

Product Description

1B7-544 is a Goodyear model number and refers to a specific type of rubber air bag manufactured by Goodyear. A rubber air bag, also known as an air spring or air bag, is an inflatable component used in a variety of applications, including automotive suspension systems, industrial machinery, and air ride systems.

Technical Parameters

The diameter of the upper cover plate is 105 mm, G1/4 air hole, threaded hole of M8 specification, 15 mm deep, and the center distance between the threaded holes is 70 mm.

The diameter of the bottom cover plate is 105 mm, the threaded holes of M8 specification are 15 mm deep, and the center distance between the threaded holes is 70 mm.

When the air spring is at 0.7MPa, the maximum outer diameter is 195mm, the natural height is 120mm, the minimum compression height is 55mm, and the full stroke is 75mm

Working medium

water, air

Working pressure

≤0.7Mpa

Burst pressure

≥1.6Mpa

Fatigue times

≥106 times

Applicable temperature

-35℃-+60℃

Cross Reference

Goodyear Number: 1B7-544 / 1B 7-544 / 1B7 544

Goodyear Flex Number: 579-91-3-520 / 579 91 3 520 / 579913520

Goodyear Bellow Number: 579-912-544 / 579 912 544 / 579912544

ENIDINE Number: YI-1B7-544 / YI 1B7 544 / YI1B7544

1B7-544 Goodyear Air Spring Applications
The 1B7-544 Goodyear Air Spring is a special type of air spring manufactured by Goodyear. It is the use of compressed air to provide support and cushioning for a variety of applications, especially in industrial and automotive environments. They are designed to absorb shock and vibration and are often used in suspension systems to improve ride comfort and stability.

While specific applications for 1B7-544 Goodyear Air Spring may vary depending on the specific needs of a particular system or vehicle, it is typically used in applications requiring load carrying capacity such as trucks, trailers, buses and agricultural equipment. Air springs are designed to provide a smooth and controlled ride, reducing the impact of bumps and uneven roads on the vehicle and its cargo.

Goodyear Convoluted Air Spring

Goodyear 1B14-350 (Bellows No. 578-91-3-351)

Goodyear 1B14-358 (Bellows No. 578-91-3-352)

Goodyear 2B9-200 (Bellows No. 578-92-3-202)

Goodyear 2B9-250 (Bellows No. 578-92-3-206)

Goodyear 2B9-246 (Bellows No. 578-92-3-211)

Goodyear 2B9-607 (Bellows No. 578-92-3-208)

Goodyear 2B9-495 (Bellows No. 578-92-3-217)

Goodyear 2B10-226 (Bellows No. 578-92-3-250)

Goodyear 2B12-300 (Bellows No. 578-92-3-309)

Goodyear 2B12-434 (Bellows No. 578-92-3-310)

Goodyear 2B12-345 (Bellows No. 578-92-3-315)

Goodyear 2B14-354 (Bellows No. 578-92-3-353)

Goodyear 2B14-362 (Bellows No. 578-92-3-356)

Goodyear 3B12-300 (Bellows No. 578-93-3-100)

Goodyear 3B12-322 (Bellows No. 578-93-3-103)

Goodyear 3B14-351 (Bellows No. 578-923-3-350)

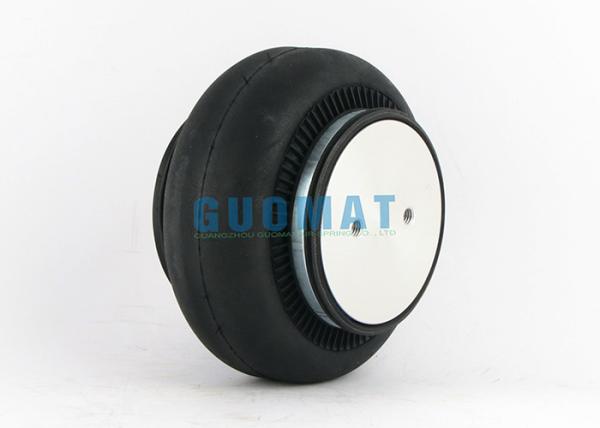

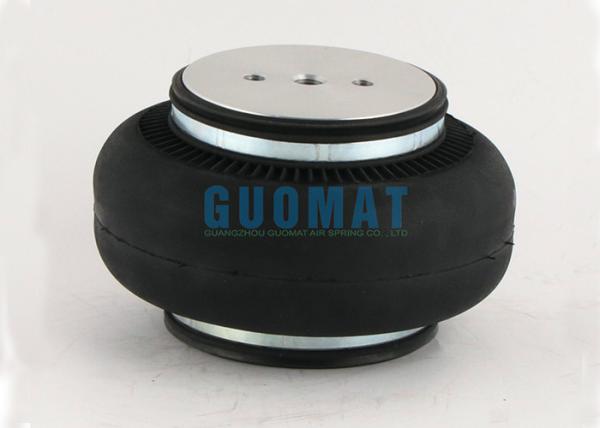

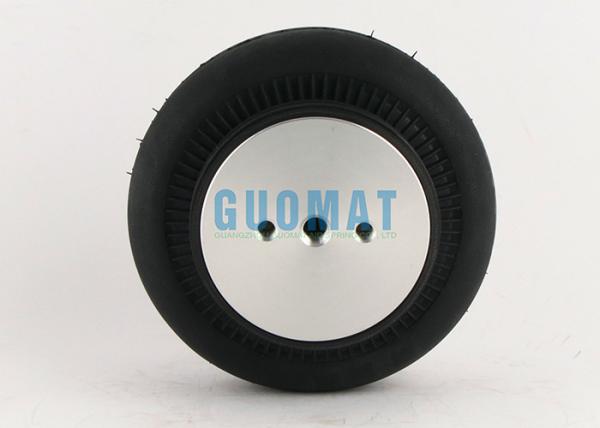

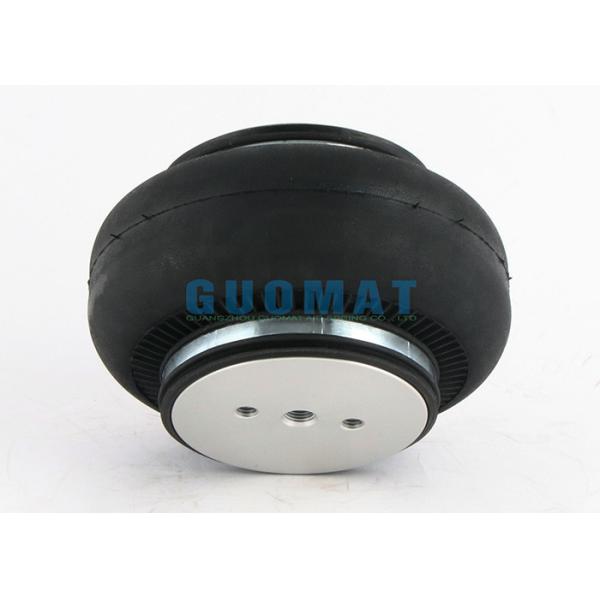

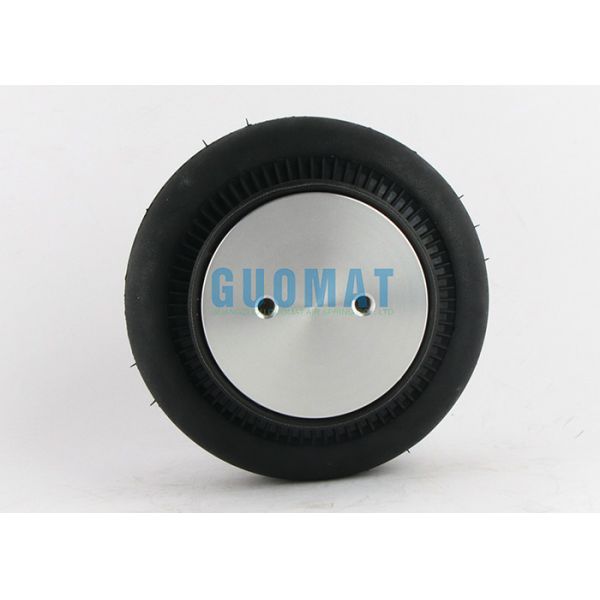

The Real Pictures

1B7544 Single Convolution Industrial Air Spring Replace 1B7-544 Goodyear Rubber Air Bag1B7544 Single Convolution Industrial Air Spring Replace 1B7-544 Goodyear Rubber Air Bag
