CONTITECH 836 M2 K1**CPL Truck / Bus Air Springs GUOAMT NO.:1T836M2K1 CPL
CONTITECH 836 M2 K1**CPL Truck / Bus Air Springs GUOAMT NO.:1T836M2K1 CPL
Specifications
Brand Name :
GUOMAT
Model Number :
1T17AR-4.5 / W01 M58 8721
Certification :
ISO/TS16949
Place of Origin :
Guangdong , China
MOQ :
1pc
Price :
$59-159/pc
Payment Terms :
T/T, Western Union,paypal or others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customer's need
Material :
Rubber Bellows ,Steel Piston
CONTITECH :
836M2 K1
Other Name :
Trailer Air Spring
Cover Plate OD :
Ø273 mm
Air inlet / Air Fitting :
1/4NPT
GUOAMT NO :
1T836M2K1 CPL
Description

CONTITECH 836 M2 K1**CPL Truck / Bus Air Springs GUOAMT NO.:1T836M2K1 CPL

OEM Cross Number:

GUOAMT NO.:1T836M2K1 CPL

CONTITECH 836 M2 K1**CPL

CONTITECH 836M2K1

CONTITECH 836M2 K1

OEM Suspension Supplier Number:

GUOAMT NO.:1T836M2K1 CPL

CONTITECH 836 M2 K1**CPL

CONTITECH 836M2K1

CONTITECH 836M2 K1

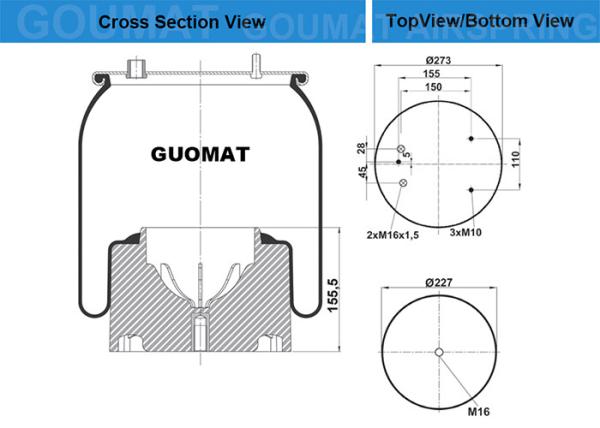

Technical data

❶ screw bolt / Stud

Top Cover Plate screw bolt / Stud Tooth :3 pcs xM10

Combine bolt : 2 pcs M16x1.5

Distance between two closer bolt:110 mm

Distance between two faster bolt:155 mm

Distance between combined bolt and bolt:28 mm

❷ Gas Hole / Air inlet /Air Fitting

Gas Hole / Air inlet : two piece of air inlet 1/4NPT

❸ Cover Plate

Top Cover Plate Diameter: Ø273 mm

❹Rubber Bellows

❺ Bumper block / Buffer block

Without Bumper Block

❻ Bottom Piston

Bottom Piston Diameter : Ø227 mm

Bottom Piston Height :155.5 mm

❼ Piston Bolt

Piston Bolt Tooth : 1XM16

In the Middle of the Piston
