1B5070 Industrial Air Spring Firestone W01-358-6994 Contitech FS 330-11 647 Tiangle 6374 / 4467
1B5070 Industrial Air Spring Firestone W01-358-6994 Contitech FS 330-11 647 Tiangle 6374 / 4467
Specifications
Brand Name :
GUOMAT
Model Number :
1B5070
Certification :
ISO/TS16949:2009
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Rubber Steel
Contitech OEM :
FS 330-11 647
Warranty :
1 Year
Weight :
5.0 kg
Other names :
Air Actuation
Pressure Ability :
0.2-0.8 M Pa
Firestone :
W01-358-6994
Description

1B5070 To Firestone W01-358-6994 Contitech FS 330-11 647 Tiangle 6374 / 4467

Specifications and Technical Data

Contitech Part Number:FS 330-11 647 / FS330-11 647 / FS33011 647

Loading Capacity at 20 psig: 1,300 lbsf

Loading Capacity at 60 psig: 3,900 lbsf

Loading Capacity at 90 psig: 5,850 lbsf

Operating Temperature: 57Cº to -54Cº

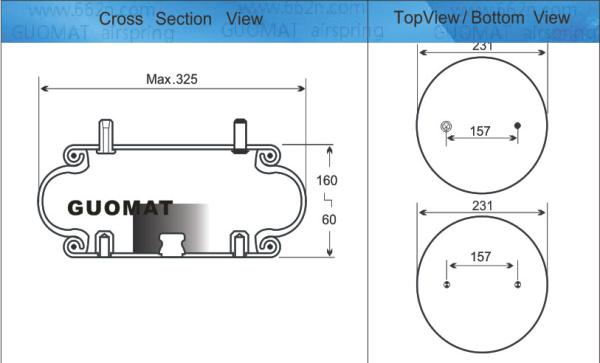

Compressed Height: 2.12

Top Cover Plate Diameter: 9.00 inches / 231mm

Bottom Cover Plate Diameter: 9.00 inches / 231mm

Screw Center Distance : 157 mm

Distance Gas Hole Between Nut 66 mm

Top Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25

Bottom Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25

Rubber Bellows MAX Diameter(Maximum Diameter): 12.9 inches / 325 mm

Rubber Bellows Natural Diameter 300 mm

The Working Stroke : MAX 160 mm to MIN 60 mm

Compressed Height: 2.12 inches / 105 mm

Gas Hole / Air inlet : 1/4 NPT

Compressed height: 2.70 inches
Top plate number: 3235
Top plate width: 9.00 inches
Piston No.: 3183
Piston width: 9.00 inches
Firestone bellows number: 19
Triangle part number: 4467
Number of triangular bellows: 6374
Note: Texas capabilities
Manufacturer Part Number: W01-358-6994

OEM Original Equipment Manufacturer:

GUOMAT

 1B5070

contitech

 FS330-14
Firestone

W01-358-6994

W01 358 6994

W013586994

Tiangle 6374

Tiangle 4467

The usal kinds of Single Convolution Air Actuator

Single Convolution Air Actuator
All Measurements Are In Mm
GUOMAT NO. Contitech NO. Min. Design height Installation Space Required Max. Stroke
1B4060 FS 40-6 50 160 60
1B5050 FS 50-5 51 165 44
1B7070 FS 70-7 51 180 64
1B10010 FS 100-10 51 225 94
1B1209 FS 120-9 50 230 85
1B1210 FS 120-10 51 245 99
1B12012 FS 120-12 51 250 119
1B20010 FS 200-10 51 265 89
1B33011 FS 330-11 51 340 99
1B33014 FS 330-14 51 360 129
1B53011 FS 530-11 51 400 124
1B53014 FS 530-14 51 420 134
1B96012 FS 960-12 63 480 117
1B133011 FS 1330-11 63 570 107
