Steel And Rubber Goodyear Air Cushion 2B9-280 Firestone Part NO. W013586941 SAF Holland 57006941
Steel And Rubber Goodyear Air Cushion 2B9-280 Firestone Part NO. W013586941 SAF Holland 57006941
Steel And Rubber Goodyear Air Cushion 2B9-280 Firestone Part NO. W013586941 SAF Holland 57006941
Steel And Rubber Goodyear Air Cushion 2B9-280 Firestone Part NO. W013586941 SAF Holland 57006941
Specifications
Brand Name :
GUOMAT
Model Number :
2B6941
Certification :
ISO/TS16949:2009
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Steel And Rubber
Contitech :
FD 200-19 450
Warranty :
12 Months
Weight :
3.5 kg
Other Name :
Contitech Air Spring
Pressure Ability :
0.2-0.8 M Pa
Firestone :
W01 358 6941
Goodyear :
2B9-280
Description

Goodyear Air Cushion 2B9-280 Firestone Part NO. W013586941 SAF Holland 57006941



OEM Original Equipment Manufacturer:

Reference OEM
GUOMAT Part NO. 2B6941
Firestone Part NO. W01-358-6941 / W01 358 6941 ／ W013586941
Contitech Part NO. FD 200-19 448 ／ FD200-19 448 ／ FD20019 448
Contitech Bellows NO. 161295
Goodyear Part NO. 2B9-265 ／ 2B9265／ 2B9 265
Goodyear Part NO. 2B9-280 / 2B9 280 / 2B9280
Goodyear Bellows NO. 578923202/6 ／ 578923202/6 ／ 578923202/6
Triangle Part NO. 6325
Triangle Bellows NO. 4448
Histeer Part NO. 10302
SAF Holland Part NO. 57006941

CONTI 64512
CONTI FD 200-19 448

FIRESTONE 6941

FIRESTONE W013586941

HISTEER 10302

RIANGLE 4448

TRP AS69410

Air spring supplier brand name: Goodyear

Reference: 578923202

Competitor/supplier number: 2B9265

Air spring supplier brand name: Goodyear

Reference: 578923206

Competitor/supplier number: 2B9280

Air spring supplier brand name: ContiTech

Reference: 161295

Competitor/supplier ID: FD20019448

Air spring supplier brand name: Triangle

Reference: 6325

Competitor/supplier ID: 4448

Suspended supplier name: Histeer

Competitor/supplier ID: 10302

Suspension supplier name: Langes

Suspended supplier name: SAF Netherlands

Competitor/supplier ID: 57006941

Firestone Trim name: w013586941

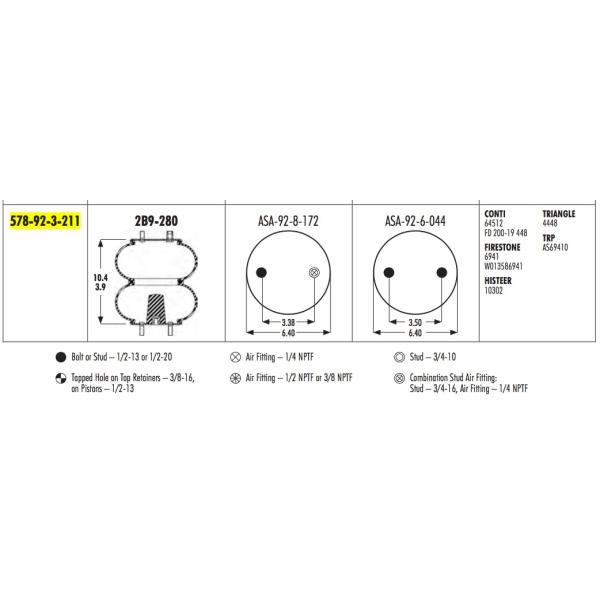

GUOMAT 2B6941 Specifications and Technical Data

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth :1 pcs X 3/4-16UNC ,1 pcs X 1/2-16UNC

Screw Center Distance of Top Cover Plate : 86 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 1/2-16UNC

Screw Center Distance of Bottom Cover Plate : 89 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPTF

Screw Center Distance Between Gas Hole and Nut : together with the right size bolt

❸ Cover Plate

Top Cover Plate Diameter: 160 mm

Bottom Cover Plate Diameter: 160 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter : 224 mm

The Working Stroke : MIN 81 mm to MAX 274 mm

Maximum Height : 274 mm

Minimum Height :81mm

Stroke Height : 193 mm

❺ Bumper block / Buffer block

With Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Steel And Rubber Goodyear Air Cushion 2B9-280 Firestone Part NO. W013586941 SAF Holland 57006941

Steel And Rubber Goodyear Air Cushion 2B9-280 Firestone Part NO. W013586941 SAF Holland 57006941
