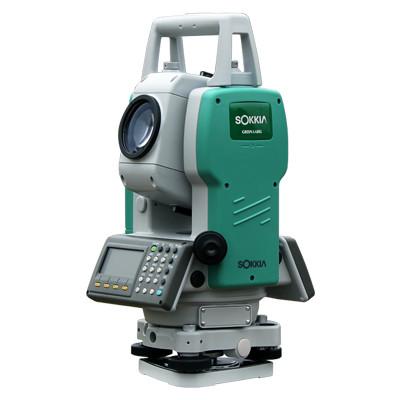

Sokkia Set02N Total Station
Sokkia Set02N Total Station
Specifications
Place of Origin :
China
Brand Name :
Sokkia
Model Number :
Set02N
MOQ :
1pc
Packaging Details :
with standard exporting package
Delivery Time :
within 3-5work days after the goods are paid .
Payment Terms :
TT ,western Union
Supply Ability :
10000 Per Year
Description

Sokkia Set02N Total Station :

Sokkia Set02N Total Station

Details:

Top quality.

Easy operation: Alphanumeric keyboard.

Complete application programs.

Xtended internal memory, max: 24000 points.

Long-time working battery: 10 hours.

Supprior waterproof. Dustproof capabilities. High accuracy and long measuring range.

Model

SET-02N

Telescope

Length

150mm

Objective aperture

45mm(EDM: 50mm)

Magnification

30 ×


Erect

Field of view

1° 30'

Resolving power

3.0 "

Shortest focus

1.3m

Distance measurement section

Single prism

2, 000m

Three prism

2700m

Measuring Accuracy

± (2mm+2ppm× D)m. s. e

Measuring time

(first time)

fine

1.2sec(4sec)

tracking

0.4sec(3sec)

Angle measurement section

Accuracy

2 "

Method

Absolute encoder

Minimum readout

1" /5 "

Diameter of circle

71mm

displaying

display

Double sides

Tilt compensator

method

Single axis

range

± 3'

Level sensitivity

Circular level

10' /2mm

Plate level

30 " /2mm

Optical plummet

Magnification

3x

Focus range

0.5m-∞

Field of view

5°

Durability

Proof water

and dust

IP54

Working temperature

-20

Power supply

Charger

TBC-2

Battery

TBB-2, 2300mA

7.2V(NI-MH)

Working time

45hours

(angle measurement)

10hours

(angle and distance measurement)

others

size

336H× 184W× 172L

Weight(with battery)

4.9kg

Data port

RS-232C

Internal memory

24000points
