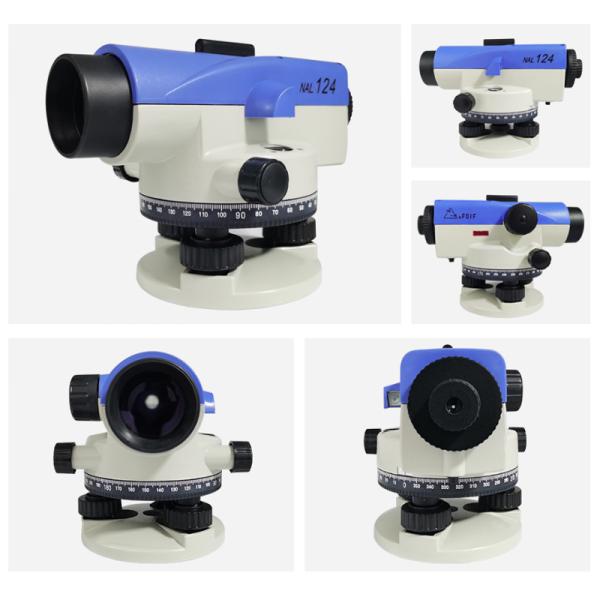

Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X
Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X
Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X
Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X
Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X
Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X
Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X
Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X
Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X
Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X
Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X
Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X
Specifications
Brand Name :
FOIF
Model Number :
NAL124
Place of Origin :
China
MOQ :
1 set
Price :
＄165
Payment Terms :
T/T, L/C
Delivery Time :
30 work day
Product Name :
Automatic Level FOIF NAL124
Warranty :
1 Year
Magnification :
24X
Setting accuracy :
≤0.5"
Field of view at 100 :
>3.2m
Shortest focusing distance :
≤0.6m
multiplication constant :
100
free diameter of objective :
36mm
Circular bubble :
8'/2mm
working range :
≥±15'
graduation :
360 or 400gon
Weight :
2kg
Description

Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X

Product Description

Specifications

Magnification 24X
Standard deviation per kilometer double-run ±2.0mm
Setting accuracy(standard deviation) <0.5"
Compensator working scope ≥±15′
Telescope imaging Erect
Clear objective aperture 36mm
Field of view at 100m >3.2m
Shortest focusing distance 0.5m
Stadia multiplication constant 100
Stadia additive constan 0
Circular bubble precision 8′/2mm

Graduation

 360 or 400gon
Interval 1 or 1gon
Adoption (Base Plate) Flat and Dome
Central fixing screw W 5/8" (55°)
Storage temperature -40℃ to +75℃
Operating temperature -30℃ to +50℃
Water and dust resistance IP55
Weight without container 2.0kg

Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X

Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X

Usage
一, Instrument Installation
1,Adjust the tripod to the human eye level position, tighten the screws.
2,Adjust the tripod roughly horizontal, the tripod fixed on the ground
3,Mount the instrument on the tripod and tighten the centre screw.
4,adjust the foot screw handwheel, so that the blister is centred.
二, the blister levelling method
1,Adjust the instrument foot screw handwheel, so that the blister is centred.
2,screw the foot screw handwheel, so that the bubble to the centre of the scribing circle to move 1/2
3,the use of hexagonal wrench to adjust the bubble screw, so that the bubble moved to the centre
4,Repeat the above steps until the telescope turned to any direction of the circle water bubble is always in the centre.
5, the instrument turned 180 ° original blister should be in the centre, otherwise it must be corrected.
