Specifications
Brand Name :
HAIYE MEDICAL
Model Number :
HYHJ-KC
Certification :
CE/FDA/ISO13485/ISO9001
Place of Origin :
Shaanxi China
MOQ :
1SET
Price :
900-1500USD/SET
Payment Terms :
T/T
Supply Ability :
1000sets
Delivery Time :
5-8 work days
Packaging Details :
cartoon/protective box
Material :
316 Stainless Steel
Resolution :
960*480
Pixels :
2 million
Display :
3 "TFT color screen
Blades :
reusable, 5 different sizes
Carema Resolution :
1600 * 1200
Viewing angle :
70°± 2°
Depth of field :
3~100mm
Roatate angle :
front to back: 135 º, left to right: 275 º
Charging time :
<4h
Cycle life of battery :
> 800 times
Warranty :
1 Year
OEM service :
Yes, qty > 50 units
Description

Laryngoscopy Tools & LED Light Laryngoscope Set Surgical 316 Stainless Steel Medical Portable Endoscope

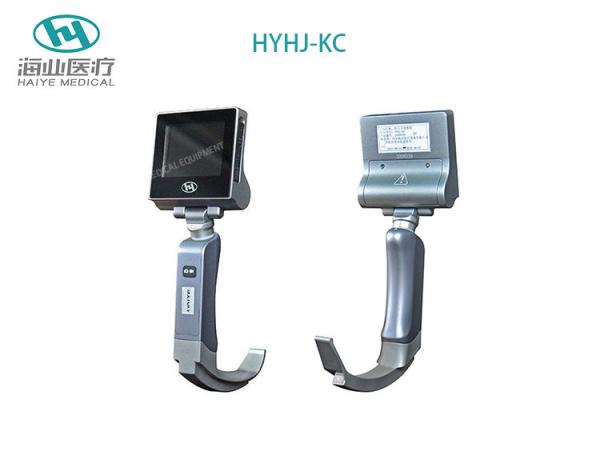

HAIYE NEW ARRIVEL VEDIO LARYNGOSCOPE : HYHJ-KC

  • The shell of the whole machine is made of medical-grade metal material, the high-grade, atmospheric, thick, solid handle is comfortable to hold;
  • Product configuration is rich, up to five specifications of the camera system can be replaced between different patients, to achieve a multi-purpose machine;
  • Digital camera system with high - resolution display, make intubation easier;
  • The laryngoscope is made of medical grade stainless steel, which can be used repeatedly after disinfection which reduce the cost;
  • Photo, video, freeze frame, storage, external play, large capacity battery, complete function

Description of Products:
The product HYHJ-KC’s design fully takes into account the particularity of clinical use, It adopts a large number of medical grade metal materials and advanced processing technology; optimized and improved the structure design, imaging quality and convenience of use which perfectly combines the appearance and use together.

Product features:

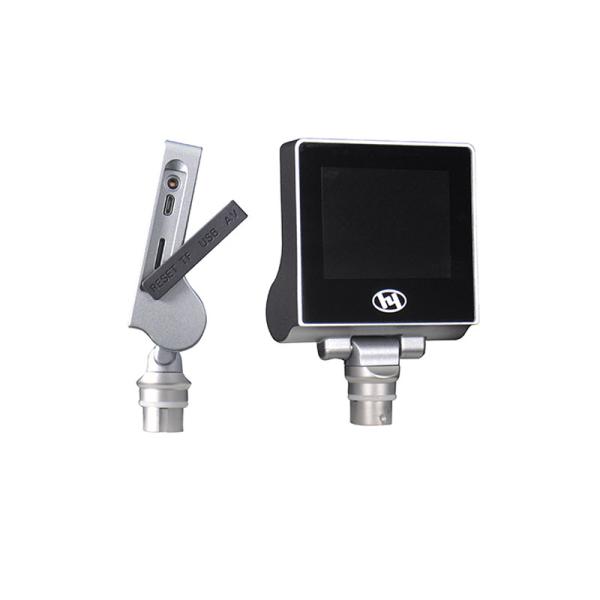

simple and graceful, clear imaging, simple operation, complete specifications. Products with photography, freeze frame, video recording, HD output, data storage, large capacity export and other functions. The large-capacity battery lasts longer, and the display can rotate from front to back, left to right.

Product configuration:
In order to enhance the convenience of use, the display screen can be connected with any size of the handle, the product can be reused and one-time use (5 specifications: adult large, adult medium, child, newborn, premature).
LED Light Surgical Laryngoscope Set 316 Stainless Steel Medical Portable EndoscopeLED Light Surgical Laryngoscope Set 316 Stainless Steel Medical Portable EndoscopeLED Light Surgical Laryngoscope Set 316 Stainless Steel Medical Portable EndoscopeLED Light Surgical Laryngoscope Set 316 Stainless Steel Medical Portable Endoscope

Technical parameters of video laryngoscope

resolution960×480pixel2million
effective depth of field3~100mmfield angle70±2º
stand-by time≥6hCharing time≤4h
battery liferecharge>800次display

3"TFT color display

rotation anglefront to right:0º~135º;left to right:0º~275º

LED light

illuminance:

≥3000lux

Working condition

temperature5℃~40℃humidity≤80%
atmospheric pressure:860hpa~1060hpaCharger output5V,2000mA
Charger input100~240V,50/60Hz,0.35A

LED Light Surgical Laryngoscope Set 316 Stainless Steel Medical Portable EndoscopeLED Light Surgical Laryngoscope Set 316 Stainless Steel Medical Portable Endoscope


Xi 'an Haye Medical Equipment Co., LTD., founded in 2013, with Ding Hailiang as its legal representative, is a high-tech enterprise integrating science, industry and trade. Since its establishment, the company has been focusing on the visual medical field, and committed to the professional development and production of video laryngoscope, developed common laryngoscope, video hard mirror, video hard tube mirror, video soft mirror and other series of products.


Welcome to inquiry if you have any interests!
OEM order is acceptable.
