Specifications
Brand Name :
HAIYE MEDICAL
Model Number :
HYHJ-KC
Certification :
CE/FDA/ISO13485/ISO9001
Place of Origin :
Shaanxi China
MOQ :
1SET
Price :
900-1500USD/SET
Payment Terms :
T/T
Supply Ability :
1000sets
Delivery Time :
5-8 work days
Packaging Details :
cartoon/protective box
Product Name :
Anesthetic Video Laryngoscope
Display :
3 "TFT color screen
Resolution :
960*480
Pixels :
2 million
Camera Resolution :
1600*1200
Viewing angle :
70°± 2°
Depth of fields :
3~100mm
Rotate angle :
front to back: 0~135°, left to right: 0~275°
Warranty :
1 Year
OEM service :
Yes
OEM quantity :
50 units
Description

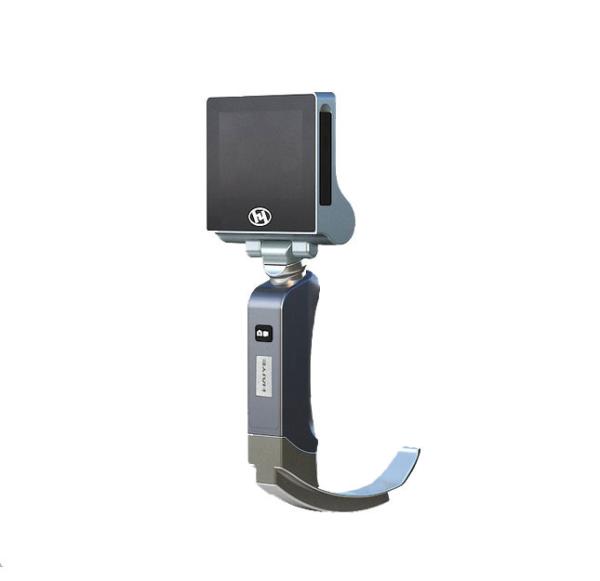

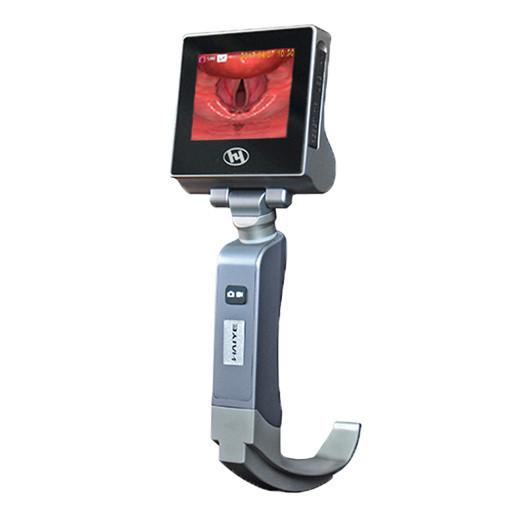

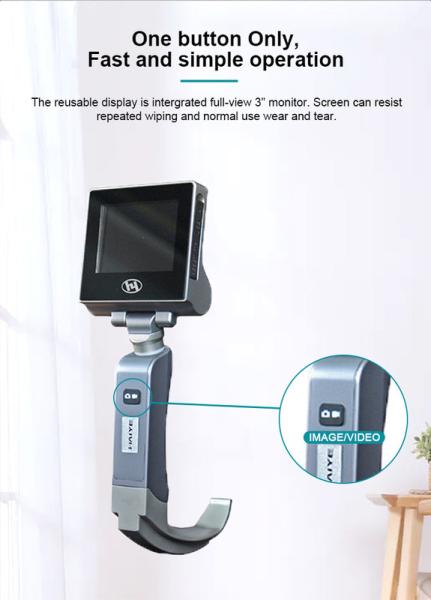

HD Camera Rigid Anesthetic Video Laryngoscope Emergency Medical Products

HYHJ-KC

  • The jacket of the HYHJ-KC Anesthetic Video Laryngoscope is made by high-grade medical metal steel, comfortable rigid handle;
  • HYHJ-KC Anesthetic Video Laryngoscope allocation is complete, five model types of replaced camera system suit for different patients, to achieve a multi-purpose machine
  • HYHJ-KC Anesthetic Video Laryngoscope digital camera system with 960 x 480 high - resolution display, make intubation easier
  • HYHJ-KC Anesthetic Video Laryngoscope is made of medical grade stainless steel, which can be used repeatedly after disinfection which reduce the cost;
  • HYHJ-KC Anesthetic Video Laryngoscope has many functions: external play, large capacity battery, photo, video, freeze frame, storage,

HD Camera Rigid Anesthetic Video Laryngoscope Emergency Medical ProductsHD Camera Rigid Anesthetic Video Laryngoscope Emergency Medical ProductsHD Camera Rigid Anesthetic Video Laryngoscope Emergency Medical ProductsHD Camera Rigid Anesthetic Video Laryngoscope Emergency Medical ProductsHD Camera Rigid Anesthetic Video Laryngoscope Emergency Medical Products

Name Technical term Technical Index

Machine

Display Resolution 960 x 480
Pixels 2 million
Camera Resolution 1600 x 1200
Viewing angle 70 ± 2 degree
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area

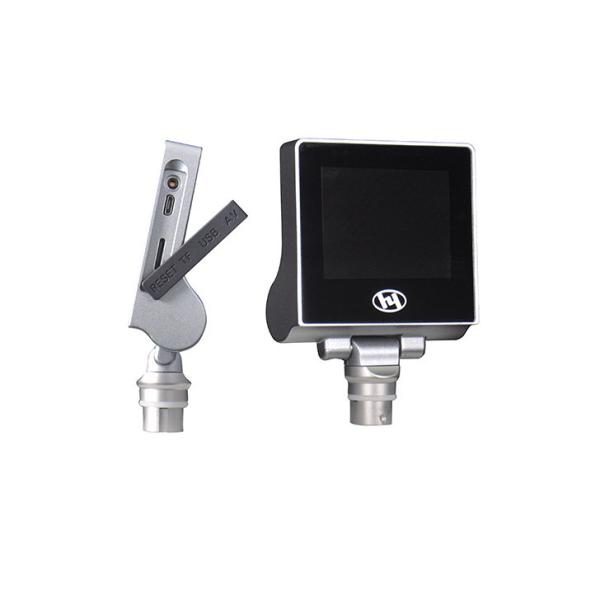

Interface USB,TF(Hot plug)
Rotate angle front to back: 135 º, left to right: 275 º
laryngoscope Blades 5 resuable blades suit for different oral structure

Powder Adapter

Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output

Battery

Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continues use ≥ 350 mins

Working Condition

Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C
Relative humidity ≤93%

What are the characteristics of anesthesia video laryngoscope?

With the medical technology's rapid development of anesthetic laryngoscope video product is used in many large comprehensive hospitals, and ent specialist hospital. The whole video laryngoscope by video image display (the host), work system composed of laryngoscope, connecting cable, charger, it can clear display oral internal image. Its operation method is

simple, less injury.

Compared with the common laryngoscope, the anesthesia video laryngoscope is designed without exposed lighting device circuit contacts, which can reduce the poor contact faults. At the same time, anesthesia video laryngoscope products are more high-performance large capacity rechargeable lithium battery, generally can be used continuously for 4 hours, more than a variety of specifications of peep tablets for your choice, can avoid cross infection.

HD Camera Rigid Anesthetic Video Laryngoscope Emergency Medical Products


Xi’an Haiye Medical Equipment (founded in July 2013) is an comprehensive medical equipment enterprise with high & new technology. Our company is committed to the visual medical fields, our indenpendently R&D vedio laryngoscope are widely used in the medical institutions’anesthesiology, emergency, ICU, pediatric, ambulance, and first aid. Xi’an Haiye always focus on the product quality mangement system, and has attained the ISO13485, ISO9001, and Europe Union CE and U.S.FDA certificate in 2018. Our vedio laryngoscope has export to many countries and regions, such as: the U.S., French, Middle East, Australia, Korea, Russia, Pakistan...


Welcome to inquiry if you have any interests!

OEM order is acceptable.
