Medical Surgical Disposable Direct Laryngoscope For Difficult Airway Intubation
Medical Surgical Disposable Direct Laryngoscope For Difficult Airway Intubation
Medical Surgical Disposable Direct Laryngoscope For Difficult Airway Intubation
Medical Surgical Disposable Direct Laryngoscope For Difficult Airway Intubation
Medical Surgical Disposable Direct Laryngoscope For Difficult Airway Intubation
Medical Surgical Disposable Direct Laryngoscope For Difficult Airway Intubation
Specifications
Brand Name :
Haiye
Model Number :
HYHJ-1330I
Certification :
CE, FDA, ISO 13485, ISO 9001
Place of Origin :
CHINA
MOQ :
1 unit
Payment Terms :
T/T
Supply Ability :
1000 units per month
Delivery Time :
5-8 days
Packaging Details :
Anti-drop PP suitcase
Material :
Metal & Plastic
Category :
Disposable
Screen size :
3 inch LCD
Tilt angle :
0 º~135 º
Rotation angle :
0 º~275 º
Led light Illuminance :
≥3000 Lux
Image/ Video :
Yes
Freeze frame :
Yes
Description

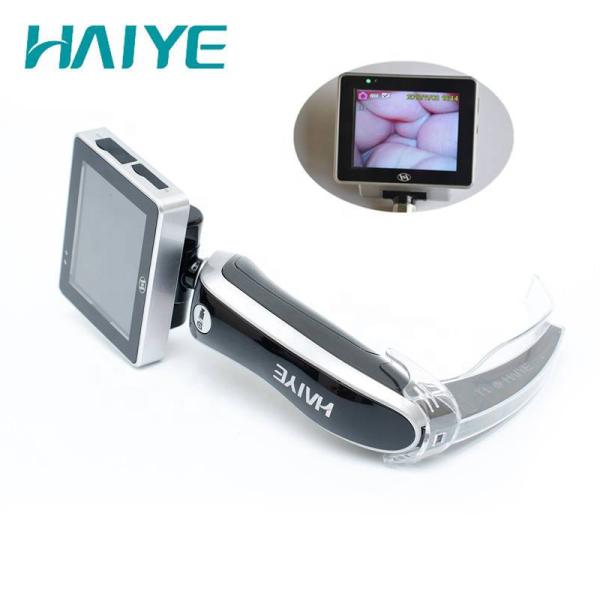

Advanced Disposable Direct Laryngoscope for Video Intubation​

Medical Direct Laryngoscope Applications

1. Clinical endotracheal intubation.

2. Simulation practice

3. Clinical teaching

4. Difficult airway intubation.

Video direct laryngoscopy (VLS) is recommended by international guidelines for the management of difficult airways.

Medical Surgical Disposable Direct Laryngoscope For Difficult Airway Intubation

Medical Direct Laryngoscope main features:

1.Clear view: Large depth of field, no blind area for intubation.

2.High resolution: 2 million pixels camera and 3" TFT clear color screen.

3.Intelligent: Built-in memory card is capable for data storage and output.

4.Faster: Unique anti-fog function, convenient and ready to use, no need for preheating.

5.Durable: High precision manufacturing process, ergonomic design handle with long service life.

6.Convenient: Portable laryngoscope with taking pictures, video recording and frame freezing function.

7.Optimization: Large capacity imported rechargeable Li battery provides up to 6 hrs continuous usage.

8.Safety: Disposable sterilized blades packaging to prevent cross infection for medical care personnel and patients.

9.Versatile: Integrated design applies for anesthesiology, ICU,emergency department and ambulance for clinical tracheal intubation.

Are you looking for a Disposable video laryngoscope?
Are you looking for a laryngoscope with disposable blades which could be applied for
anesthesia, emergency department and ICU, for clinical endotracheal intubation, simulated practice, clinical teaching etc?
How about a person help you to solve all the problems
and leave you to sit back and relax?
I am Larry from HaiyeMED: a reliable direct laryngoscope manufacturer from China.
You could email me by Larry@haiyemedical.com
or WhatsApp: +86 132 8980 5658
WHY US?
Certificates such as
CE, FDA, ISO 13485, ISO9001
are proofs of our quality.
All of the Direct Laryngoscope are
fully inspected before shipment.

Medical Direct Laryngoscope Specification:

Item No. HYHJ-1330 I
Category Disposable
Discription Medical Direct Laryngoscope
Item size:(L*W*H) 11.9*8.5*19cm
Item weight <307 g
Power <2W
Screen size 3 inch LCD
Screen resolution 960*480 pixels
Tilt angle(back/forth) 0 º~135 º
Rotation angle(left/right) 0 º~275 º
Led light Illuminance ≥3000 Lux
Camera pixels 2 Million
Viewing angle ≥70º
Depth of field 3~100mm
Camera Anti-fog Yes
Image/ Video function Yes
Freeze frame function Yes
Output USB & AV output
Memory type 8GB Micro SD card
Battery type Rechargable Li-ion
Battery capacity 3400 mAh
Continuous working time ≥6 hrs
Charging cycles >800 times
Charging time <4 hrs
Charging Port Micro USB
Input 100-240V, 50 Hz
Output 5V, 2000mA
Warranty 12 months

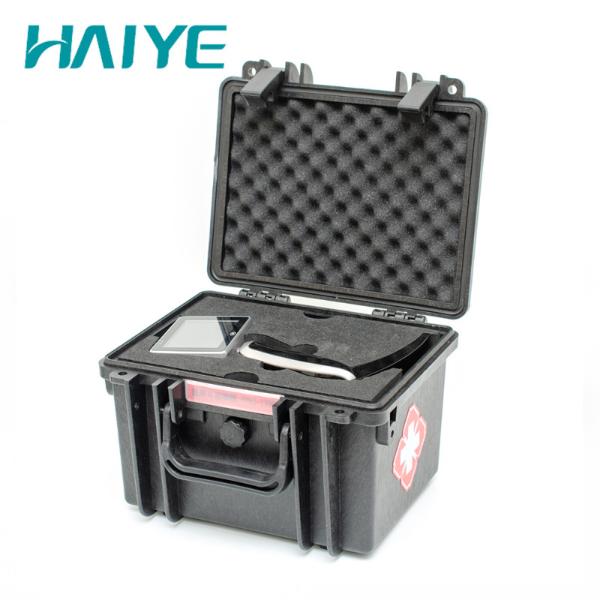

Medical Direct Laryngoscope Packaging: Anti-drop Protective case

Packaging Details : Carton, Standard export packing for video laryngoscope
Package size: 415*110*345 cm
Gross weight: 2.3 kg
Standard equipment contain :
1x Integrated machine
1x Disposable laryngoscope blades
1x Charger
1x Operation manual
1x Warranty card
Medical Surgical Disposable Direct Laryngoscope For Difficult Airway Intubation
